Запчасти Case IH C-301 (E-36) - FUEL VALVES, LP GAS ENGINE TRACTORS

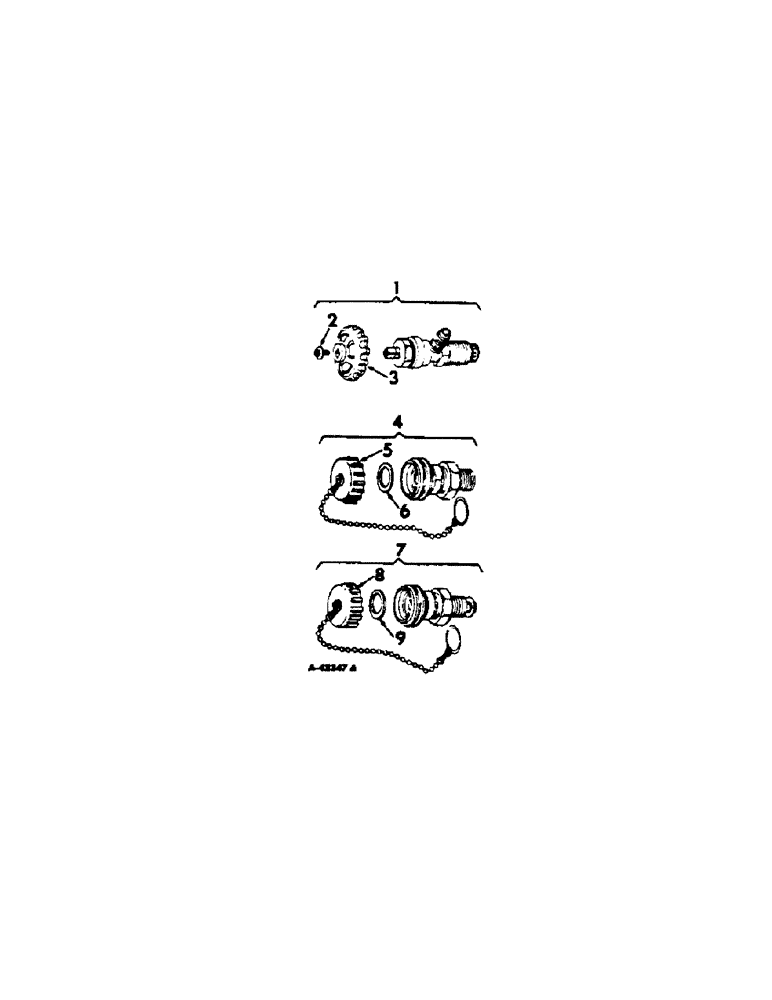

Схема запчастей Case IH C-301 - (E-36) - FUEL VALVES, LP GAS ENGINE TRACTORS
1
9
8
2
5
6
4
7
3

Артикул

Название

Примечание

Количество

1

400678R91

VALVE W/EXCESS FLOW CHECK, service, Bastian Blessing Co., optional with 376515R91

2шт.

1

376515R91

VALVE W/EXCESS FLOW CHECK, service, Fisher Governor Co., optional with 400678R91

2шт.

2

369044R91

SCREW W/WASHER, hand wheel, Fisher Governor Co.

2шт.

3

401955R1

HAND WHEEL, Bastian Blessing Co.

2шт.

401956R1

NUT, lock

2шт.

3

376523R1

HAND WHEEL, Fisher Governor Co.

2шт.

4

363688R91

VALVE ASSY, 3/4 npt filler, Bastian Blessing Co. optional with 376516R91

1шт.

4

376516R91

VALVE ASSY, 3/4 npt filler, Fisher Governor Co. optional with 363688R91

1шт.

5

369045R91

CAP W/CHAIN, valve Bastian Blessing Co.

1шт.

5

376521R91

CAP W/CHAIN, valve, Fisher Governor Co.

1шт.

6

359825R1

WASHER, cap

1шт.

7

109567R91

VALVE ASSY, vapor return, Bastian Blessing Co., optional with 376517R91

1шт.

7

376517R91

VALVE ASSY, vapor return, Fisher Governor Co., optional with 109567R91

1шт.

8

369051R91

CAP W/CHAIN, valve, Bastian Blessing Co.

1шт.

8

376519R91

CAP W/CHAIN, valve, Fisher Governor Co.

1шт.

9

359815R1

WASHER, cap

1шт.

Выбрано товаров: 16
