(E-36[A]) - FUEL FILTER, LP GAS ENGINES

Запчасти Case IH C-301 (E-36[A]) - FUEL FILTER, LP GAS ENGINES

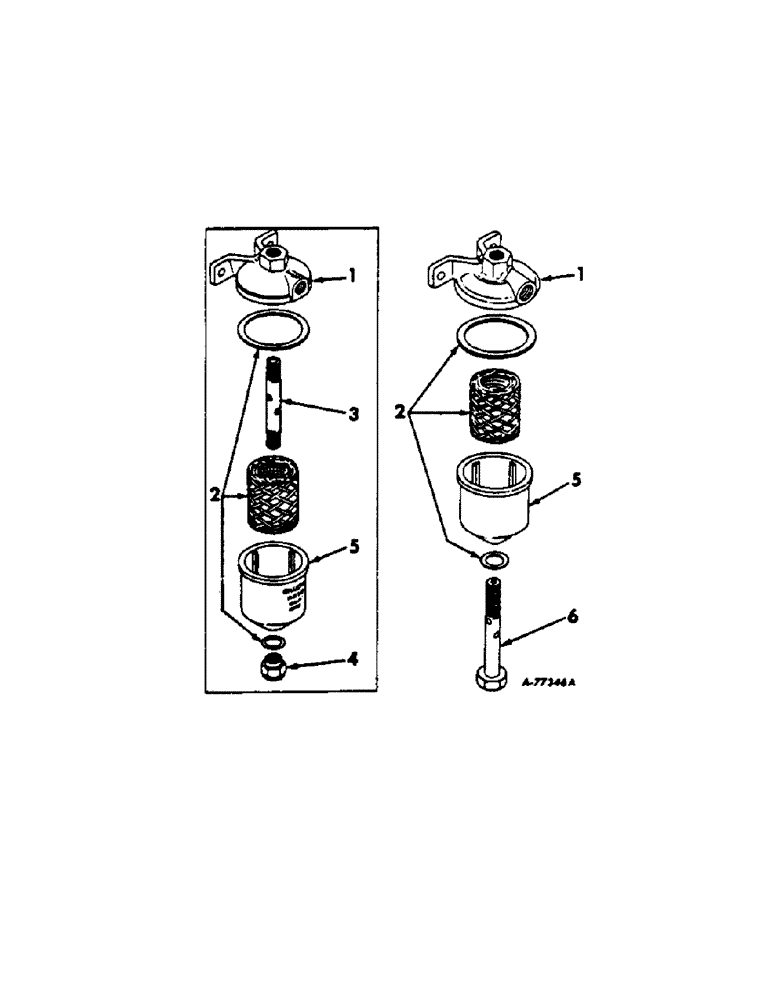

Схема запчастей Case IH C-301 - (E-36[A]) - FUEL FILTER, LP GAS ENGINES
2
5
5
6
1
1
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

346818R91

FILTER ASSY, fuel

1шт.

1

NSS

NOT SOLD SEPARAT

TOP, filter, not serviced separately, order filter assy

1шт.

2

64400DC

ELEMENT

ASSY, fuel filter

1шт.

3

64402D

STUD, filter

1шт.

4

64403D

NUT, filter stud

1шт.

5

NSS

NOT SOLD SEPARAT

BOTTOM, filter, not serviced separately, order filter assy

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT, filter bottom, not serviced separately, order filter assy

1шт.

Выбрано товаров: 7
