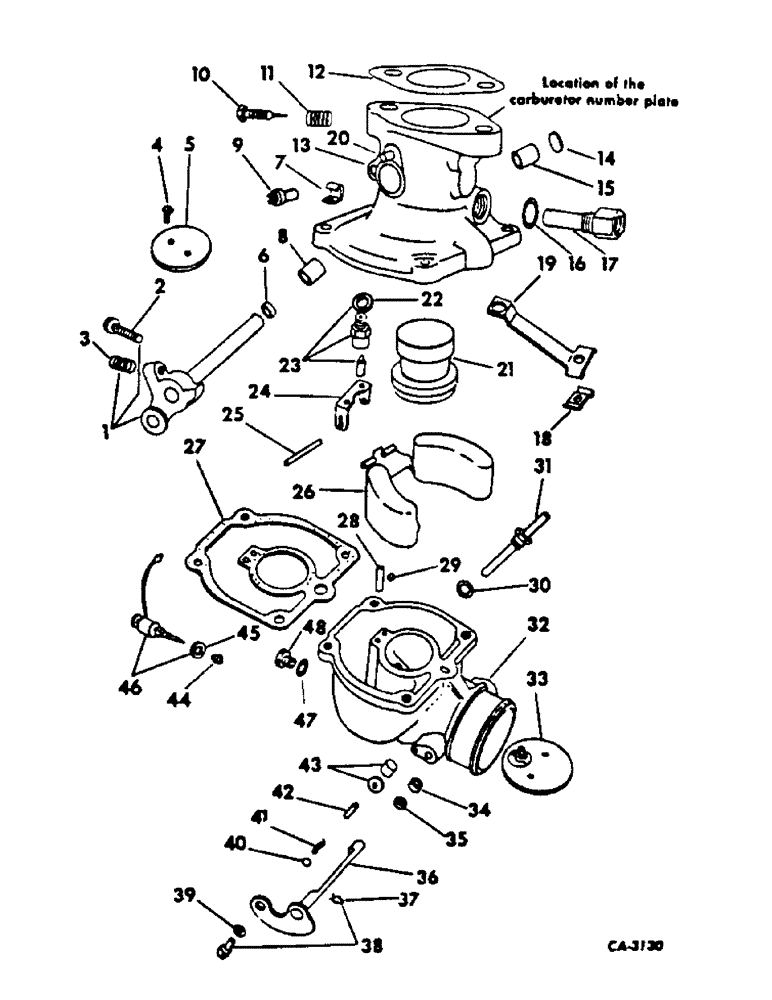

Запчасти Case IH C-301 (E-30) - CARBURETOR, IH, GASOLINE

388425R96

CARBURETOR

IH, 1-3/8 updraft, 381420R96, furnish 533622R91, less Ref. nos. 7, 12, 15 & 45

1шт.

103026

NUT,3/8"-24, G5

2шт.

533622R91

CARBURETOR, IH 1-3/8 updraft, 533621R91, replaces 388425R93, all machines except 616 and 622 cotton pickers w/gear drive and 715 combines, less Ref. nos. 7, 12, 15 & 45

1шт.

396197R93

CARBURETOR, IH 1-3/8 updraft, 397224R94, 616 and 622 cotton pickers with gear drive, less Ref. nos 7, 12, 15, 45, 46 and 47

1шт.

1

381606R91

SHAFT

& LEVER ASSY THROTTLE

1шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

THROTTLE ADJUSTMENT RETAINER

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

54489D

VALVE

BUTTERFLY, throttle

1шт.

6

SEAL, throttle shaft dust, order package 387454R93

2шт.

7

370535R1

CLIP

fuel shut off valve wire

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

530681R1

GASKET

carburetor

1шт.

13

BODY ASSY, throttle, order carburetor assembly

1шт.

14

57956D

PLUG

throttle shaft expansion, used w/carburetor 388425R96 and 533622R91, 2 used w/carburetor 396197R93

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

16

GASKET, strainer retainer, order package 387454R93

1шт.

17

29902DX

SCREEN

UNION W/STRAINER, fuel pipe, hi-duty fitting

1шт.

17

394554R11

UNION

W/STRAINER, fuel pipe, inverted flare fitting

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

no. 10-32 x 3/4 C-Z fil-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

381610R11

SUPPORT

BRACKET ASSY, starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

47407D35

VENTURI, single no. 35, used w/carburetor 388425R96 and 533622R91

1шт.

21

47407D29

VENTURI

single no. 29, used w/carburetor 396197R93

1шт.

22

GASKET, needle valve cage, order package 387454R93

1шт.

23

47396DAX40

NEEDLE

CAGE ASSY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

132631

DRIVING SPROCKET

no. 4-40 x 5/16 C-Z slt-rd-hd mach

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

& LEVER ASSY

1шт.

27

GASKET, fuel bowl, order package 387454R93

1шт.

28

49798D70

JET

idle metering no. 70

1шт.

29

35606D50

BLEED, main air no. 50, used w/carburetor 388425R96 and 533622R91

1шт.

29

35606D44

VALVE

BLEED, main air no. 44, used w/carburetor 396197R93

1шт.

30

GASKET, metering nozzle, order package 387454R93

1шт.

31

384024R1

NOZZLE CAP

NOZZLE, metering, used w/carburetor 388425R96 & 533622R91

1шт.

31

383504R1

NOZZLE INJECTION

NOZZLE, metering, used w/carburetor 396197R93

1шт.

32

BOWL ASSY, fuel, order carburetor assembly

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 automotive sq-hd pipe

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 x 7/8 C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

357002R12

SHUTTER

ASSEMBLY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6-32 x 1/4 C-Z slt-rd-hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

34

SEAL, butterfly dust, order package 387454R93

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

382926R91

SHAFT & LEVER ASSY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd mach

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSEMBLY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

397077R1

JET, main metering .070, replaces 384023R1, used w/carburetor 388425R96

1шт.

44

533623R1

JET, main metering .065, used w/carburetor 533622R91

1шт.

44

376440R1

BIT

JET, main metering .054, used w/carburetor 396197R93

1шт.

45

107645C1

WASHER

GASKET, fuel shut-off valve

1шт.

46

71425C91

PACKAGE, fuel shut-off solenoid valve, replaces 384818R94

1шт.

47

362526R1

GASKET

fuel adjusting plug, used with carburetor 533622R91

1шт.

48

362525R1

PLUG

fuel adjusting, used with carburetor 533622R91

1шт.

387454R93

PACKAGE

carburetor gasket

1шт.

387459R92

PACKAGE

carburetor overhaul

1шт.
