Запчасти Case IH C-301 (E-28) - CARBURETOR, IH, 453 AND 715 COMBINES

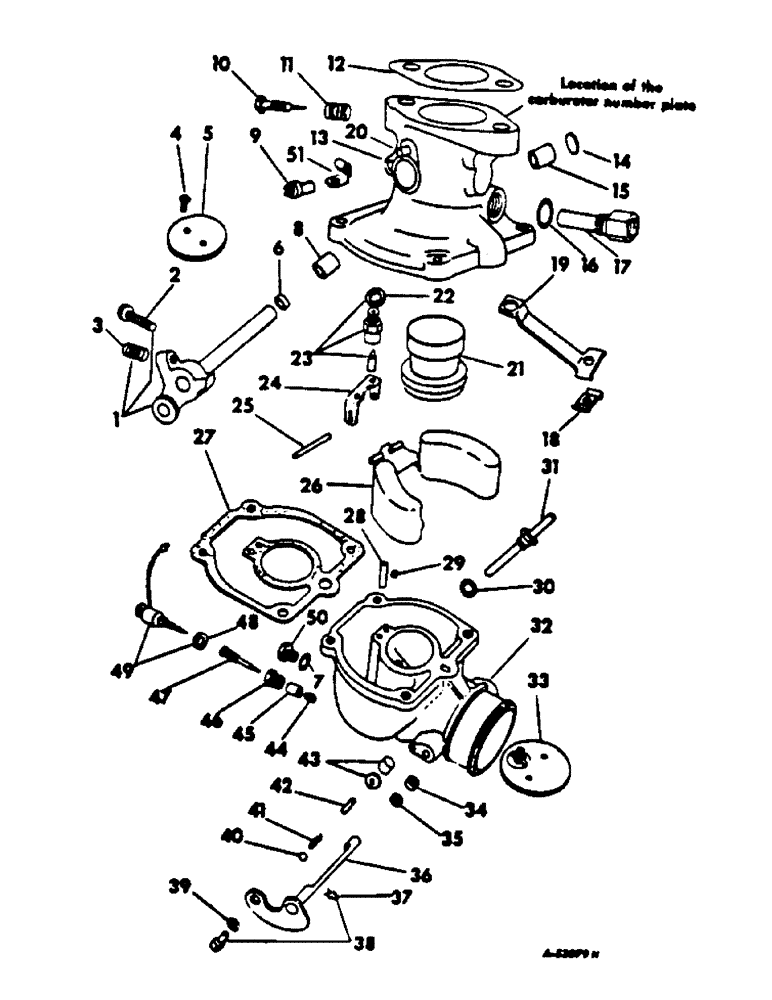

Схема запчастей Case IH C-301 - (E-28) - CARBURETOR, IH, 453 AND 715 COMBINES
47
30
3
35
21
45
44
10
25
48
38
17
46
24
5
40
3
33
32
51
49
43
14
50
6
19
36
42
27
23
31
41
12
26
2
9
37
13
15
16
20
11
1
22
4
28
29
7
18
39
34

Артикул

Название

Примечание

Количество

534933R91

CARBURETOR

ASSY, 1-3/8 updraft, less Ref. nos. 12, 48 & 49

1шт.

103026

NUT,3/8"-24, G5

2шт.

109371

SCREW, no. 0 x 3/16 pln r/hd drive

1шт.

1

368139R91

SHAFT

AND LEVER ASSY, throttle

1шт.

2

132128

SCREW, throttle and shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

idler throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

54489D

VALVE

BUTTERFLY, throttle

1шт.

6

SEAL, throttle shaft dust, order package 387454R93

2шт.

7

362526R1

GASKET

fuel adjusting

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjustment screw retainer

1шт.

12

530681R1

GASKET

carburetor, not included in carburetor assy

1шт.

13

BODY ASSY, throttle, order carburetor assembly

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

16

GASKET, strainer screen retainer, order package 387454R93

1шт.

17

29902DX

SCREEN

UNION W/STRAINER, fuel pipe

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

10-32 x 3/4 C-Z slt-fil-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

368146R11

SUPPORT

BRACKET W/CLAMP, 32956D and hardware starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

47407D35

VENTURI, single

1шт.

22

GASKET, needle valve cage, order package 387454R93

1шт.

23

47396DAX40

NEEDLE

CAGE ASSY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86982776

SCREW,Rd, #4 - 40 x 5/16"

4-40 x 5/16 cd or zn pltd slt-rd-hd mach

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

AND LEVER ASSY

1шт.

27

GASKET, fuel bowl, order package 387454R93

1шт.

28

79798D70

JET, idle metering #70

1шт.

29

35606D50

BLEED, main air

1шт.

30

GASKET, metering nozzle, order package 387454R93

1шт.

31

384024R1

NOZZLE CAP

NOZZLE, metering

1шт.

32

BOWL ASSY, fuel, order carburetor assembly

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 C-Z sq-hd pipe

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

357002R12

SHUTTER

ASSY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

6-32 x 1/4 C-Z slt-rd-hd mach

2шт.

492-11006

LOCK WASHER,#6

Lock, #6

2шт.

34

SEAL, choke shaft dust, order package 387454R93

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

352642R91

LEVER

SHAFT AND LEVER ASSY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 x 3/8 C-Z fil-hd mach

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutte stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

379077R1

SEAT

JET, main metering, .070

1шт.

45

PACKING, fuel adjusting screw, order package 387454R93 and plug 362525R1

1шт.

Used only on carburetors w/o fuel shut off.

1шт.

46

NUT, fuel adjusting screw packing, order package 387454R93 and plug 362525R1

1шт.

Used only on carburetors w/o fuel shut off.

1шт.

47

SCREW, fuel adjusting, order package 387454R93 and plug 362525R1

1шт.

Used only on carburetors w/o fuel shut off.

1шт.

REF #47 FUEL ADJUSTING SCREW IS NOT IN PKG 387454R93. IT IS IN THE REBUILD PKG. 387455R92, AND IS ALSO AVAILABLE SEPERATELY AS PART NUMBER 374327R1. 12/4/96 HW.

1шт.

48

107645C1

WASHER

GASKET, fuel shut-off valve

1шт.

49

71425C91

PACKAGE, fuel shut-off solenoid valve, replaces 384818R94

1шт.

50

362525R1

PLUG

fuel adjusting

1шт.

51

370535R1

CLIP

fuel shut-off valve wire

1шт.

387454R93

PACKAGE

carburetor gasket

1шт.

387455R92

PACKAGE

carburetor overhaul

1шт.

Выбрано товаров: 71
