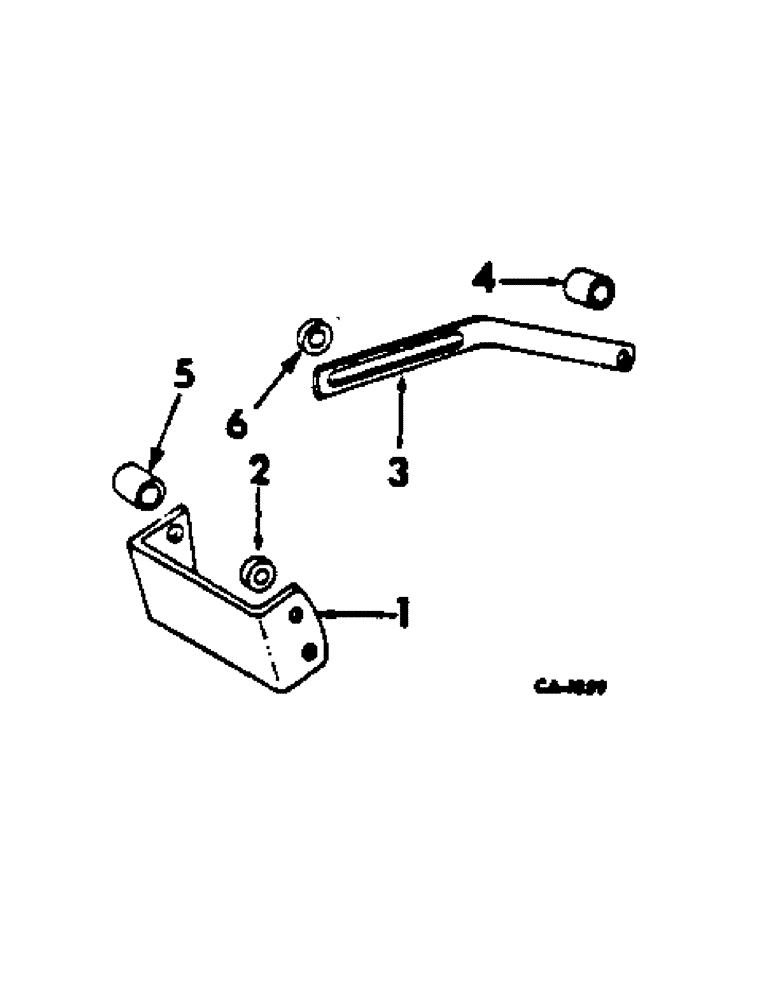

Запчасти Case IH C-301 (E-26) - ALTERNATOR-GENERATOR MOUNTING

1

384991R1

SUPPORT

BRACKET, alternator generator mounting, machines w/out air conditioning

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

1

395454R1

BRACKET, alternator generator mounting, machines with air conditioning

1шт.

102635

NUT,3/8"-16, G5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

443114

SCREW, 3/8-16 x 4-1/4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

384992R1

SPACER

alternator generator mounting bracket, short

1шт.

3

371107R2

SUPPORT

BRACE, alternator generator, 826, 856 tractors 715 combines with serial no. 4913 and below, 616 and 622 gasoline engine cotton pickers with engine serial no. 6021 and above and 616 and 622 LP gas engine cotton pickers

1шт.

3

384994R2

BRACE

alternator generator, 715 combines with serial no. 4914 and above, 616 and 622 gasoline engine cotton pickers with engine serial no. 6020 and below and 453 combines

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

alternator brace

1шт.

5

384993R1

SPACER

alternator generator mounting

1шт.

6

280185R1

SPACER

alternator generator brace

1шт.
