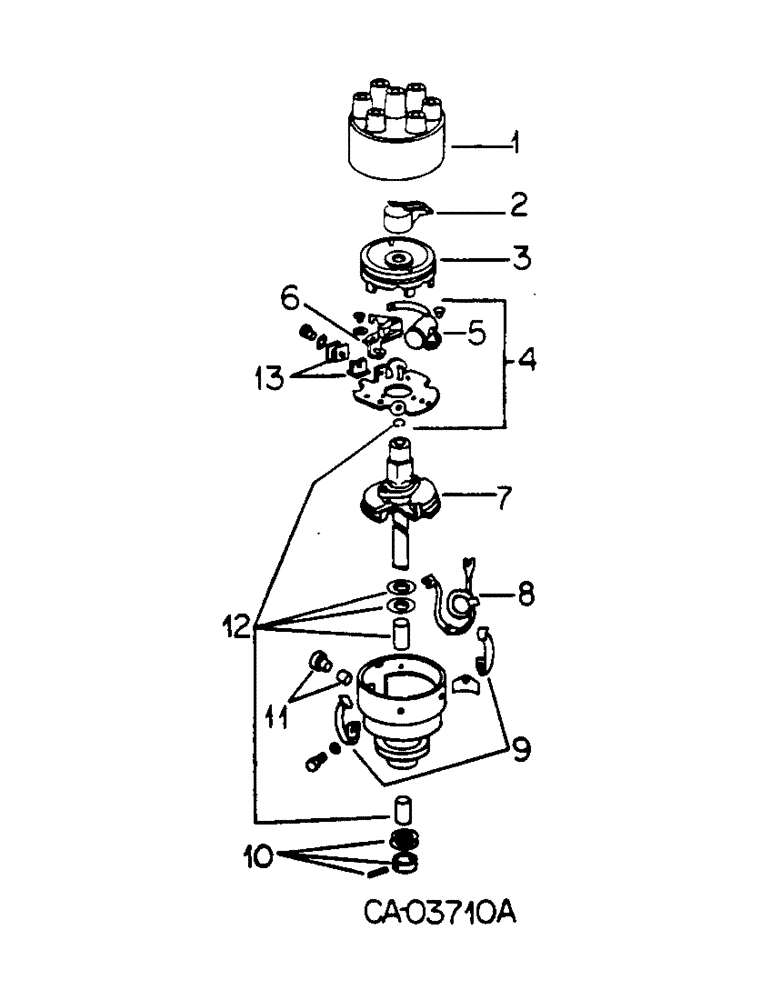

Запчасти Case IH C-301 (E-24) - DISTRIBUTOR

68830C91

DISTRIBUTOR

ASSY, 616 and 622 cotton pickers, 453 and 715 combines

1шт.

1

69093C1

CAP

ASSY

1шт.

2

532034R1

ROTOR

1шт.

3

531449R1

COVER

ASSY, dust

1шт.

4

531453R92

PLATE

ASSY, breakaway, consists of Ref. nos 5, 6, 8, and 13

1шт.

5

531455R1

PACKAGE

condenser

1шт.

6

531456R1

SET

contact breaker

1шт.

7

64856C1

SHAFT

WITH WEIGHTS, springs and cam drive, replaces 69094C1, 531443R1, 539936R1 and 60097C1

1шт.

8

69096C1

CABLE

LEAD ASSY, primary

1шт.

9

531446R1

PACKAGE

cap clamp, spring and hinge

1шт.

10

531460R91

PACKAGE

shaft collar

1шт.

11

539934R1

PACKAGE

oiler plug and wick

1шт.

12

531459R91

BEARING

PACKAGE, shaft bearing

1шт.

13

539933R1

KIT

PACKAGE, clip and insulator

1шт.
