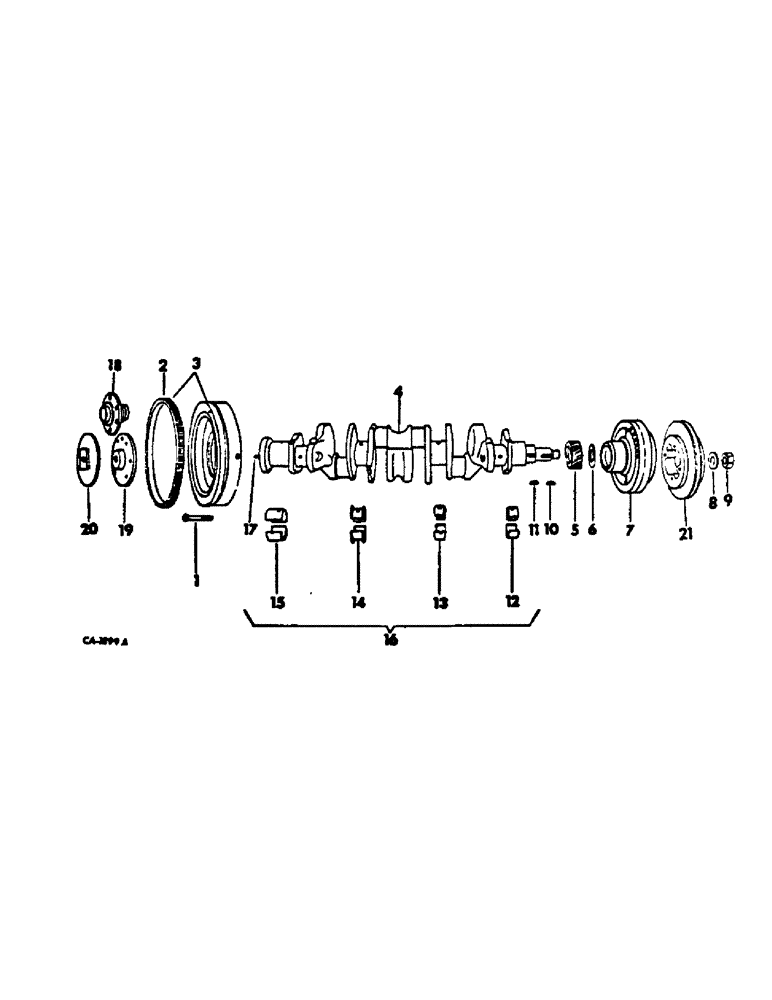

Запчасти Case IH C-301 (E-16) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

19466R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

7/16-20 x 1-3/4 hex. lkg, used w/flywheel 378614R31 and 377945R11

6шт.

1

19370R1

BOLT, flywheel mounting, used w/flywheel 396455R11

6шт.

2

381127R1

PINION

GEAR, flywheel ring, 165T, used w/flywheel 378614R31

1шт.

2

367507R1

GEAR

flywheel ring, 160T, used w/flywheel 396455R11

1шт.

2

95691H

GEAR

flywheel ring, used w/flywheel 377945R11

1шт.

3

378614R31

FLYWHEEL ASSEMBLY, 826, 856, 2826 tractors

1шт.

3

396455R11

FLYWHEEL ASSEMBLY, 616 and 622 cotton pickers

1шт.

3

377945R11

FLYWHEEL ASSEMBLY, 453 and 715 combines

1шт.

4

382356R91

CRANKSHAFT

ASSY, std, consists of (1) bearing assy 367276R91, (1) bearing assy 367279R91, (1) bearing assy 332267R91, (1) bearing assy 367285R91, (6) bearing assy 367408R11, (1) crankshaft (NSS), (1) pin 82970R1

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338952R91

PULLEY

DAMPER & PULLEY ASSEMBLY, 856 and 2856 tractors

1шт.

7

702136C1

DAMPER

& PULLEY ASSEMBLY, 826 and 2826 tractors

1шт.

7

338949R91

DAMPER

& PULLEY ASSEMBLY, 616 and 622 cotton pickers, 715 combines with engine serial no. 14132 and below and 453 combines

1шт.

7

534273R1

DAMPER & PULLEY ASSEMBLY, 715 combines with engine serial no. 14133 and above

1шт.

8

70109R1

WASHER

crankshaft nut

1шт.

9

425-1516

JAM NUT,Jam, 1"-14, G5

1-14 hex. jam crankshaft

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, damper and pulley

1шт.

11

103462

KEY

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate front, 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .002 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

16

382357R91

CRANKSHAFT BEARING

NOT SUPPLIED IN SETS, furnish individual bearing assy.

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel, all machies except 453 and 715 combines

1шт.

17

277981R1

PIN, flywheel to crankshaft dowel, 453 and 715 combines

1шт.

18

396456R1

HUB

drive flange, 616 and 622 cotton pickers

1шт.

19

377944R1

FLANGE

drive shaft, 715 combines w/belt drive

1шт.

20

389667R11

HUB

FLANGE ASSY, drive shaft, 453 and 715 combines with hydrostatic transmission

1шт.

21

533839R1

PULLEY, water pump drive, 715 combines with serial no. 4913 and below

1шт.

21

673191R1

PULLEY, radiator fan drive, 616 and 622 cotton pickers with belt drive

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

674696R1

PULLEY, radiator fan drive, 616 and 622 cotton pickers with hydrostatic transmission

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

57224C1

PULLEY, fan drive

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
