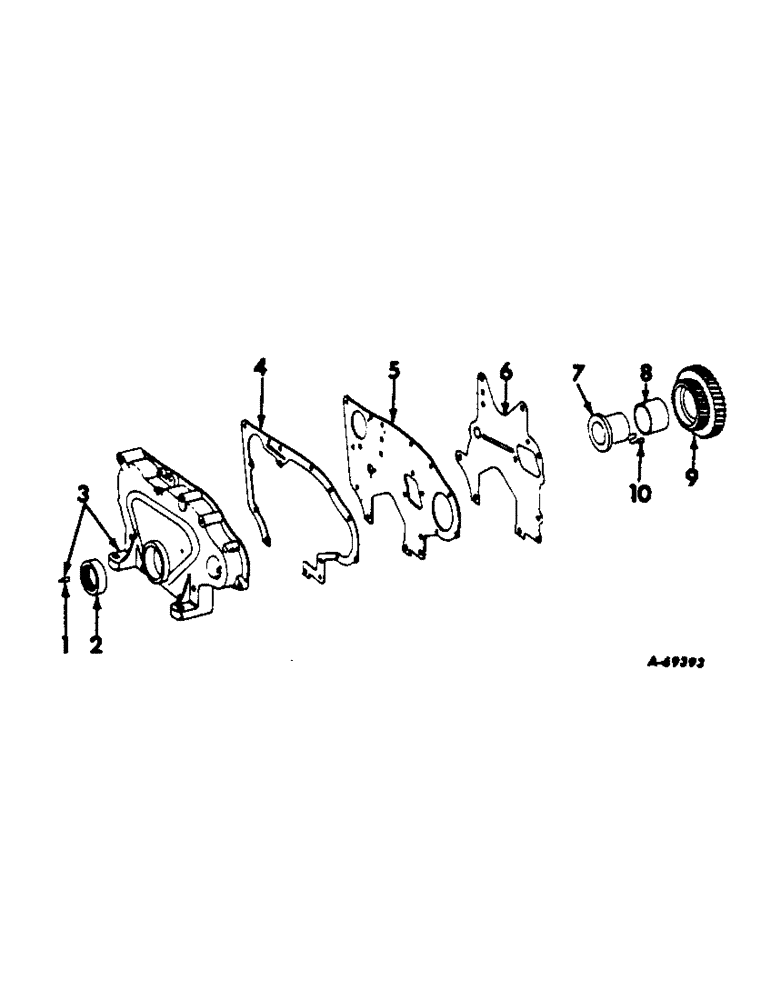

Запчасти Case IH C-301 (E-14) - CRANKCASE FRONT COVER AND IDLER GEAR, 453 AND 715 COMBINES

1

367572R1

INDICATOR

POINTER, timing

2шт.

2

391976R91

OIL SEAL

crankshaft oil

1шт.

3

378236R31

COVER ASSY, crankcase front

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

4

378237R1

GASKET

crankcase front cover

1шт.

5

378238R3

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

398024R1

GASKET

crankcase front plate

1шт.

7

530973R1

HOUSING

HUB, idler gear

1шт.

179887

CABLE

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

8

398034R1

BUSHING

idler gear

1шт.

9

398032R1

PINION

GEAR ASSEMBLY, idler w/bushing

1шт.

10

Not used in this application

1шт.
