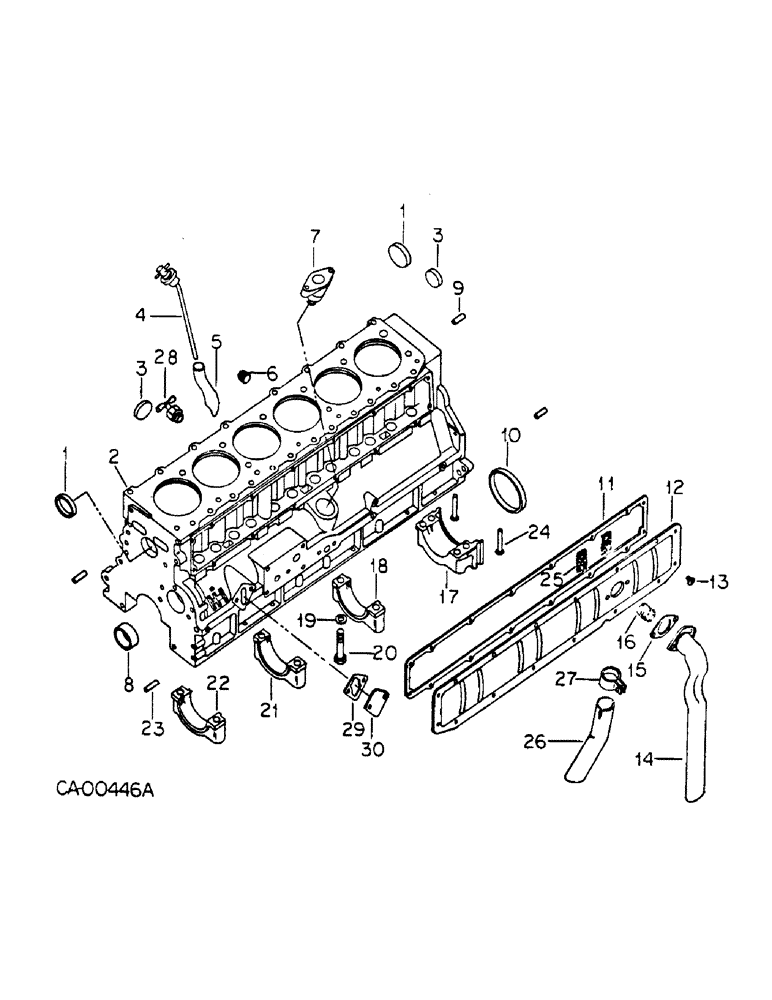

Запчасти Case IH C-301 (E-12) - CRANKCASE AND RELATED PARTS

1

20840R1

PLUG,Cup, 2", Stainless

core hole

2шт.

2

CRANKCASE ASSY, order skeleton service engine

1шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8-27 auto hex-soc-hd

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 sq-soc pipe

2шт.

3

379278C1

PLUG

core hole

6шт.

4

381427R93

GAUGE ASSY.

CAGE ASSY, oil level, all machines except 453 and 715 combines

1шт.

4

368986R91

GAUGE ASSY.

CAGE ASSY, oil level, 715 combines w/engine serial no. 12069 and below

1шт.

4

387347R91

GAUGE

CAGE ASSY, oil level, 715 combines w/engine serial no. 12070 and above and 453 combines

1шт.

5

381418R1

TUBE

oil filler, all machines except 453 and 715 combines

1шт.

5

368985R2

TUBE

oil filler, 715 combines w/engine serial no. 12069 and below

1шт.

5

387102R1

TUBE, oil filler, 715 combines w/engine serial no. 12070 and above and 453 combines

1шт.

6

FO444618

PLUG

1/4-18 auto hex-hd pipe

1шт.

7

367513R2

ADAPTER

distributor mounting

1шт.

8

70259R2

BUSHING

camshaft front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

camshaft intermediate front

1шт.

8

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

camshaft intermediate rear

1шт.

8

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BUSHING, camshaft rear

1шт.

9

371699R2

STUD

DOWEL, engine rear support

2шт.

9

376353R1

DOWEL, engine rear support, .030 O/S

2шт.

10

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

crankshaft rear oil

1шт.

11

369982R1

GASKET

valve push rod cover

1шт.

12

315970R91

PLATE ASSY.

COVER, w/two elements, 315849R1 valve push rod

1шт.

13

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW W/WASHER, 1/4-20 x 1/2 slt-truss-hd

16шт.

14

368429R31

VENTILATION PIPE

PIPE ASSEMBLY, breather

1шт.

374587R91

SCREW W/WASHER, 1/4-20 x 1/2 slt-rd-hd

2шт.

15

369981R1

GASKET

breather pipe

1шт.

16

369442R1

ELEMENT

breather pipe

1шт.

17

306674R1

CAP, crankshaft rear bearing, partially finished see service manual

1шт.

18

306673R1

CYLINDER END CAP

CAP, crankshaft rear intermediate bearing, partially finished see service manual

1шт.

19

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

bearing cap bolt

10шт.

20

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

21

306672R1

CYLINDER END CAP

CAP, crankshft front intermediate bearing, partially finished see service manual

1шт.

22

306672R1

CYLINDER END CAP

CAP, crankshaft front bearing, partially finished see service manual

1шт.

23

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/4 dowel

2шт.

24

310665R1

PLUG

rear bearing cap filler

2шт.

25

315849R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional w/349363R1

2шт.

25

349363R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional w/315849R1

2шт.

26

376354R1

EXTENSION, breather pipe, 826, 856, 2826 tractors

1шт.

27

376355R1

CLAMP

breather pipe extension, 826, 856, and 2826 tractors

1шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

28

103647

VALVE

COCK, 1/4 drain

1шт.

29

532469R1

GASKET, fuel pump cover

1шт.

30

70749C1

COVER, fuel pump pad

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

5/16 x 1/2 pln type 5

2шт.

113911

SCREW, 5/16 x 1/2 pln f/hds mach

2шт.
