(E-10) - ADJUSTER ASSEMBLY, 715 COMBINES WITH SERIAL NO. 4913 & BELOW AND 453 COMBINES

Запчасти Case IH C-301 (E-10) - ADJUSTER ASSEMBLY, 715 COMBINES WITH SERIAL NO. 4913 & BELOW AND 453 COMBINES

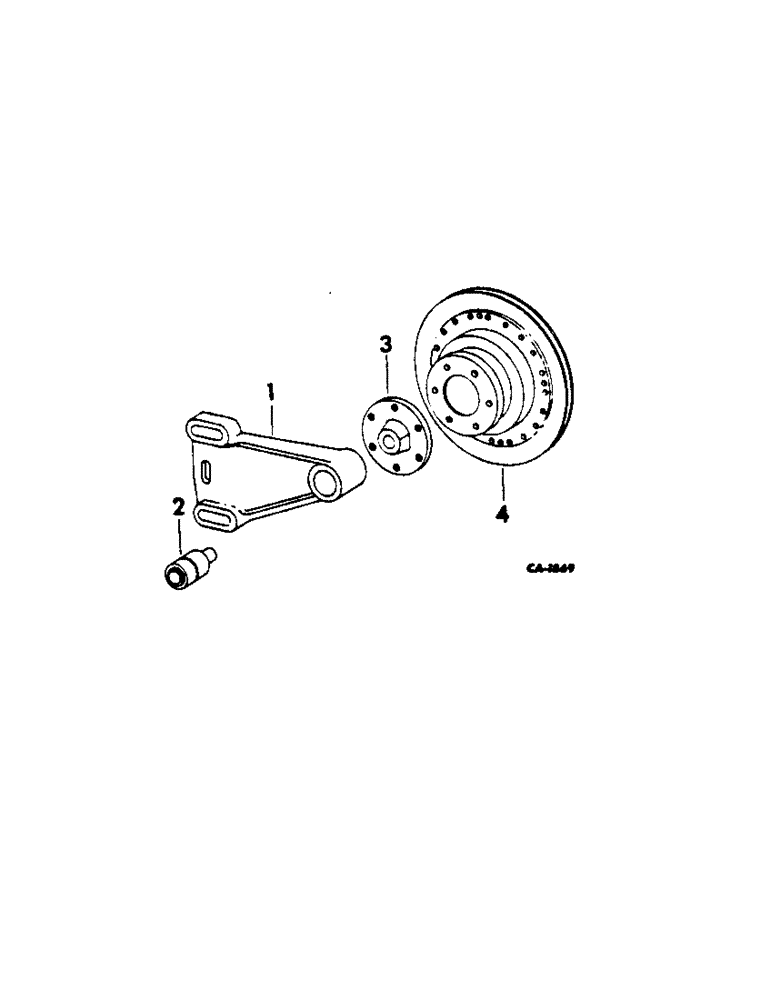

Схема запчастей Case IH C-301 - (E-10) - ADJUSTER ASSEMBLY, 715 COMBINES WITH SERIAL NO. 4913 & BELOW AND 453 COMBINES
3
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

533837R91

ADJUSTER

ASSY, fan pulley

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

533840R91

SHAFT

AND BEARING ASSEMBLY

1шт.

3

607328C11

HUB

fan pulley

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

671807C1

PULLEY

fan and water pump

1шт.
