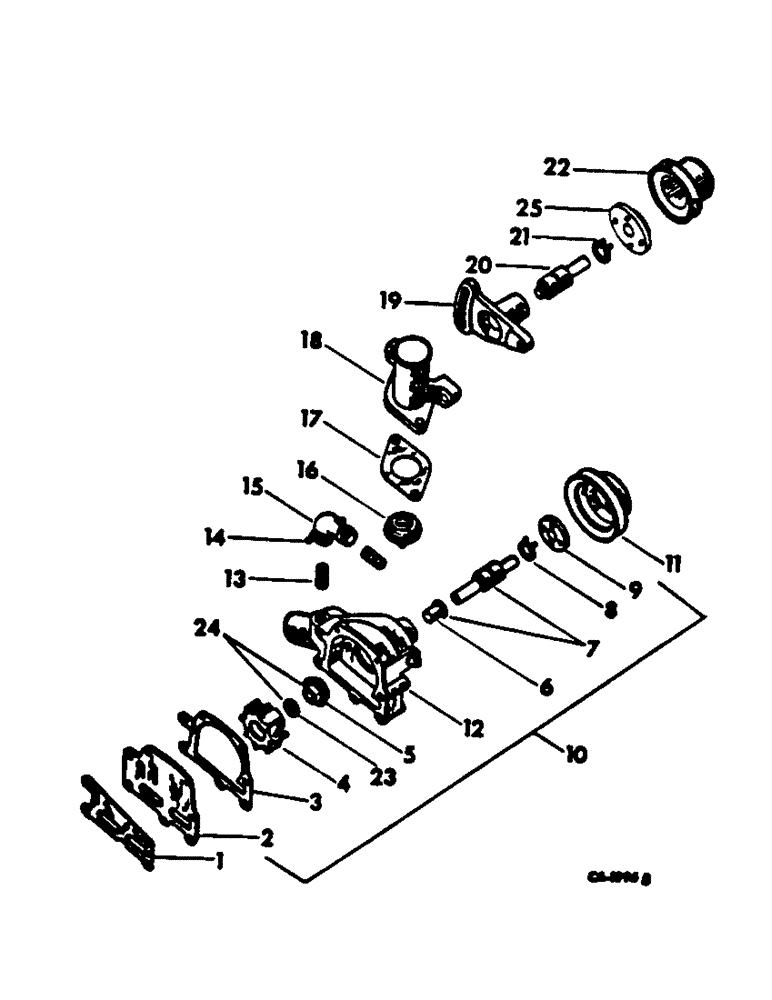

Запчасти Case IH C-291 (D-08) - THERMOSTAT AND WATER PUMP

1

69676R1

GASKET

GASKET, water pump

1шт.

2

69675R1

PLATE

PLATE, water pump

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW, 1/4 x 1/2 pln r/hds mach

3шт.

3

69674R1

GASKET

GASKET, water pump plate

1шт.

4

387931R1

TORQ CONV IMPELLER

IMPELLER, water pump

1шт.

5

73296R93

SEAL

SEAL, water pump

1шт.

6

71351R1

SLINGER

SLINGER, water pump

1шт.

7

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT & BEARING ASSY, water pump, will work for ST680

1шт.

8

395816R1

RING

RING, retaining, used w/water pump body casting number 169204R2

1шт.

8

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with water pump body casting number 169204R3 1.188", Int, #118

1шт.

9

368501R2

HUB CAP

HUB, pulley

1шт.

10

601816C92

PUMP

PUMP ASSEMBLY, water

1шт.

Consists of, (1) body (NSS), (1) gasket 69674R1, (3) screw 113955, (1) hub 368501R2, (2) plug 438159, (1) plug 444660, (1) plug 44786, (1) slinger 71351R1, (1) seal 73296R93, (1) seat 684432C1, (1) impeller 387931R1, (1) plate 69675R1, (1) ring 327316R1, (1) shaft and brg assy 376602R91

1шт.

10

749170C91

REMAN-WATER PUMP

Remanufactured, Water Pump

1шт.

10

1928129C1

CORE-WATER PUMP

Return Part Number

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/4", G5

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

259207R1

WASHER

WASHER, flat

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

BOLT, 3/8 x 3-1/2 pln type 5

1шт.

11

395814R1

PULLEY

PULLEY, water pump, optional with 395815R2

1шт.

11

395815R2

PULLEY

PULLEY, water pump, optional with 395814R1

1шт.

181309

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

SCREW, 1/4-28 x 1/2 hex-hd cap

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

12

NSS

NOT SOLD SEPARAT

BODY W/PLUG, water pump, not serviced separately furnish pump assy

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd pipe LP gas

1шт.

13

169193R1

PIPE

NIPPLE, water by-pass, gasoline

2шт.

14

240369R91

SPARE PART CLAMP, hose, gasoline

2шт.

15

169192R1

HOSE

ELBOW, water by-pass, gasoline

1шт.

16

108120R92

THERMOSTAT

THERMOSTAT, 167-172 degree opening, all machines except 616 and 622 cotton pickers

1шт.

17

368505R1

GASKET

GASKET, water outlet

1шт.

18

368504R1

OUTLET

OUTLET, water, all machines except 616 and 622 cotton pickers

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

SCREW, 7/16-14 x 1-1/2 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

19

609400C1

ADJUSTER

ADJUSTER, fan pulley

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

106264

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

WASHER, 1/2 x 1-1/4 x .083

2шт.

20

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

SHAFT AND BEARING ASSEMBLY

1шт.

21

102069H

RING

RING, retaining, used w/water pump casting number 169204R2

1шт.

21

327316R1

SNAP RING,1.188", Int, #118

Ring, Snap, , used with water pump casting number 169204R3 1.188", Int, #118

1шт.

22

378609R1

PULLEY

PULLEY, fan, all machine except 666, 70 and 86 hydrostatic drive tractors

1шт.

22

406604R1

SPARE PART PULLEY, fan, 666, 70 and 86 hydrostatic drive tractors

1шт.

23

684432C1

SEAT/SLOT

SEAT, water pump, replaces 265164C91

1шт.

24

PACKAGE, water pump seal, furnish seat, 684432C1 and seal assy 73296R93

1шт.

25

368501R2

HUB CAP

HUB, pulley, 666, 70 and 86 hydrostatic drive tractors

1шт.

374544R94

KIT

PACKAGE, water pump service

1шт.
