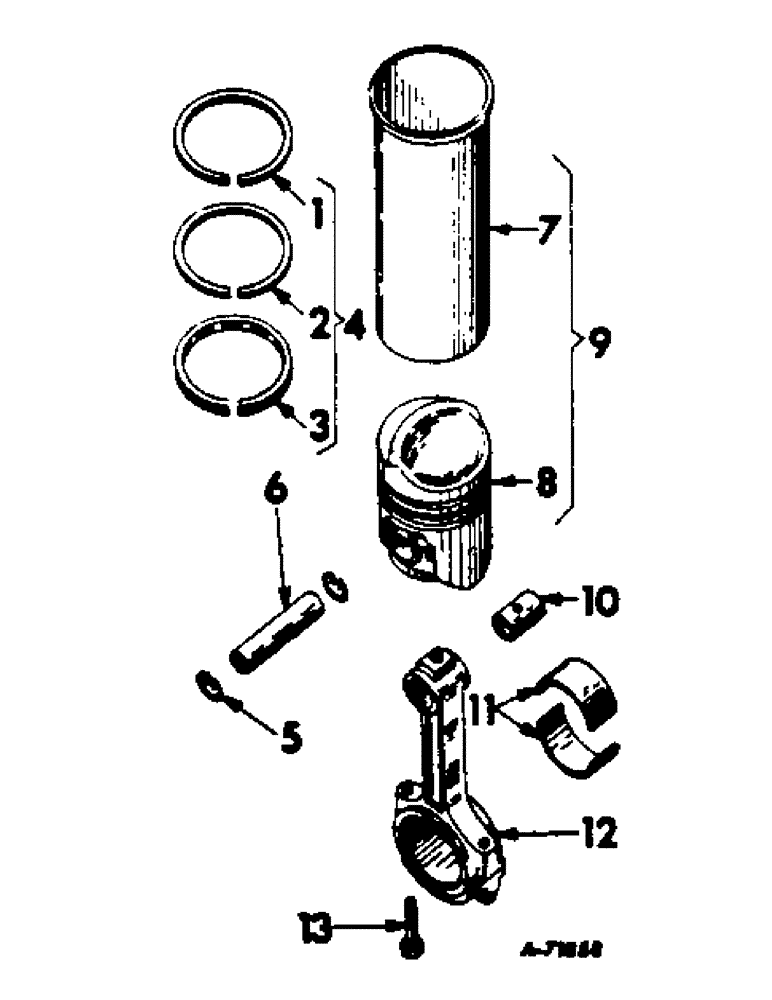

Запчасти Case IH C-291 (D-07) - CONNECTONG RODS AND SLEEVE SETS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

6шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

6шт.

3

NSS

NOT SOLD SEPARAT

RING, oil piston third or bottom groove, not serviced separately, order piston ring set

6шт.

4

539786R1

SET

RING SET, piston, std and .010 O/S, optional w/73230C1, consists of two compression and one oil ring

1шт.

4

73230C1

RING, SET

RING SET, piston, std and .010 O/S, optional w/539786R1, consists of two compression and one oil ring

1шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

6

278271R1

PISTON PIN

PIN, piston

6шт.

6

278326R1

PIN

piston, .005 O/S

6шт.

7

SLEEVE, cylinder, order sleeve, piston & rings assy, for proper fuel & altitude

1шт.

8

PISTON, order sleeve, piston & rings assy, for proper fuel and altitude

6шт.

9

395354R92

SET

SLEEVE ASSY, cylinder, for bore classification markings 1 or 2, note, consists of, (1) piston (NSS), (1) sleeve (NSS), (1) pin 278271R1, (2) ring 19517D, (1) ring set 539786R1

6шт.

9

395356R92

PISTON ASSY.

SLEEVE ASSY, cylinder, for bore classification markings 2 or 3, note, consists of, (1) piston (NSS), (1) sleeve (NSS), (1) pin 278271R1, (2) ring 19517D, (1) ring set 539786R1

6шт.

9

395363R92

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, high altitude, for bore classification markings 1 or 2, note, consists of, (1) piston (NSS), (1) sleeve (NSS), (1) pin 278271R1, (2) ring 19517D, (1) ring set 539786R

6шт.

9

395364R92

SLEEVE CYLINDER

SLEEVE ASSY, cylinder, high alitutde, for bore classification markings 2 or 3, note, consists of, (1) piston (NSS), (1) sleeve (NSS), (1) pin 278271R1, (2) ring 19517D, (1) ring set 539786R1

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

12

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364931R1, connecting

6шт.

13

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod

12шт.
