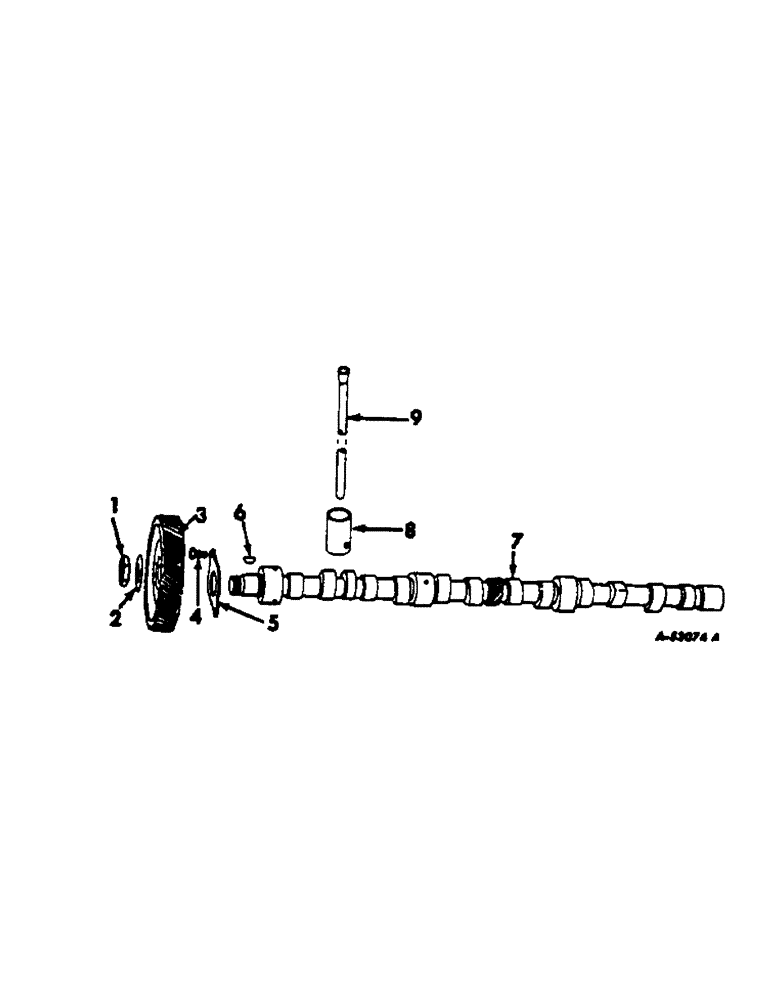

Запчасти Case IH C-291 (D-06) - CAMSHAFT AND RELATED PARTS

1

16026DB

NUT

camshaft gear

1шт.

2

16025D

SHIM

LOCK, camshaft gear unit

1шт.

3

367240R1

PINION

GEAR, camshaft

1шт.

4

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

5

35650HA

FLANGE

PLATE, camshaft thrust

1шт.

6

127559

TAPE

1/4 x 3/4 Woodruff no. 91, camshaft gear

1шт.

7

367229R1

SHAFT

CAMSHAFT

1шт.

8

684729C1

TAPPET

valve, replaces 75524R3 and 911776R3, optional w/tappet 911776R3

1шт.

9

164436R91

PUSH ROD

ROD, valve push

12шт.
