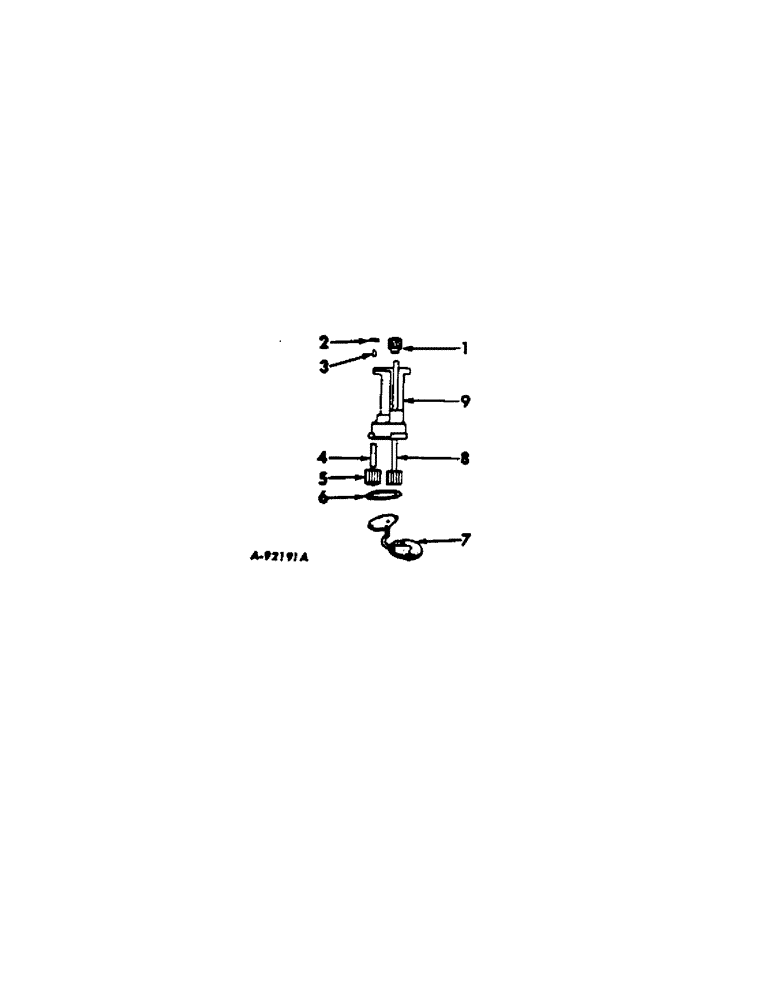

Запчасти Case IH C-291 (D-45) - OIL PUMP, INTAKE AND EXHAUST SYSTEM

379138R91

PUMP, ENGINE OIL

PUMP ASSEMBLY, oil

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

69608R3

PINION

GEAR, oil pump drive

1шт.

2

112011

PIN,1/8" x 7/8"

pump drive gear, optional w/877422R1

1шт.

2

877422R1

PIN, pump drive gear, optional w/112011

1шт.

3

NLS

NO LONGER SERVICED

1/8 x 5/8 Woodruff no. 5

1шт.

4

35647H

SHAFT

idler gear

1шт.

5

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

6

69607R1

GASKET

oil pump cover

1шт.

7

379139R91

COVER

& SCREEN ASSY, oil pump

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

230409R91

GEAR

SHAFT & GEAR ASSY, oil pump drive

1шт.

9

NSS

NOT SOLD SEPARAT

BODY, oil pump, not serviced separately, order pump assy, 379138R91

1шт.
