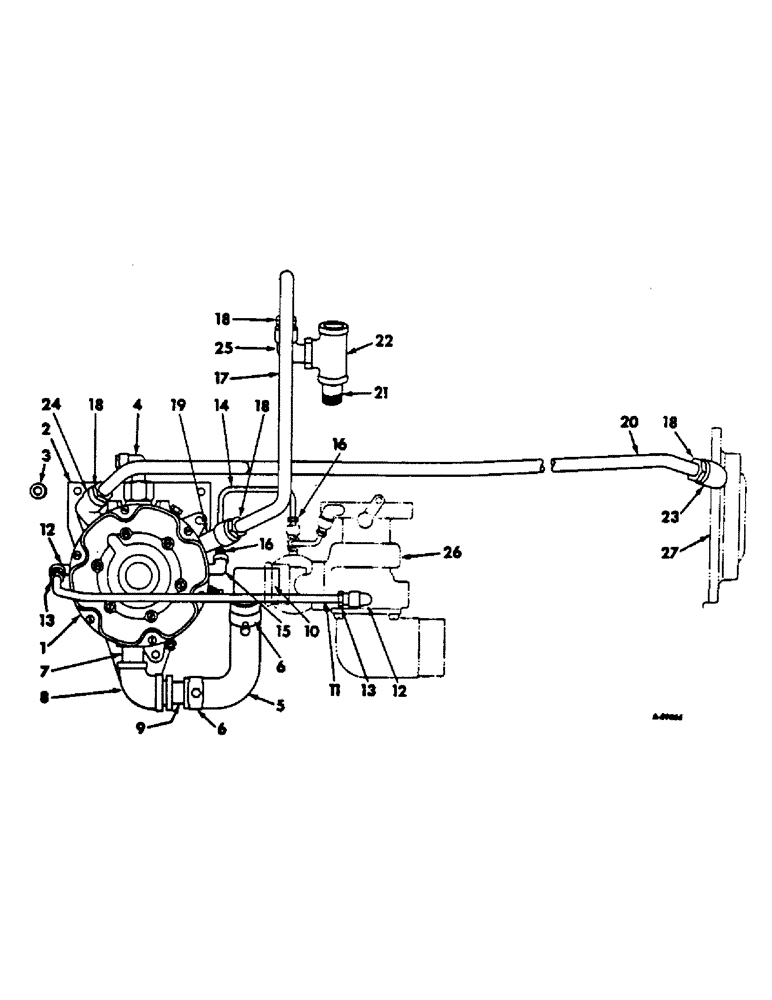

Запчасти Case IH C-291 (D-36) - FUEL REGULATOR AND CONNECTIONS, 616 AND 622 LP GAS COTTON PICKERS

1

392731R92

REGULATOR ASSY, fuel, for components see list of parts under details of fuel regulator

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

392732R11

BRACKET ASSY, fuel regulator mounting

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

86224H

SPACER,1/4" Pipe x 3/8"

Fuel regulator 1/4" Pipe x 3/8"

2шт.

4

109563R1

ELBOW

90 deg flared tube

1шт.

5

371102R1

HOSE

fuel line

1шт.

6

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, fuel line hose, replaces 274086R91

2шт.

7

191363

NIPPLE, 3/4 x 1-1/4 pipe

1шт.

8

192651

ELBOW, 3/4 x 1/2 60 deg reducing pipe

1шт.

9

188902R1

NIPPLE, regulator fuel hose

1шт.

10

188897R1

ELBOW, carburator fuel hose

1шт.

11

TUBE, fuel regulator to carburetor balance, use 18 inches of 5/16 OD copper tubing from 50 ft. roll marked 995062R1 and 2 nuts, 19985R1

1шт.

12

24847H

ELBOW,90 Degree x 1/8" NPT x 1/2"-20

1/2-20 hi-duty FTBE fitting male pipe

2шт.

13

19985R1

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty fitting

2шт.

14

TUBE, fuel regulator to carburetor idle, use 11 inches of 3/8 OD copper tubing from 50 ft. roll marked 995060R1 and 2 nuts, 19983R1

1шт.

15

32468H

ELBOW,90 Degree x 1/8" NPT x 3/8"-24

3/8-24 hi-duty tube fitting male pipe

1шт.

16

19983R1

NUT, 3/8-24 hi-duty tube fitting

2шт.

17

TUBE, fuel regulator to cylinder head water, use 25 inches of 1/2 OD copper tubing from 50 ft. roll marked 995064R1 and 2 nuts, 19987R1

1шт.

18

19987R1

NUT

11/16-16 hi-duty tube

4шт.

19

58986D

ELBOW, 11/16-16 45 deg hi-duty tube fitting male pipe 45º x 3/8" NPT x 11/16"-16

1шт.

20

TUBE, fuel regulator to water pump, use 38 inches of 1/2 of copper tubing from a 50 ft. roll marked 995064R1 and 2 nuts, 19987R1

1шт.

21

144610

PIPE

NIPPLE, 1/2 x 1-3/8 close pipe

1шт.

22

138105

TEE,1/2" NPT, Fem

1/2 pipe

1шт.

23

386063R1

ELBOW, 45 deg, regulator to pump water

1шт.

24

40876D

ELBOW, 11/16-16 hi-duty tube fitting male pipe 90º x 3/8" NPT x 11/16"-16

1шт.

25

68134D

ELBOW, 11/16-16 hi-duty tube fitting 90º x 1/2" NPT x 11/16"-16

1шт.

26

CARBURETOR, for components see list of parts under details of carburetor

1шт.

27

WATER PUMP ASSY, for components see list of parts under details of water pump

1шт.
