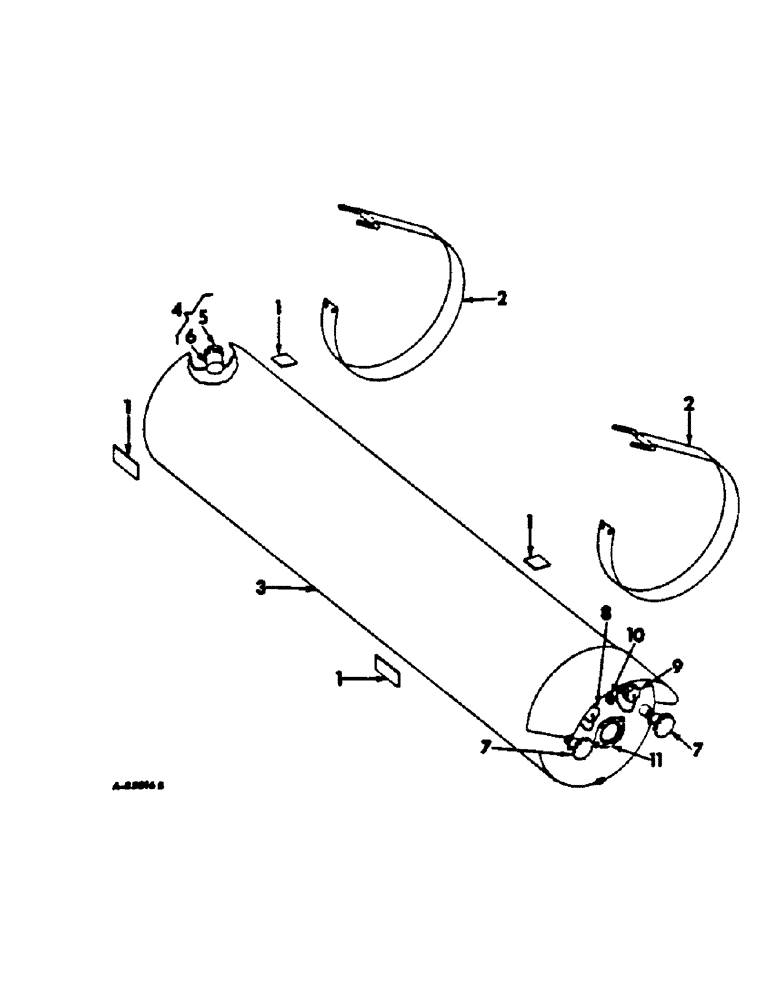

Запчасти Case IH C-291 (D-35) - FUEL TANK AND STRAPS, 616 AND 622 LP GAS COTTON PICKERS

1

LINING, fuel tank, use 2 in. from a 50 ft. roll marked 990543R1, use 4 in. for strap lining

1шт.

2

672934R11

STRAP ASSY, fuel tank

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8-16 x 3/4 znd hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

3

672945R91

TANK ASSY, fuel

1шт.

4

363690R91

VALVE W/RAIN CAP, relief, replaces 230826R91

1шт.

5

363692R1

CAP, relief valve rain

1шт.

6

NSS

NOT SOLD SEPARAT

order 363690R91

1шт.

7

400678R91

VALVE ASSY, liquid and vapor service, Basitan Blessing, optional w/367515R91

2шт.

7

367515R91

VALVE ASSY, liquid and vapor service, Fisher Governor, optional w/400678R91

2шт.

8

363688R91

VALVE W/CAP, filler, Bastian Blessing, optional w/376516R91

1шт.

8

376516R91

VALVE W/CAP, filler, Fisher Governor, optional w/363688R91

1шт.

9

109567R91

VALVE ASSY, vapor return, Bastian Blessing, optional w/376517R91

1шт.

9

376517R91

VALVE ASSY, vapor return, Fisher Governor, optional w/109567R91

1шт.

10

363693R91

GAUGE, fixed liquid level, Bastian Blessing, optional w/376514R91

1шт.

10

376514R91

GAUGE, fixed liquid level, Fisher Governor, optional w/363693R91

1шт.

11

200468C1

GAUGE, float

1шт.
