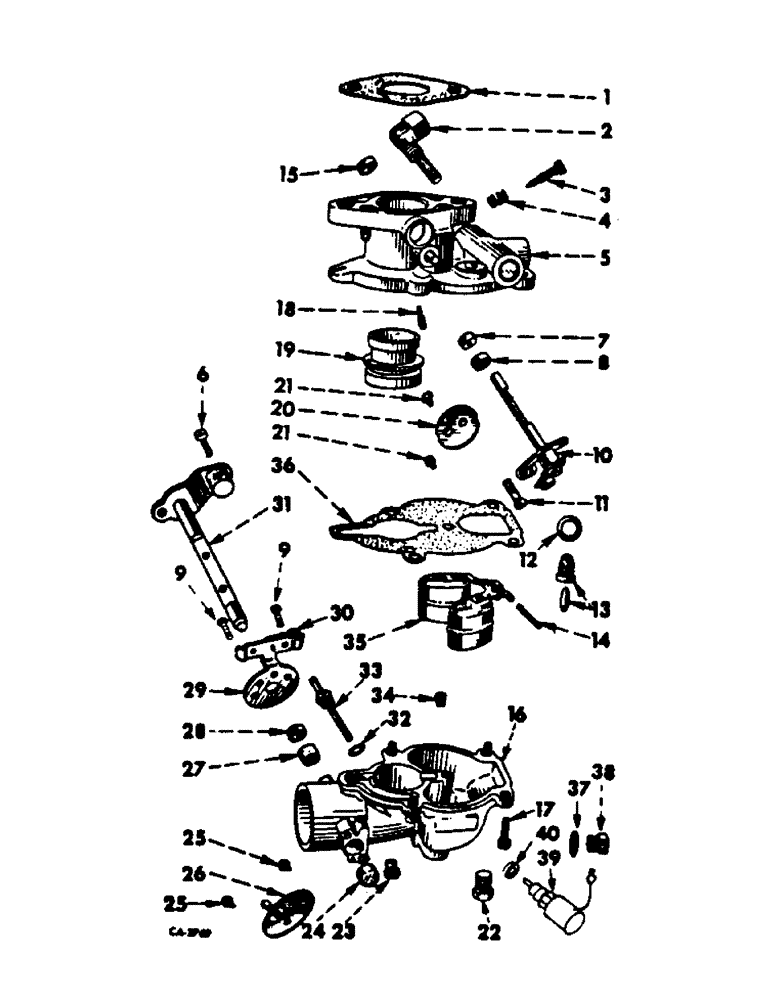

Запчасти Case IH C-291 (D-31) - CARBURETOR

65486C92

CARBURETOR

ASSY, Zenith, 666 and 686 gear drive tractors, less Ref. nos. 1, 39 and 40, optional w/67235C91

1шт.

Ref: Carbureator Assy - Use Zenith Solenoid P/N 65486C91 and 393168R94 solenoid shut off valve. 6-June-1996

1шт.

86509310

NUT,3/8" - 24, Gr 5

2шт.

1

530681R1

GASKET

carburetor, note

1шт.

Not part of carburetor assembly.

1шт.

2

400423R1

ELBOW

STRAINER ASSY, fuel inlet

1шт.

3

69571C1

SCREW

idle adjusting needle

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING, idle adjusting needle valve, not serviced separately, order carburetor assembly

1шт.

5

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, throttle, not serviced separately, order carburetor assembly

1шт.

6

19402R1

SCREW, 8-36 x 7/16 C-Z slt-hex-hd mach

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, throttle shaft, not serviced separately, order gasket package

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER, throttle shaft seal, not serviced separately, order gasket package

1шт.

9

131958

ELBOW

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

10

69570C91

SHAFT

AND LEVER, throttle

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, , Throttle 3/32" x 7/16", Slotted

1шт.

23424R1

SCREW, 10-32 x 13/16 slt-hex-hd mach

1шт.

11

19509R1

SCREW, 8-36 x 5/8 slt-hex-hd mach throttle stop

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER, fuel valve, not serviced separately, order gasket package

1шт.

13

390873R91

VALVE

AND SEAT ASSY, fuel

1шт.

14

381030R1

AXLE

float

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG, throttle shaft hole, not serviced separately, order carburetor overhaul package

1шт.

16

NSS

NOT SOLD SEPARAT

BOWL ASSEMBLY, fuel, not serviced separately, order carburetor assembly

1шт.

17

19563R91

SCREW W/SPRING LOCK WASHER 12-24 x 5/8 C-Z slt-fil-hd mach

4шт.

18

1252431C1

IDLE JET (replaces 62172D)

1шт.

19

NSS

NOT SOLD SEPARAT

VENTURI, not serviced separately, order carburetor assembly

1шт.

20

NSS

NOT SOLD SEPARAT

PLATE, throttle, not serviced separately, order carburetor assembly

1шт.

21

454415

SCREW W/SPRING LOCK WASHER, throttle plate

2шт.

22

444613

BEARING HOUSING

1/8 pipe

3шт.

23

384327R91

FILTER

ASSY, drip plug

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG, choke shaft hole, not serviced separately, order carburetor assembly

1шт.

25

454415

SCREW W/SPRING LOCK WASHER AND CHOKE PLATE

2шт.

26

NSS

NOT SOLD SEPARAT

PLATE ASSY, choke, not serviced separately, order carburetor assembly

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL, choke shaft, not serviced separately, order gasket package

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER, choke shaft packing, not serviced separately, order gasket package

1шт.

29

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY, choke valve w/clamp, screw and nut, not serviced separately, order carburetor assembly

1шт.

30

369886R1

CLAMP

choke cable

1шт.

19509R1

SCREW, no. 8NF x 5/8 znp h/hds mach

1шт.

19404R1

NUT, 8-36 C-Z sq mach

1шт.

31

NSS

NOT SOLD SEPARAT

LEVER AND SHAFT W/SCREW ASSEMBLY CHOKE VALVE, not serviced separately, order carburetor assembly

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER, discharge jet fibre, not serviced separately, order gasket package

1шт.

33

1252418C1

JET AND NOZZLE, discharge (replaces 69569C2)

1шт.

34

1252432C1

BLEED, main air (replaces 64033D)

1шт.

35

381027R1

FLOAT

ASSY, fuel

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET, bowl to body, not serviced separately, order gasket package

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET, main jet passage plug, not serviced separately, order gasket package

1шт.

38

31860D

PLUG

main jet passage

1шт.

39

71550C91

PACKAGE

VALVE, solenoid fuel shut-off, Contains 393168R95 Solenoid (NSS) and 107609C1 gasket.

1шт.

Not part of carburetor assembly.

1шт.

40

107609C1

WASHER

GASKET, fuel shut-off solenoid

1шт.

Not part of carburetor assembly.

1шт.

69572C91

KIT

PACKAGE, carburetor repair

1шт.

68441C1

PACKAGE

carburetor gasket

1шт.
