Запчасти Case IH C-291 (D-29) - CARBURETOR, GASOLINE

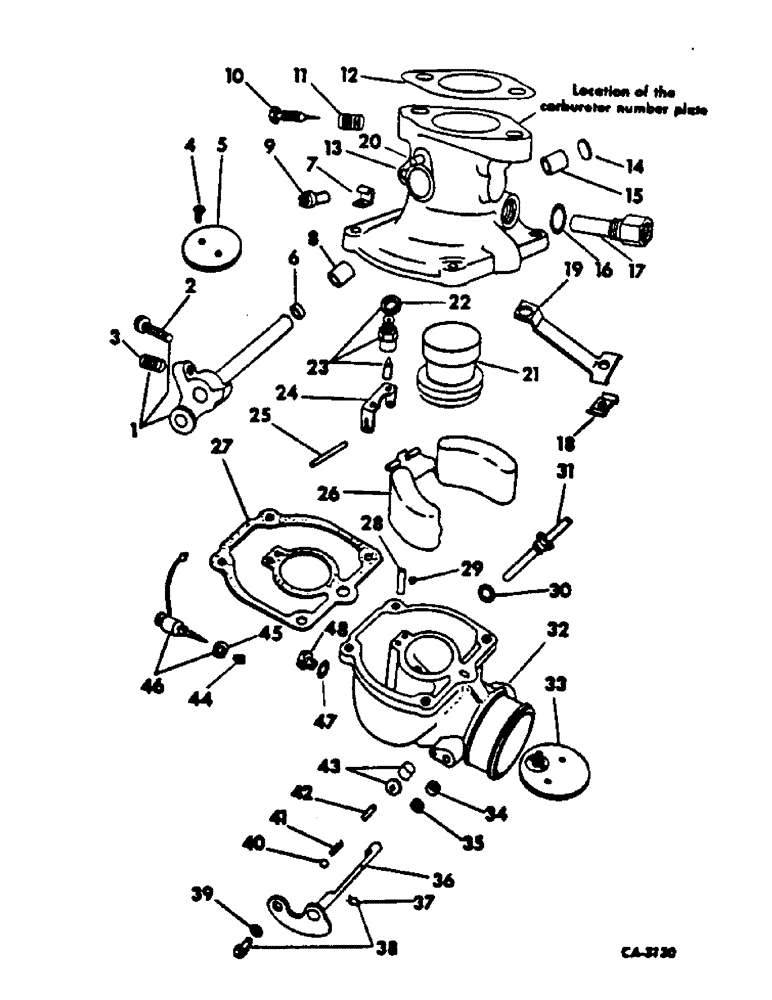

Схема запчастей Case IH C-291 - (D-29) - CARBURETOR, GASOLINE
25
31
44
43
12
4
21
41
7
9
14
26
38
33
20
42
32
3
8
37
6
30
39
48
47
13
10
46
22
34
17
2
18
28
45
5
35
11
29
40
36
24
23
16
27
15
19

Артикул

Название

Примечание

Количество

396197R93

CARBURETOR, IH 1-3/8 updraft, 706, 756 tractors, 616 and 622 cotton pickers, less Ref. nos. 7, 12, 45, 46, 47 and 48

1шт.

103026

NUT,3/8"-24, G5

2шт.

539575R91

CARBURETOR, IH 1-3/8 updraft, Farmall 766 tractors, less Ref. nos. 7, 12, 45 and 46

1шт.

103026

NUT,3/8"-24, G5

2шт.

1

381606R91

SHAFT

& LEVER ASSY THROTTLE

1шт.

2

132128

SCREW, throttle shaft adjusting Slotted Fil Hd, #10-32 x 7/8"

1шт.

3

25484D

SPRING

throttle adjustment retainer

1шт.

4

47392D

SCREW

throttle butterfly

2шт.

5

54489D

VALVE

BUTTERFLY, throttle

1шт.

6

SEAL, throttle shaft dust, order package 387454R93

2шт.

7

370535R1

CLIP

fuel shut off valve wire

1шт.

8

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

9

368142R1

PLUG, idle passage

1шт.

10

362528R1

ADJUSTMENT SCREW

idle adjusting

1шт.

11

351959R1

SPRING

idle adjusting screw retainer

1шт.

12

530681R1

GASKET

carburetor

1шт.

13

BODY ASSY, throttle, order carburetor assembly

1шт.

14

57956D

PLUG

throttle shaft expansion

1шт.

15

47390D

BUSHING,7.91mm ID x 11.16mm OD x 12.7mm L

throttle shaft

1шт.

16

GASKET, strainer screen retainer, order package 387454R93

1шт.

17

29902DX

SCREEN

UNION W/STRAINER, fuel pipe, hi-duty fitting

1шт.

17

394554R11

UNION

W/STRAINER, fuel pipe, inverted flare fitting

1шт.

18

32596D

FASTENER

CLAMP, starting shutter control

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

no. 10-32 x 3/4 slt-fil-hd mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

381610R11

SUPPORT

BRACKET W/CLAMP, 32596D and hardware starting shutter control

1шт.

20

45110D

PIN

throttle stop

1шт.

21

47407D29

VENTURI

single no. 29, used with carburetor 396197R93

1шт.

21

47407D31

VENTURI, single no. 31, used with carburetor 539575R91

1шт.

22

GASKET, needle valve cage, order package 387454R93

1шт.

23

47396DAX40

NEEDLE

CAGE ASSY, needle valve

1шт.

24

47394D

SUPPORT

float lever pivot

1шт.

86983776

no. 4-40 x 5/16 C-Z slt-rd-hd mach

2шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

2шт.

25

47395D

PIVOT

float lever

1шт.

26

47398DX

FLOAT

& LEVER ASSY

1шт.

27

GASKET, fuel bowl, order package 387454R93

1шт.

28

49798D70

JET

idle metering no. 70

1шт.

29

35606D44

VALVE

BLEED, main air no. 44

1шт.

30

GASKET, metering nozzle, order package 387454R93

1шт.

31

383504R1

NOZZLE INJECTION

NOZZLE, metering

1шт.

32

BOWL ASSY, fuel, order carburetor assembly

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto sq-hd pipe

1шт.

180021

SPRING

SCREW, 1/4-20 x 7/8 C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

33

357002R12

SHUTTER

ASSEMBLY, starting

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

no. 6-32 x 1/4 C-Z slt-rd-hd mach

2шт.

131044

LOCK WASHER

Lock, #6

2шт.

34

SEAL, choke shaft dust, order package 387454R93

1шт.

35

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, dust seal

1шт.

36

382926R91

SHAFT & LEVER ASSY, starting shutter

1шт.

37

363881R1

RETAINER

starting shutter lever swivel

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

no. 8-32 x 3/8 C-Z slt-rd-hd mach

1шт.

38

64283DBX

PIVOT ASSY.

SWIVEL ASSEMBLY, starting shutter lever

1шт.

39

32592D

WASHER

WASHER, starting shutter lever swivel

1шт.

40

52791R1

BALL,3/16" Dia, Stainless

friction spring

1шт.

41

46059D

SPRING

starting shutter friction

1шт.

42

351588R1

PIN

starting shutter stop

1шт.

43

60947D

PLUG

PACKAGE, drip hole filler replacement

1шт.

44

376440R1

BIT

JET, main, .054, used with carburetor 396197R93

1шт.

44

539576R1

JET, main, .062, used with carburetor 539575R91

1шт.

45

107645C1

WASHER

GASKET, fuel shut-off valve

1шт.

46

71425C92

PACKAGE

PACKAGE, fuel shut-off valve, replaces 384818R94

1шт.

47

362526R1

GASKET

fuel adjusting plug, used with carburetor 539575R91

1шт.

48

362525R1

PLUG

fuel adjusting, used with carburetor 539575R91

1шт.

387454R93

PACKAGE

carburetor gasket

1шт.

387459R92

PACKAGE

carburetor overhaul

1шт.

Выбрано товаров: 68
