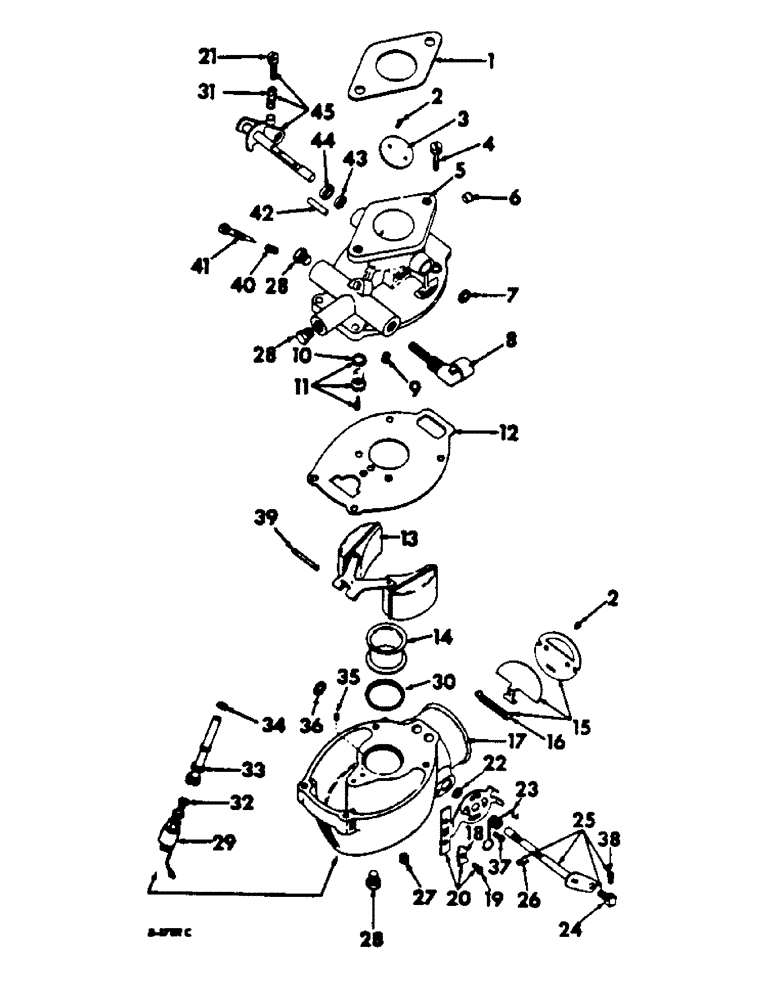

Запчасти Case IH C-291 (D-27) - CARBURETOR, GASOLINE

67235C91

CARBURETOR

ASSY, 666 and 686 gear drive tractors, less Ref. nos. 1, 29 and 32

1шт.

103026

NUT,3/8"-24, G5

2шт.

67238C91

CARBURETOR

ASSY, 666, 70 and 86 hydrostatic drive tractors, less Ref. nos. 1, 29 and 32

1шт.

103026

NUT,3/8"-24, G5

2шт.

1

530681R1

GASKET

carubretor

1шт.

Not part of carburetor assembly.

1шт.

2

B51702

SCREW,#6 - 32 x 1/4"

W/LOCKWASHER, choke and throttle plate

4шт.

3

381948R1

VALVE

PLATE, throttle, used with carburetor 67235C91

1шт.

3

68106C1

PLATE, throttle, used with carburetor 67238C91

1шт.

4

19542R91

SCREW W/LOCKWASHER, throttle, Serial Range: body-bowl

4шт.

5

BODY ASSY, throttle, order carburetor assy

1шт.

6

373400R1

PLUG, idle drilling

1шт.

7

405920R1

PLUG

CUP, throttle shaft

1шт.

8

400423R1

ELBOW

STRAINER ASSY, gasoline

1шт.

9

69929D

JET, idling

1шт.

10

GASKET, float valve seat, order package, 400429R93

1шт.

11

68102C1

VALVE

ASSY, float

1шт.

12

GASKET, throttle body to bowl, order package, 400429R93

1шт.

13

381962R1

FLOAT

ASSY

1шт.

13

381962R1GV

FLOAT

Value, Float

1шт.

14

68210C1

VENTURI

27/32, used w/carburetor 67235C91

1шт.

68100C1

VENTURI

1 inch, used with carburetor 67238C91

1шт.

15

381960R91

VALVE

PLATE ASSY, choke, used with carburetor 67235C91

1шт.

15

68101C91

VALVE

ASSY, choke, used with carburetor 67238C91

1шт.

16

381961R1

SPRING

choke plate

1шт.

17

BOWL ASSY, fuel, order carburetor assy

1шт.

18

373373R1

CLIP

choke valve bracket

1шт.

19

20832R91

SCREW W/SPRING, lock washer 8-32 x 1/2 C-Z slt-hex-hd mach

1шт.

20

373372R91

BRACKET

ASSY, choke valve

1шт.

21

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

throttle stop

1шт.

22

SEAL, choke shaft, order package, 400429R93

1шт.

23

373369R1

SPRING

air shutter return

1шт.

24

373405R1

PIVOT

SWIVEL, choke shaft

1шт.

25

403355R91

LEVER

SHAFT ASSY, choke

1шт.

26

373406R1

SPLIT PIN

SPRING, swivel retainer

1шт.

27

373387R1

FILTER

STRAINER, bowl

1шт.

28

444613

BEARING HOUSING

drain

1шт.

29

71358C91

PACKAGE

VALVE, solenoid fuel shut-off

1шт.

Not part of carburetor assembly.

1шт.

107609C1

WASHER

GASKET, fuel shut-off

1шт.

30

400422R1

RETAINER

venturi

1шт.

31

69953D

SPRING

throttle stop screw

1шт.

32

404801R1

JET

main

1шт.

33

68103C1

NOZZLE INJECTION

NOZZLE, used with carburetor, 67235C91

1шт.

33

68105C1

NOZZLE, used with carburetor, 67238C91

1шт.

34

GASKET, main nozzle, order package, 400429R93

1шт.

35

373383R1

BUSHING

VENT, well

1шт.

36

373403R1

PLUG

CUP, choke shaft

1шт.

37

453666

SCREW, choke bracket

1шт.

38

455956

SCREW, choke swivel, 8/32 x 5/16 C-Z slt-hex-hd mach

1шт.

39

381963R1

AXLE

float

1шт.

40

69954D

SPRING

idle adjusting screw

1шт.

41

69923D

SCREW

idle adjusting

1шт.

42

533349R1

PIN, throttle stop

1шт.

43

SEAL, throttle shaft, order package, 400429R93

1шт.

44

SEAL, throttel shaft, order package, 400429R93

1шт.

45

68108C91

SHAFT

ASSY, throttle, used with carburetor 67238C91 and 67235C91

1шт.

68107C91

KIT

PACKAGE, carburetor overhaul, used with carburetor 67238C91 and 67235C91

1шт.

400429R93

PACKAGE

carburetor gasket

1шт.
