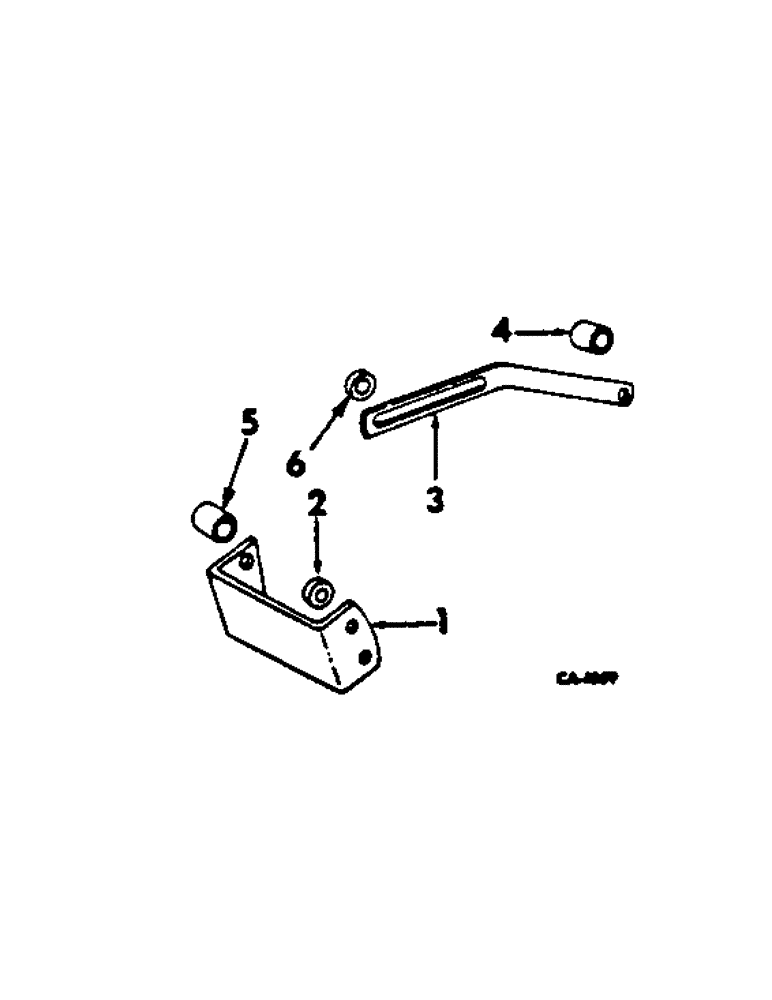

Запчасти Case IH C-291 (D-25[A]) - ALTERNATOR-GENERATOR MOUNTING, 756, FARMALL HYDRO 70, 666, 766 TRACTORS AND 9000 FORK LIFTS

1

384991R1

SUPPORT

BRACKET, alternator generator mounting

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

384992R1

SPACER

alternator generator mounting

1шт.

3

371107R2

SUPPORT

BRACE, alternator generator

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

alternator generator brace

1шт.

259207R1

WASHER

flat

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

1шт.

5

384993R1

SPACER

alternator generator

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

6

280185R1

SPACER

alternator generator brace

1шт.

537326R1

BOLT

5/16-18 x 1-1/2 znd hex-hd cap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .051 C-Z

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.
