(D-24) - ENGINE SUPPORT, 666 AND 686 GEAR DRIVE TRACTORS AND 666, 70 & 86 HYDROSTATIC DRIVE TRACTORS

Запчасти Case IH C-291 (D-24) - ENGINE SUPPORT, 666 AND 686 GEAR DRIVE TRACTORS AND 666, 70 & 86 HYDROSTATIC DRIVE TRACTORS

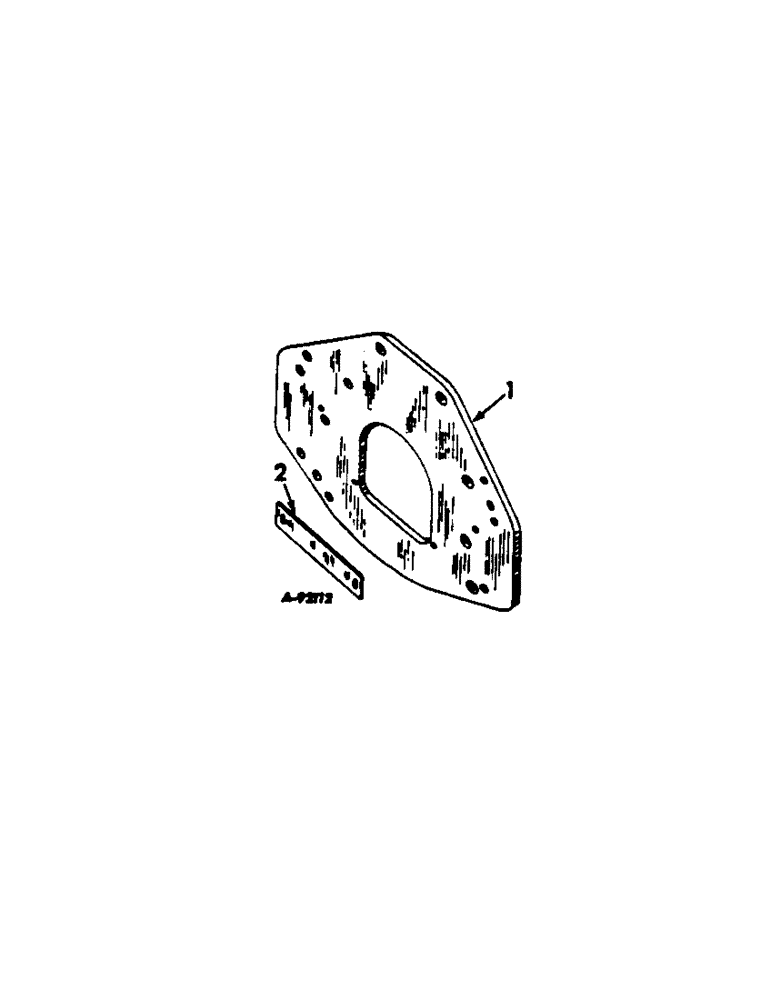

Схема запчастей Case IH C-291 - (D-24) - ENGINE SUPPORT, 666 AND 686 GEAR DRIVE TRACTORS AND 666, 70 & 86 HYDROSTATIC DRIVE TRACTORS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

367223R1

SUPPORT, engine rear

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

2

367225R1

BAR

SEAL, engine rear support dust

1шт.

179814

SPACER

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

2шт.

Выбрано товаров: 0
