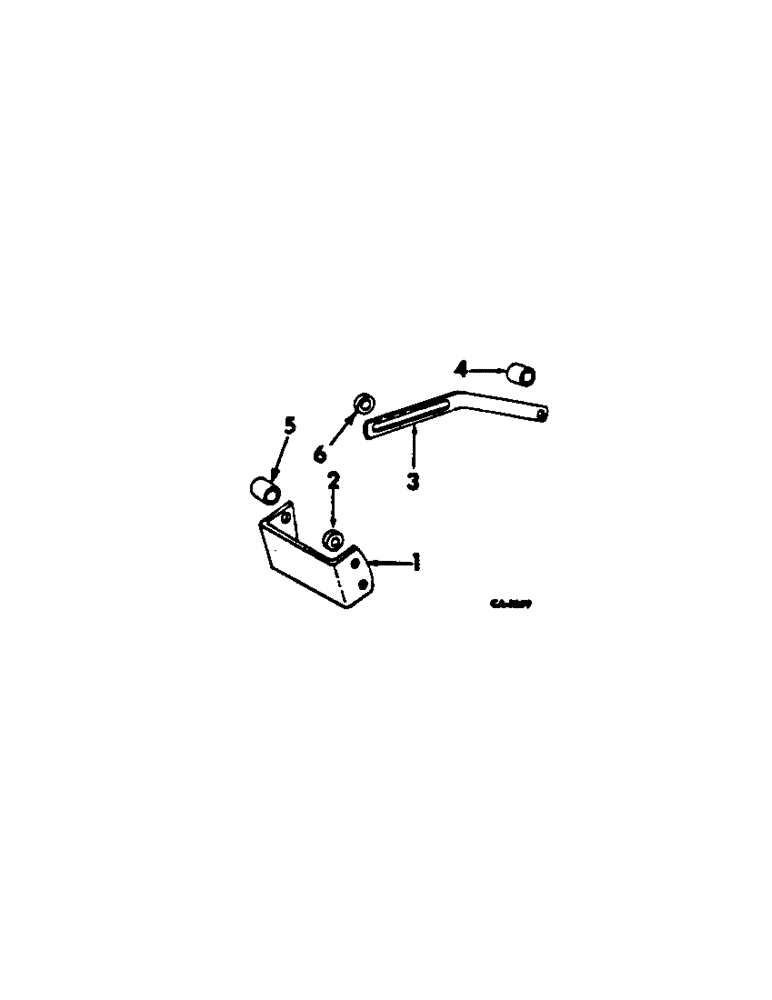

Запчасти Case IH C-291 (D-24[B]) - ALTERNATOR-GENERATOR MOUNTING, 666, 70 AND 86 HYDROSTATIC DRIVE TRACTORS AND 756 AND 766 TRACTORS

1

384991R1

SUPPORT

BRACKET, alternator generator mounting, machies w/out air conditioning

1шт.

1

395454R1

BRACKET, alternator generator mounting, machines w/air conditioning

1шт.

102635

NUT,3/8"-16, G5

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

SCREW, 3/8-16 x 4-1/4 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

384992R1

SPACER

alternator generator mounting bracket, short

1шт.

3

371107R2

SUPPORT

BRACE, alternator generator, LP gas Farmall tractors w/serial no. 37236 & below & International tractors w/serial no. 5273 and below

1шт.

3

384994R2

BRACE

alternator generator, gasoline Farmall tractors with serial no. 37236 & below and International tractors w/serial no. 5273 and below

1шт.

3

371107R2

SUPPORT

BRACE, alternator generator, gasoline and LP gas Farmall tractors w/serial no. 37237 and above and International tractors w/serial no. 5274 & above

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

371108R1

SPACER,3/8" Pipe x .844"

generator brace, bracket, long

1шт.

5

384993R1

SPACER

alternator generator mounting, machines w/out air conditioning

1шт.

5

351549R1

WASHER

SPACER, alternator generator mounting, machines w/out air conditioning

1шт.

6

280185R1

SPACER

alternator generator brace

1шт.
