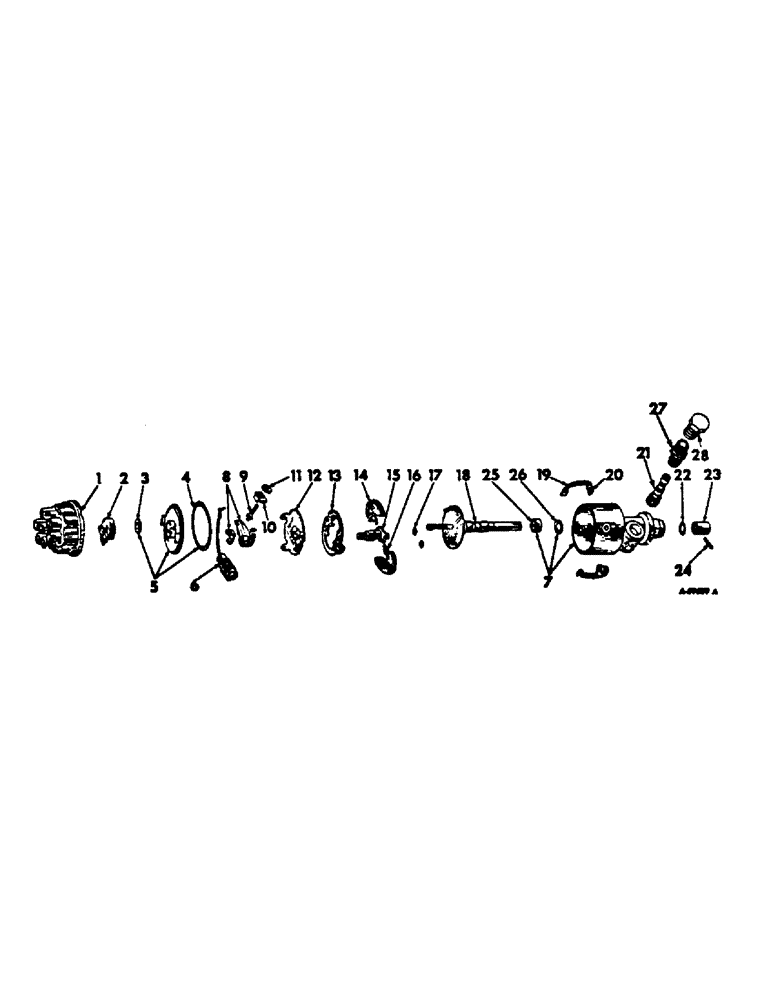

Запчасти Case IH C-291 (D-22) - DISTRIBUTOR

398157R91

DISTRIBUTOR ASSY, AW symbol, 706, 756 gasoline tractors, 666, 686 gear drive tractors, 666 70 and 86 hydrostatic drive tractors and 766 tractors

1шт.

REF# 7 FOR 398157R91: The thrust bearings, per the print is 368056R1& 368052R1. Specs for alignment are on the print 368051R1. SMA 8-11-97.

1шт.

388592R91

DISTRIBUTOR

ASSY, AN symbol, 706 LP gas tractors w/serial no. 5800 and below

1шт.

399597R91

DISTRIBUTOR

ASSY, AZ symbol, 706 LP gas tractors w/serial no. 5801 and above and 756 LP gas tractors

1шт.

398690R91

DISTRIBUTOR

ASSY, AU symbol, 706 gasoline tractors, 616, 222 gasoline cotton pickers, for service furnish distributor 68830C91

1шт.

388535R91

DISTRIBUTOR

ASSY, AP symbol, order 68830C91, 616 & 622 LP gas cotton picker

1шт.

401170R91

DISTRIBUTOR

ASSY, BB symbol, 616 & 622 LP gas cotton pickers, for service furnish 68830C91

1шт.

1

368062R91

CAP

ASSEMBLY, distributor

1шт.

1

368062R91GV

CAP

Value, distributor cap

1шт.

2

353896R91

ROTOR ASSY.

ROTOR ASSEMBLY, distributor

1шт.

3

353901R2

FELT SEAL

FELT, breaker cover seal

1шт.

4

384830R1

GASKET

breaker cover

1шт.

5

384831R91

COVER

ASSY, breaker

1шт.

5

384831R91GV

COVER

Value, Breaker Cover

1шт.

6

353903R92

CONDENSER

ASSEMBLY

1шт.

131949

DECAL KIT

no. 8-32 x 3/16 C-Z slt-fil-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

368051R11

HOUSING ASSY, distributor, used w/all distributors except 401170R91 and 398690R91

1шт.

REF# 7 FOR 398157R91: The thrust bearings, per the print is 368056R1& 368052R1. Specs for alignment are on the print 368051R1. SMA 8-11-97.

1шт.

7

401107R11

HOUSING ASSY, distributor, used w/distributors 401170R91 & 398690R91

1шт.

125947

STUD

1/8 C-Z slt hdls pipe

1шт.

8

372951R91

SCREW,POINTED

POINT SET, distributor

1шт.

8

372951R91GV

SET

Value, Pointed Screw

1шт.

436690

SCREW,Slotted Pan Hd, #8-32 x 3/16"

no. 8-32 x 3/16 C-Z slt-pan-hd mach

1шт.

21394D

WASHER

stationary point and terminal

3шт.

9

353907R1

STUD

SCREW, terminal

1шт.

120622

NUT,#8-32

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

353906R1

PLUG

INSULATOR, spring anchor terminal

1шт.

11

251538R1

WASHER

terminal insulating

1шт.

12

372868R11

RETAINER

PLATE ASSY, breaker

1шт.

132756

SCREW, no. 8-32 x 7/16 C-Z slt-rd-hd mach

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

353920R1

GUARD

governor weight

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8-32 x 1/4 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

14

353917R91

ARM

ASSY, weight

2шт.

15

356192R91

CAM

ASSEMBLY

1шт.

355460R1

FELT SEAL

FELT, cam oil hole

1шт.

16

376556R91

PACKAGE

governor spring, used w/distributor 398157R91 and 398690R91

1шт.

16

393004R91

PACKAGE, governor spring, used w/distributor 388538R91 and 401170R91

1шт.

16

362725R91

SPRING

PACKAGE, governor spring, used w/distributor 388592R91 and 399597R91

1шт.

17

352293R1

SHIM

SPACER, weight arm

4шт.

18

393397R91

SHAFT

ASSY, distributor, replaces 401115R1, used w/distributor 398157R91 and 398690R91

1шт.

18

388593R91

SHAFT

ASSY, distributor, used w/distributor 388592R91 and 399597R91

1шт.

18

401172R1

SHAFT ASSY, distributor, used w/distributor 401170R91

1шт.

18

371580R91

SHAFT ASSY, distributor, used w/distributor 388535R91

1шт.

19

368096R1

SPRING

distributor cap

2шт.

20

353895R1

SUPPORT

distributor cap spring

2шт.

132756

SCREW, no. 8-32 x 7/16 C-Z slt-rd-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

368245R12

PINION

GEAR ASSY, tachometer drive, used w/distributor 399597R91 and 398157R91

1шт.

22

368054R1

THRUST WASHER

distributor thrust, lower

1шт.

23

368053R1

BUSHING

COLLAR, distributor shaft

1шт.

24

354552R1

HARDWARE

PIN, distributor gear

1шт.

25

368057R91

OIL SEAL

OIL SEAL, distributor shaft

1шт.

26

368055R1

WASHER, distributor thrust - upper

1шт.

27

368246R1

CONNECTION

HOUSING, tachometer connection, used w/distributor 399597R91 and 398157R91

1шт.

28

369013R1

PLUG

distributor housing, used w/all distributor except 399597 and 398157R91

1шт.

407062R91

BREAKER

SET, points and condenser consists of (1) condenser 353903R92, (1) point set 372951R91

1шт.
