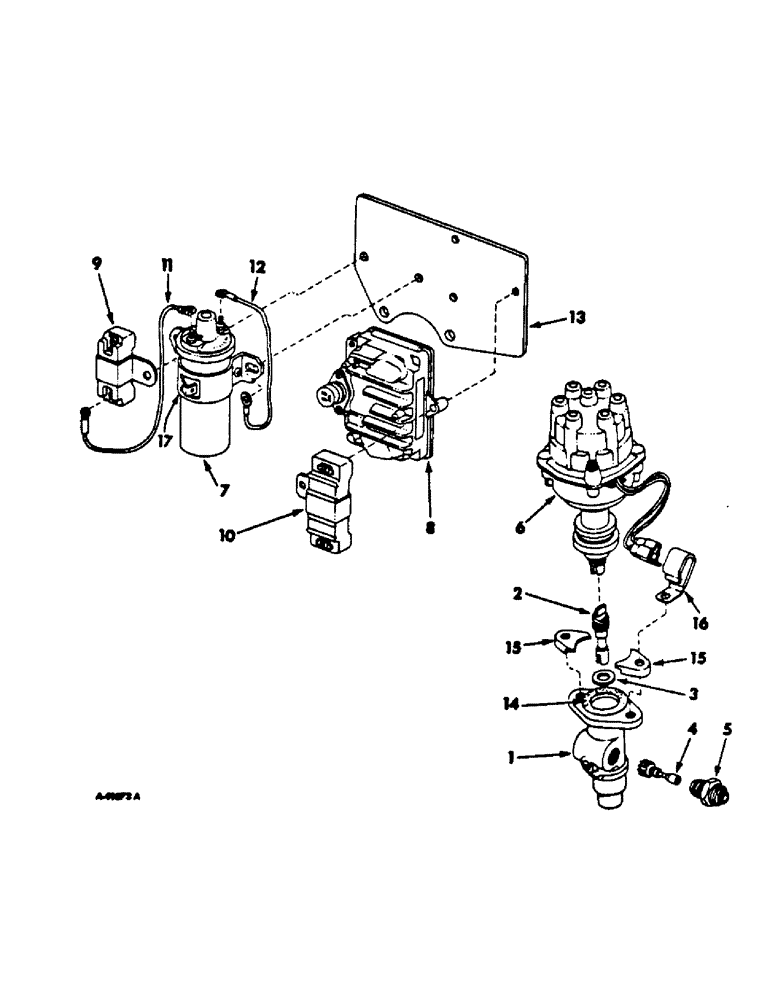

Запчасти Case IH C-291 (D-19) - MAGNETIC PULSE IGNITION, 756 TRACTORS

1

398088R91

DRIVE ASSY, distributor & tachometer, consists of (1) shaft 398905R1, (1) washer 368054R1, (1) gear assy 368245R12, (1) housing 368246R1

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt-hdls pipe

1шт.

2

398905R1

SHAFT

distributor & tachometer drive

1шт.

3

368054R1

THRUST WASHER

drive shaft thrust

3шт.

4

368245R12

PINION

GEAR ASSY, tachometer drive

4шт.

5

368246R1

CONNECTION

HOUSING, tachometer connection

1шт.

6

DISTRIBUTOR ASSY, magnetic pulse, for components see list of parts under details of distributor assy

1шт.

7

1115207

COIL

ignition, magnetic pulse, delco remy

1шт.

8

1115005

AMPLIFIER, magnetic pulse, Delco Remy

1шт.

9

1962289

RESISTOR

RESISTANCE UNIT, .43 ohm, Delco Remy

1шт.

10

1965417

RESISTANCE UNIT, .68 ohm, Delco Remy

1шт.

11

404392R1

CABLE ASSY, Serial Range: coil-resistorn

1шт.

12

404395R1

CABLE

ASSY, Serial Range: coil-ground

1шт.

13

404754R1

PLATE, coil and amplifier mounting

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 5/8 C-Z hex-hd cap

2шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16 C-Z flat

1шт.

14

353936R2

GASKET

distributor mounting

1шт.

15

353937R1

CLIP

CLAMP, distributor mounting

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

371036R1

CLIP

distributor lead connector

1шт.

17

1909326

CLAMP

coil

1шт.
