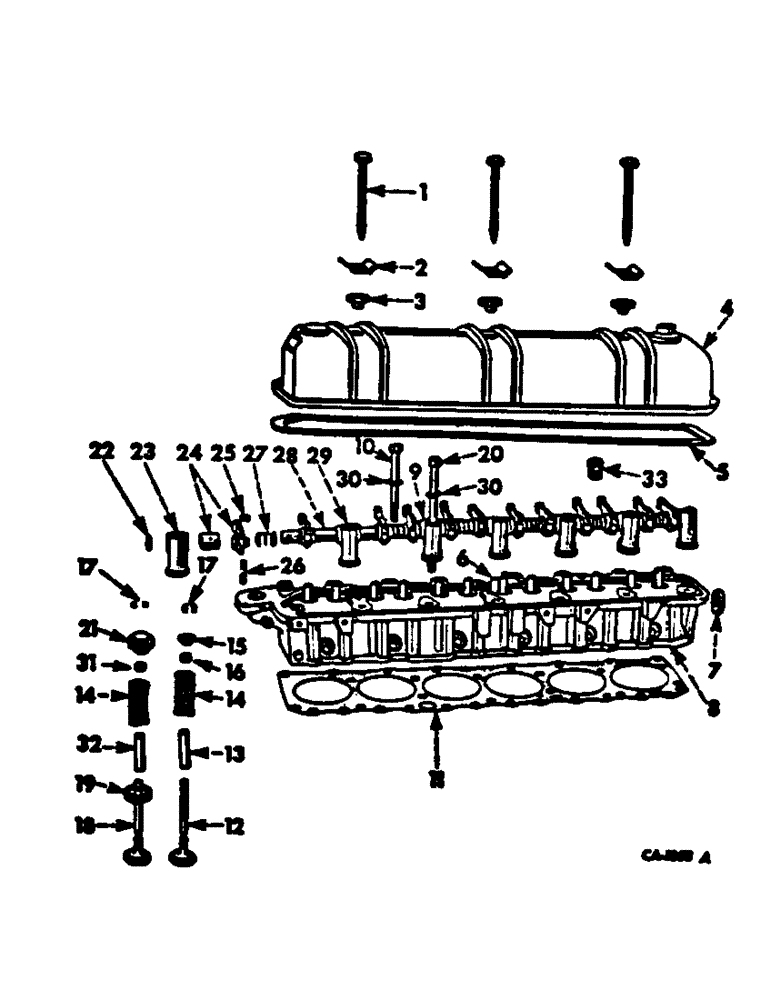

Запчасти Case IH C-291 (D-16) - CYLINDER HEAD AND RELATED PARTS

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

Q399

WASHER

11/32 x 1 x 16 ga, all machines except Farmall 766 tractors

3шт.

1

531195R1

BOLT, valve cover

3шт.

302861R1

COPPER WASHER,8.33mm ID x 14.28mm OD x 1.58mm Thk

valve cover bolt, Farmall 766 tractors

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover, used w/valve cover 378617R91

3шт.

4

378617R91

COVER

ASSY, valve, all machines except Farmall 766 tractors

1шт.

4

531885R1

COVER ASSEMBLY, valve, Farmall 766 tractors

1шт.

5

369983R2

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate no. 2, no. 4 and no. 6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

383665R96

CYLINDER HEAD

ASSY, cylinder, consists of, (6) guide (NSS), (6) guide (NSS), (1) head (NSS), (2) pilot 138733R1, (1) plug 70128R1, (1) plug 444782, (2) screw 179812, (2) screw 179852, (6) seat 126373R1

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-hd pipe, LP gas only

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto sq-hd pipe

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

1шт.

9

164425R1

BRACKET

valve lever shaft intermediate no. 3 and no. 5

2шт.

10

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cylinder head, short

8шт.

11

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

12

234276R1

VALVE

intake

6шт.

13

535229R1

GUIDE

intake valve stem

6шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

535166R1

RUBBER SEAL

intake valve stem

6шт.

17

41339D

KEY

valve spring retainer

24шт.

18

372699R3

LOCK VALVE

VALVE, exhaust

6шт.

19

126373R1

SEAT

exhaust valve, gasoline

6шт.

19

112508R1

SEAT

exhaust, LP gas

6шт.

19

126231R1

SEAT

.015 O/S exhaust valve, gasoline

6шт.

19

126229R1

SEAT

.015 O/S exhaust valve, LP gas

6шт.

19

83488R2

SEAT, .030 O/S exhaust valve, gasoline

6шт.

19

112509R1

SEAT, .030 O/S exhaust valve, LP gas

6шт.

20

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cylinder head, long

7шт.

21

375604R91

SEAT

ROTO COIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4 dia expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER W/NUT, 133093R1 and screw 16007DA, valve

1шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R93

SHAFT, valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

W/DOWEL, 69500R1 assy, valve lever shaft intermediate no. 2, no. 4 and no. 6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cylinder head bolt

15шт.

31

866834R1

BAFFLE

SEAL, exhaust valve stem

6шт.

32

237248R1

GUIDE

exhaust valve stem

6шт.

33

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.
