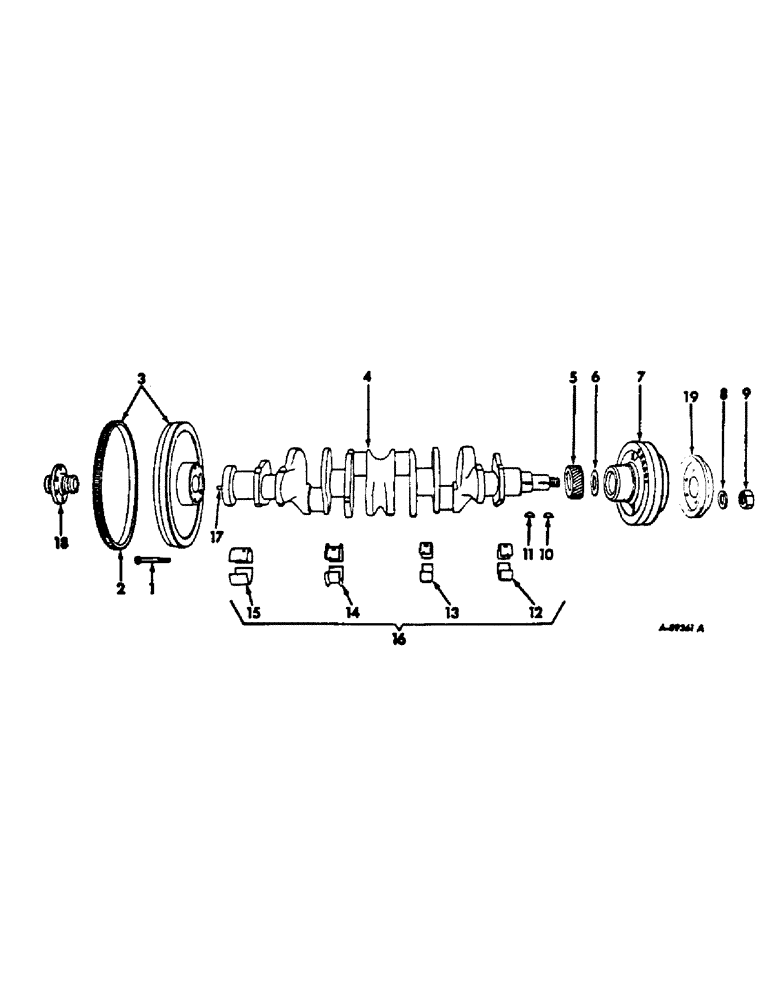

Запчасти Case IH C-291 (D-14) - CRANKSHAFT, FLYWHEEL AND BEARING

1

19466R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

7/16-20 x 1-3/4 hex lkg flywheel, to crankshaft, all machines except 666, 686 gear drive tractors, 666, 70 and 86 hydrostatic drive tractors, 616 and 622 cotton pickers

6шт.

1

19370R1

BOLT, flywheel mounting, 616 and 622 cotton pickers

6шт.

1

18623R1

BOLT, 7/16-20 x 2-3/4 hex-hd lkg flywheel to crankshaft, Farmall 666 and 686 tractors with gear drive

6шт.

1

332136R1

BOLT (SPREADER),7/16" - 20 x 2 1/4"

BOLT, flywheel mounting, 666, 686 gear drive tractors, 666, 70 and 86 hydrostatic drive tractors

6шт.

2

381127R1

PINION

GEAR, flywheel ring, 165 teeth, all machines except 666, 686 gear drive tractors, 66, 70 and 86 hydrostatic drive tractors, 616 and 622 cotton pickers

1шт.

2

367507R1

GEAR

flywheel ring, 165 teeth, 616 and 622 cotton pickers

1шт.

2

396421R1

GEAR, RING

GEAR, flywheel ring, 133 teeth, 666, 686 gear drive tractors, 666, 70 and 86 hydrostatic drive tractors

1шт.

3

378614R31

FLYWHEEL ASSEMBLY, all machines except 666, 686 gear drive tractors, 616 and 622 cotton pickers

1шт.

3

396455R11

FLYWHEEL ASSEMBLY, 616 and 622 cotton pickers

1шт.

3

396420R91

FLYWHEEL ASSEMBLY, 666 and 686 tractors with gear drive

1шт.

3

537135R91

FLYWHEEL ASSEMBLY, 666, 70 and 86 hydrostatic drive tractors

1шт.

4

382356R91

CRANKSHAFT

ASSY, std, consists of, (1) crankshaft (NSS), (1) pin 82970R1, (6) bearing assy 367408R11, (1) bearing assy 367285R91, (1) bearing assy 332267R91, (1) bearing assy 367276R91, (1) bearing assy 367279R91

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338952R91

PULLEY

DAMPER AND PULLEY ASSEMBLY, all machines except 666, 70 and 86 hydrostatic drive tractors and 616, 622 cotton pickers

1шт.

7

338949R91

DAMPER

AND PULLEY ASSEMBLY, 616 and 622 cotton pickers

1шт.

7

702136C1

DAMPER

AND PULLEY ASSEMBLY, 666, 70 and 86 hydrostatic drive tractors

1шт.

8

70109R1

WASHER

crankshaft nut

1шт.

9

219755

BACK-UP RING

1-14 hex jam

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, damper and pulley

1шт.

11

103462

KEY

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate front, 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

16

NOT SERVICE IN SETS, furnish individual bearing assy

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

18

396456R1

HUB

drive flange, 616 and 622 cotton pickers

1шт.

19

673191R1

PULLEY, radiator fan drive, 616 and 622 cotton pickers with belt drive

1шт.

19

674696R1

PULLEY, radiator fan drive, 616 and 622 cotton pickers with hydrostatic transmission

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
