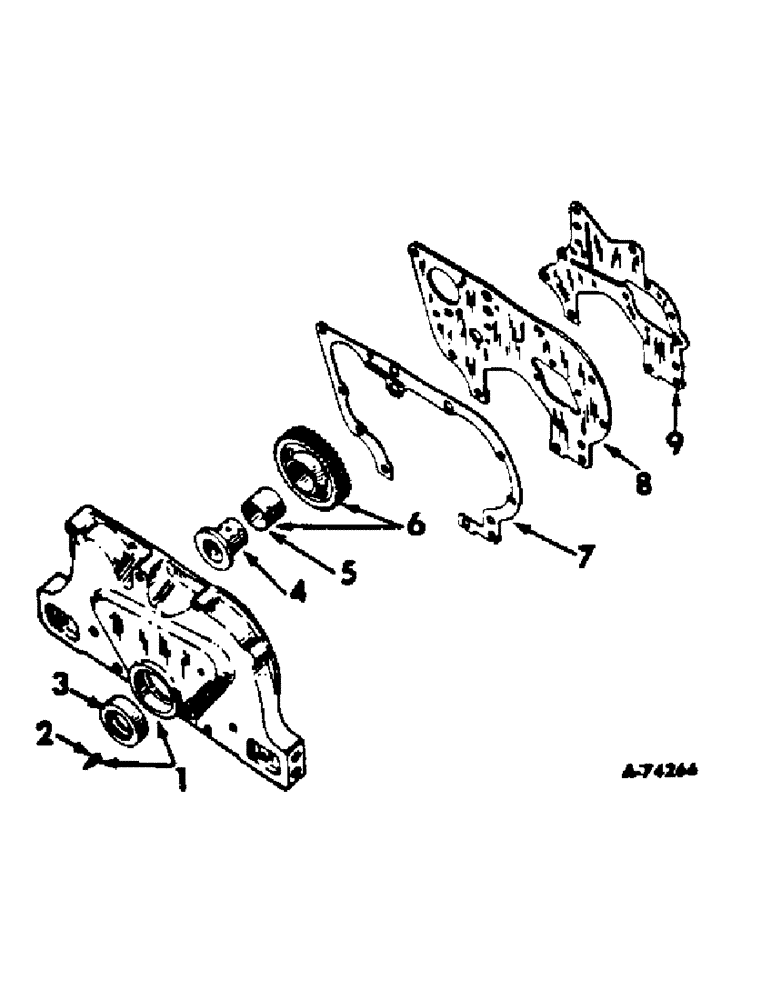

Запчасти Case IH C-291 (D-12) - CRANKCASE FRONT COVER AND IDLER GEAR

1

532364R11

COVER ASSY, crankcase front, Farmall 766 tractors

1шт.

1

384488R31

COVER

ASSY, crankcase front, all machines except Farmall 766 tractors

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 hex-hd cap

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

367572R1

INDICATOR

POINTER, timing

1шт.

3

391976R91

OIL SEAL

crankshaft oil

1шт.

4

367580R11

HUB

SHAFT ASSEMBLY, idler gear, 616, 622 cotton pickers and 706 tractors w/serial no. 6019 and below

1шт.

4

530973R1

HOUSING

HUB, idler gear, 666 and 686 gear drive tractors, 666, 70 and 86 hydrostatic drive tractors, 616, 622 cotton pickers, Farmall 766 tractors

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

615090R1

WASHER

17/32 x 2 x 11 ga

1шт.

5

367578R1

BUSHING

idler gear, 616, 622 cotton pickers and 706 tractors w/ serial no. 6019 and below

1шт.

5

398034R1

BUSHING

idler gear, 666 and 686 gear drive tractors, 666, 70 and 86 hydrostatic drive tractors, 616, 622 cotton pickers, Farmall 706 w/serial no. 6020 and above, 756 and Farmall 766 tractors

1шт.

6

367577R11

PINION

GEAR ASSY, idler, 616, 622 cotton pickers and 706 tractors w/ serial no. 6019 and below

1шт.

6

398032R1

PINION

GEAR ASSY, idler, 666 and 686 gear drive tractors, 666, 70 and 86 hydrostatic drive, tractors, 616, 622 cotton pickers, Farmall 706 w/serial no. 6020 and above, 756 and Farmall 766 tractors

1шт.

7

367574R1

GASKET

crankcase front cover

1шт.

8

367524R2

PLATE, crankcase front

1шт.

179383

HYDRAULIC VALVE

SCREW, 3/8-16 x 7/8 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

9

398024R1

GASKET

crankcase front plate

1шт.
