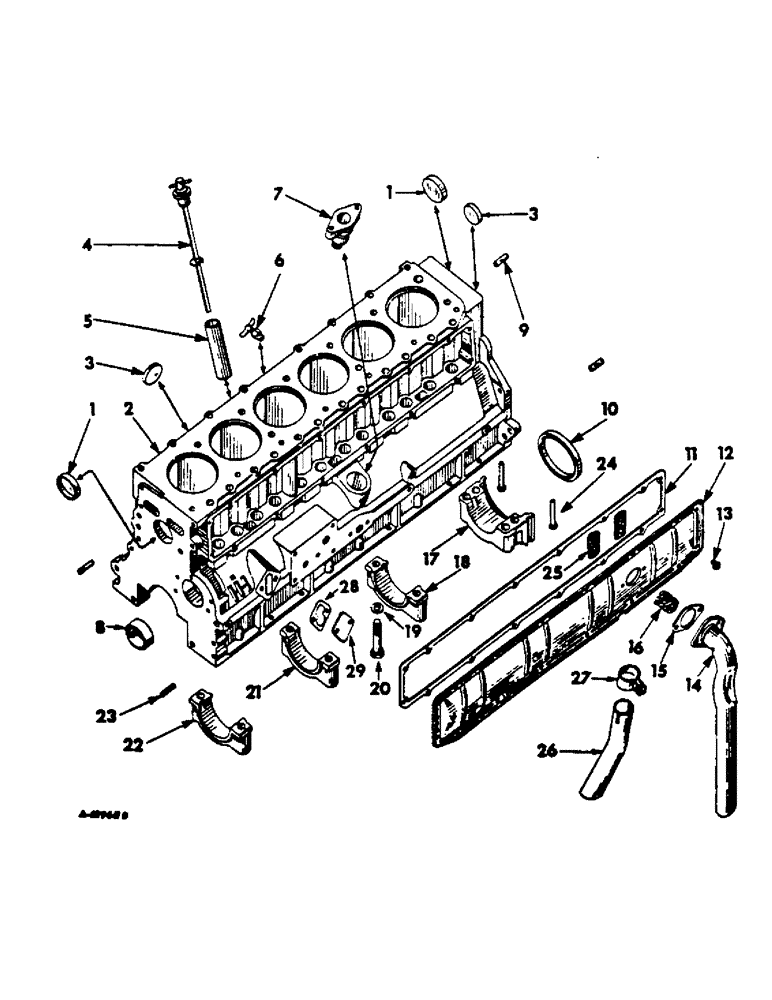

Запчасти Case IH C-291 (D-11) - CRANKCASE AND RELATED PARTS

1

20840R1

PLUG,Cup, 2", Stainless

core hole

2шт.

2

NLS

NO LONGER SERVICED

CRANKCASE ASSY, no longer available furnish skeleton service engine

1шт.

44782

PLUG, 3/8-18 auto sq-soc pipe stl

2шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8-27 auto hex-hd-soc

3шт.

3

379278C1

PLUG

core hole, replaces 70128R1

6шт.

4

381427R93

GAUGE ASSY.

GAGE ASSY, oil level

1шт.

5

381418R1

TUBE

oil filler

1шт.

6

103647

VALVE

COCK, 1/4 type C drain

1шт.

6

444618

PLUG

1/4-18 auto hex-hd pipe

1шт.

7

367513R2

ADAPTER

distributor mounting

1шт.

8

70259R2

BUSHING

BEARING, camshaft, front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING, camshaft, intermediate front

1шт.

8

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

BEARING, camshaft, intermediate rear

1шт.

8

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BEARING, camshaft, rear (replaces 702612R1)

1шт.

9

371699R2

STUD

DOWEL, engine rear support

2шт.

9

376353R1

DOWEL, engine rear suppor, .030 O/S

2шт.

10

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

crankshaft rear oil

1шт.

11

369982R1

GASKET

valve push rod cover

1шт.

12

315970R91

PLATE ASSY.

COVER W/TWO ELEMENTS, valve push rod, when cover is ordered remove old element from breather pipe if so equipped

1шт.

13

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW W/WASHER, 1/4-20 x 1/2 slt-truss-hd

16шт.

14

368429R31

VENTILATION PIPE

PIPE ASSY, breather

1шт.

374587R91

SCREW W/WASHER, 1/4-20 x 1/2 slt-rd hd

2шт.

15

369981R1

GASKET

breather pipe

1шт.

16

369442R1

ELEMENT

breather pipe, fits inside breather pipe

1шт.

17

306674R1

CAP, crankshaft rear bearing, partially finished see service manual

1шт.

18

306673R1

CYLINDER END CAP

CAP, crankshaft rear intermediate bearing, partially finished see service manual

1шт.

19

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

bearing cap bolt

10шт.

20

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

21

306672R1

CYLINDER END CAP

CAP, crankshaft front intermediate bearing, partially finished see service manual

1шт.

22

30671R1

CAP, crankshaft front bearing, partially finished see service manual

1шт.

23

NLS

NO LONGER SERVICED

PIN, 1/2 x 1-1/4 dowel

2шт.

24

310665R1

PLUG

rear bearing cap filler

2шт.

25

315849R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional with 349363R1, used w/cover 315970R91

1шт.

25

349363R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional with 315849R1, used w/cover 315970R91

1шт.

26

(Not used in this application)

1шт.

27

(Not used in this application)

1шт.

28

532496R1

GASKET

pump mounting pad cover, all machines except 616 and 622 cotton pickers

1шт.

29

356243R1

COVER, fuel pump mounting pad, all machines except 616 and 622 cotton pickers

1шт.

179814

SPACER

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
