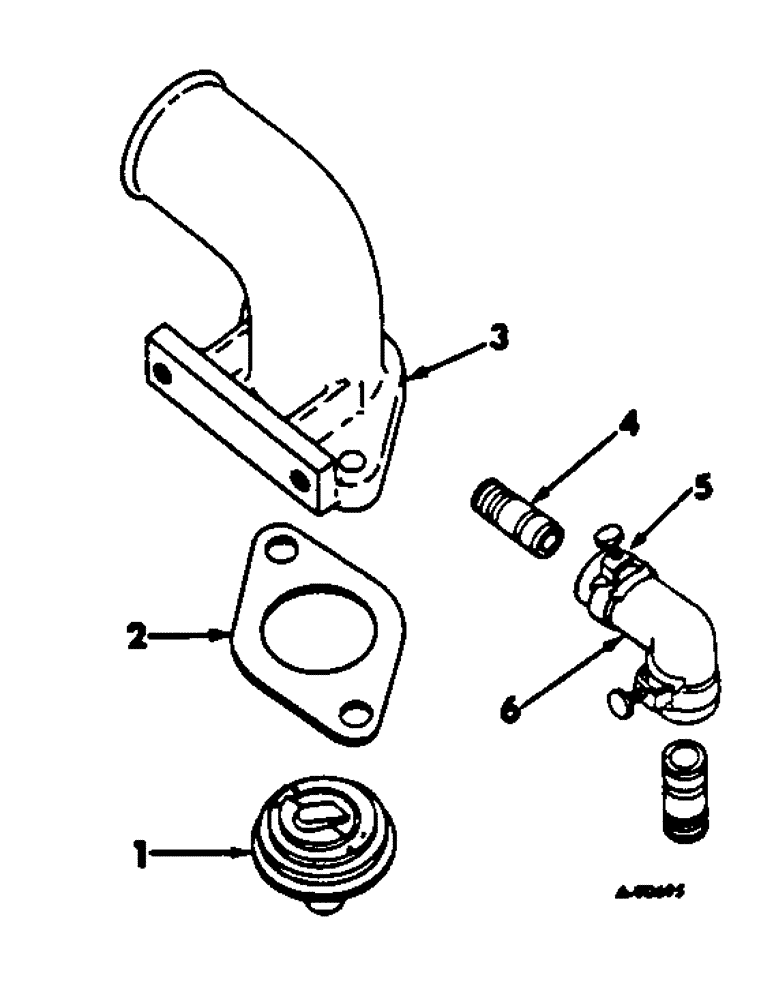

Запчасти Case IH C-291 (D-09) - HOUSING AND THERMOSTAT, 616 AND 622 COTTON PICKERS

1

108120R92

THERMOSTAT

167 deg to 172 deg

1шт.

2

368505R1

GASKET

water outlet

1шт.

3

395405R1

ELBOW, water outlet

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, 7/16 x 1-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

169193R1

PIPE

NIPPLE, water by-pass, gasoline engines only

2шт.

5

240369R91

CLAMP, by-pass elbow, gasoline engines only

2шт.

6

169192R1

HOSE

ELBOW, water by-pass, gasoline engines only

1шт.
