Запчасти Case IH C-282 (C-06) - CONNECTING RODS AND PISTONS

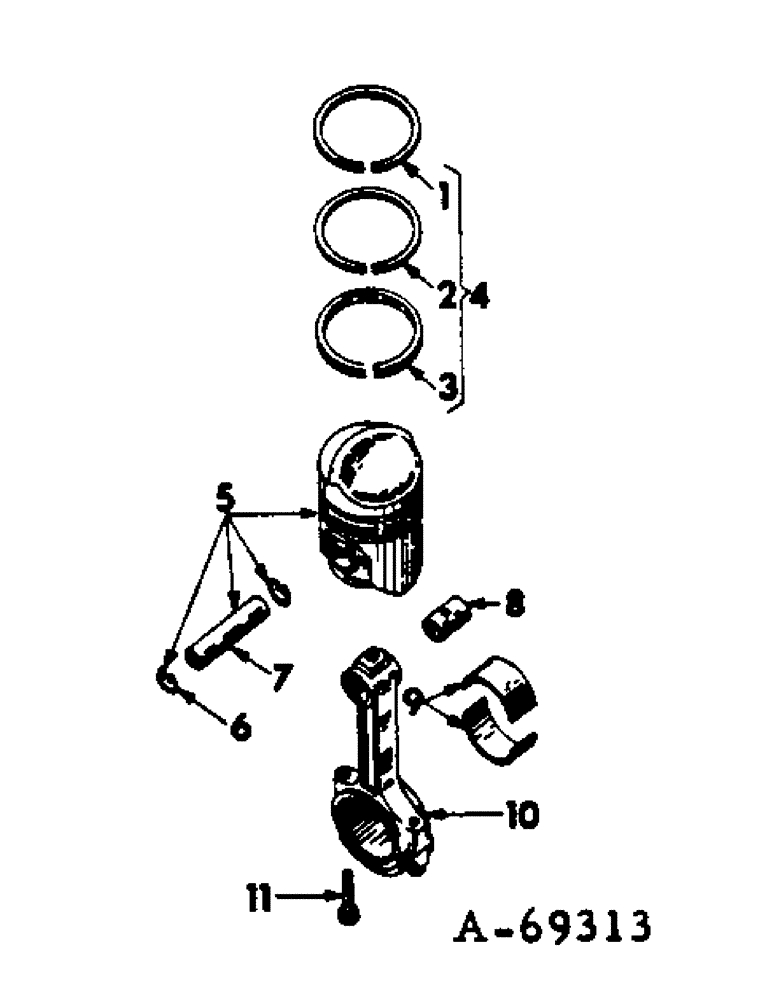

Схема запчастей Case IH C-282 - (C-06) - CONNECTING RODS AND PISTONS
5
6
10
1
9
8
11
7
2
3
4

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

6шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

6шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

1шт.

4

539367R1

RING, SET

RING SET, piston, consists of two compression and one oil regulating ring, std and .010 O/S

6шт.

4

539368R1

SET

RING SET, piston, consists of two compression and one oil regulating ring, .020 O/S

6шт.

4

539369R1

SET

RING SET, piston, consists of two compression and one oil regulating ring, .030 O/S

6шт.

4

539370R1

SET

RING SET, piston, consists of two compression and one oil regulating ring, .040 O/S

6шт.

5

378202R95

PISTON ASSY

standard

6шт.

5

378203R95

PISTON ASSY, .010 oversize

6шт.

5

378204R95

PISTON

ASSY, .020 oversize

6шт.

5

378205R95

PISTON

ASSY, .030 oversize

6шт.

5

378206R95

PISTON ASSY

.040 oversize

6шт.

5

378212R95

PISTON ASSY, high altitude, standard

6шт.

5

378213R95

PISTON ASSY, high altitude, .010 oversize

6шт.

5

378214R95

PISTON ASSY, high altitude, .020 oversize

6шт.

5

378215R95

PISTON ASSY, high altitude, .030 oversize

6шт.

5

378216R95

PISTON ASSY, high altitude, .040 oversize

6шт.

6

19517D

SPECIAL RING

RING, piston retaining

12шт.

7

278271R1

PISTON PIN

PIN, piston, standard

6шт.

7

278326R1

PIN

piston, .005 oversize

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, standard

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 undersize

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 undersize

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 undersize

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 undersize

6шт.

10

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364913R1, assy, connecting

6шт.

11

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, replaces 316366R1

12шт.
