(C-40) - MUFFLER AND EXHAUST PIPE, 403 HILLSIDE COMBINES WITH SERIAL NO. 501 TO 5000

Запчасти Case IH C-282 (C-40) - MUFFLER AND EXHAUST PIPE, 403 HILLSIDE COMBINES WITH SERIAL NO. 501 TO 5000

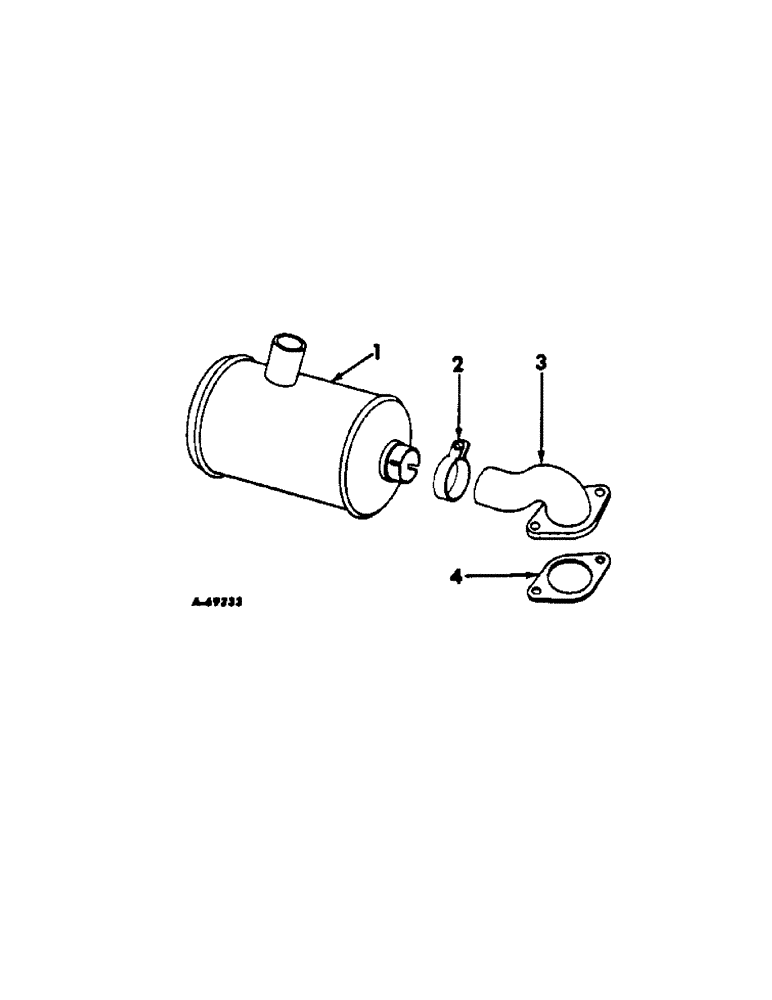

Схема запчастей Case IH C-282 - (C-40) - MUFFLER AND EXHAUST PIPE, 403 HILLSIDE COMBINES WITH SERIAL NO. 501 TO 5000
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

379370R91

NO LONGER SERVICED

MUFFLER, exhaust

1шт.

2

31790DA

CLAMP

exhaust muffler

1шт.

102635

NUT,3/8"-16, G5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

316400R1

ELBOW

exhaust pipe

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3/8 x 1 cap screw

2шт.

4

369282R2

GASKET

exhaust pipe elbow

1шт.
