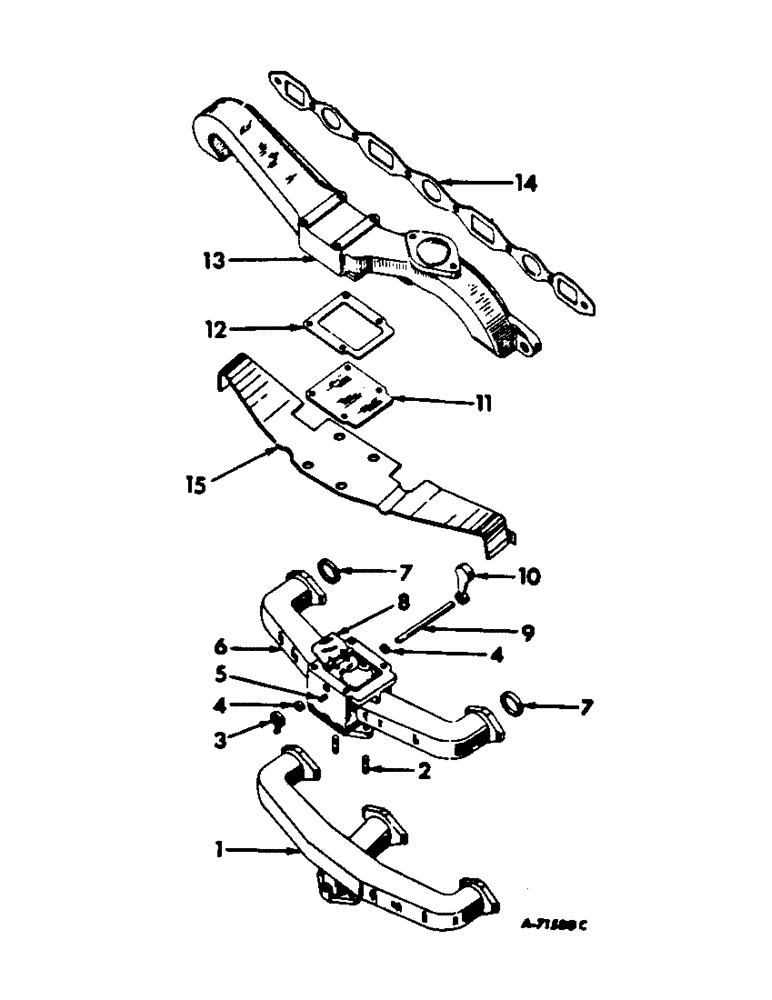

Запчасти Case IH C-282 (C-39) - EXHAUST SYSTEM

1

371097R11

MANIFOLD W/PLUG ASSY, intake, LP gas

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 sq-hd pipe

1шт.

2

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

37-1316

DOWEL,3/16" x 1"

PIN, 3/16 x 1 dowel

1шт.

6

367251R11

MANIFOLD ASSY, intake, composed of, (2) bushing 69443R1, (1) manifold 367261R1 (NSS), (1) pin 141159, (1) plug 445671, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8 sq-hd pipe blug

1шт.

7

98573HA

GUIDE

PILOT, intake manifold, 403 combines w/serial no. 5145 & below and 503 combines w/serial no. 2133 and below

2шт.

7

138733R1

CONTROL

PILOT, intake manifold, 403 combines w/serial no. 5416 & above and 503 combines w/serial no. 2134 and above

1шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold, LP gas

1шт.

102635

NUT,3/8"-16, G5

4шт.

114506

NUT

3/8-16 hex jam

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

4шт.

12

85868R1

GASKET

intake to exhaust manifold

1шт.

13

368550R11

MANIFOLD

ASSY, exhaust, 403 combines w/serial no. 5000 & below and combines

1шт.

13

384290R21

MANIFOLD

ASSY, exhaust, 403 combines w/serial no. 5001 & above and 503 combine w/gear drive & provision for spark arrester & combines with hydrostatic transmission

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , Taper 3/16" x 1/2", Type A

1шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

400877R1

WASHER

13/32 x 7/8 x 7 ga washer

8шт.

14

400878R1

GASKET

intake and exhaust manifold

1шт.

15

384509R21

SHIELD ASSY, intake manifold heat, LP gas

1шт.
