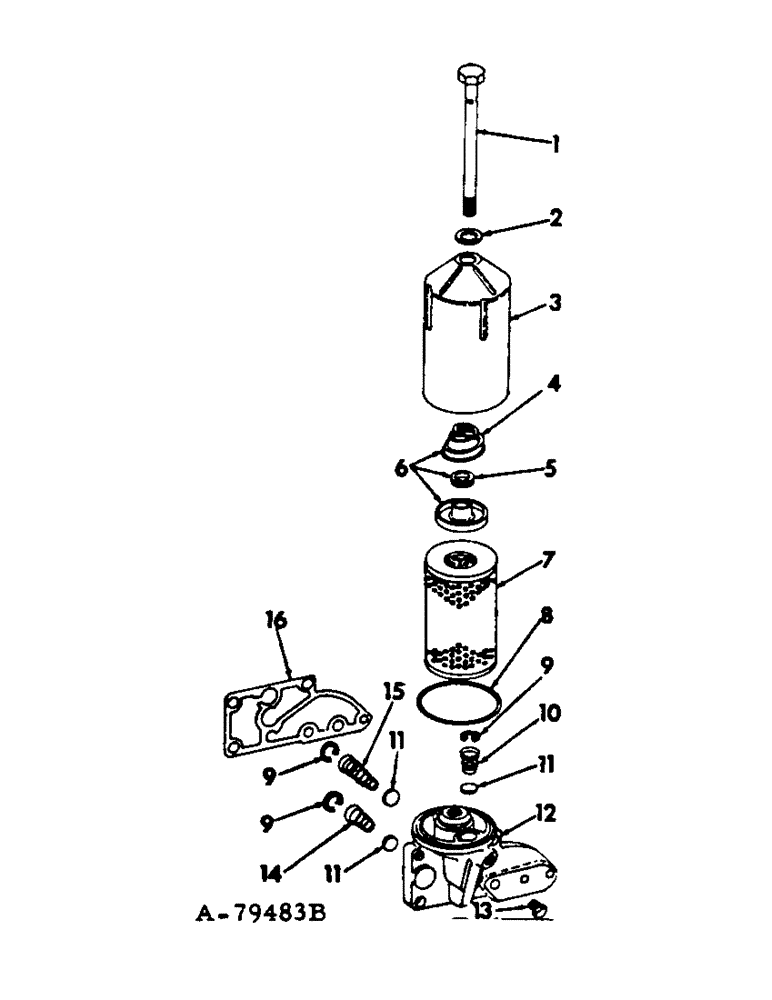

Запчасти Case IH C-282 (C-36) - OIL FILTER, CARTRIDGE TYPE, 403 COMBINES WITH S/N 5146 & ABOVE, 503 COMBINES WITH S/N 2005 & ABOVE

384522R92

FILTER

ASSY, oil, less ref. no. 16, order filter assy, 534178R91 and gasket, 534196R1 or conversion package 538837R91

1шт.

1

384530R11

TUBE ASSY, oil filter center 7.4" Length

1шт.

2

384532R1

GASKET

center tube

1шт.

3

384529R1

CASE

oil filter

1шт.

4

384536R1

SPRING, element hold-down

1шт.

5

384535R1

WASHER

GROMMENT, element retaining washer

1шт.

6

384533R91

RETAINER

RETAINING ASSY, element

1шт.

7

279994R91

ELEMENT

oil filter

1шт.

8

304854R1

RING

GASKET, oil filter case

1шт.

9

303322R1

SNAP RING,1.00", Int, #100

3шт.

10

384525R1

SPRING

check valve

1шт.

11

534180R1

VALVE

oil filter base, repalces 384528R2

3шт.

12

384523R12

BASE

oil filter, order filter assy, 534178R91 and gasket 534196R1

1шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

8/16-14 x 1-1/4 hex-hd cap screw

3шт.

NLS

NO LONGER SERVICED

7/16-14 x 1-1/2 hex-hd cap screw

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

379299R1

PLUG, 1/4 hex-hd pipe

1шт.

14

384526R2

VALVE SPRING

SPRING, pressure regulating

1шт.

15

384527R1

SPRING

element by-pass

1шт.

16

384537R2

GASKET

oil filte base

1шт.
