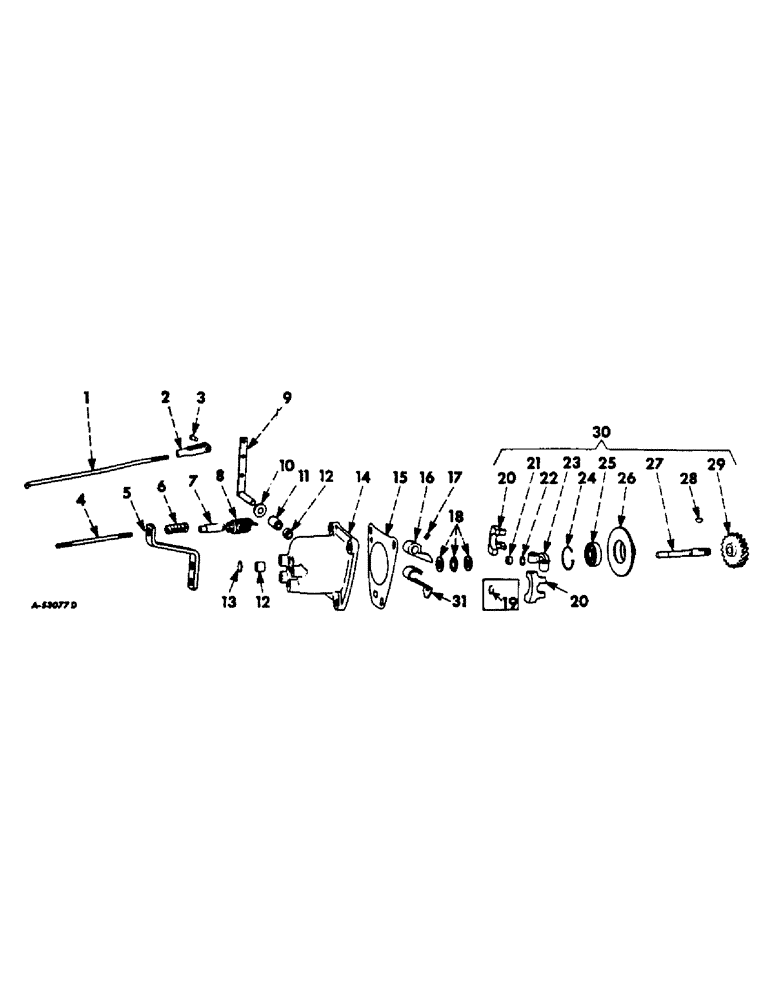

Запчасти Case IH C-282 (C-34) - GOVERNOR

378245R92

GOVERNOR ASSY, composed of parts listed in this unit except as noted

1шт.

1

368335R1

ROD

, Serial Range: governor-carburetor

1шт.

Not included in the governor assembly.

1шт.

137130

PIN

1/16 x 7/16 cotter pin

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4NF adjustable rod end

1шт.

Not included in the governor assembly.

1шт.

25-114

NUT,1/4"-28, G5

1/4NF nut

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 rod end

1шт.

Not included in the governor assembly.

1шт.

137130

PIN

1/16 x 7/16 cotter pin

1шт.

4

378249R1

ROD, governor spring retainer

1шт.

Not included in the governor assembly.

1шт.

25-114

NUT,1/4"-28, G5

1/4NF nut

1шт.

5

400930R1

BRACKET, governor spring

1шт.

Not included in the governor assembly.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

367660R1

BOLT,Hex, 1/2" - 20 x 1.19"

ADJUSTER, governor spring

1шт.

Not included in the governor assembly.

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

1/2NF jam nut

1шт.

7

367740R1

PIN

RETAINER, governor spring

1шт.

Not included in the governor assembly.

1шт.

8

367739R2

SPRING

governor

1шт.

Not included in the governor assembly.

1шт.

9

378130R91

LEVER

AND ROCKSHAFT ASSY, governor

1шт.

10

361123R91

OIL SEAL

OIL SEAL, governor rockshaft

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172530

PLUG,Exp, 11/16"

11/16 dia expansion

1шт.

14

367651R31

HOUSING ASSY, governor, composed of, (1) bearing 369593R1, (2) bearing 369594R1, (1) housing 367651R3 (NSS), (1) nut 25038HA, (1) nut 114492, (1) oil seal 361123R91, (1) plug 172530, (1) screw 127842

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

127842

YOKE

1/4NF x 1-1/2 slt-rd-hd mach screw

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

367669R1

GASKET

governor housing

1шт.

Not included in the governor assembly.

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust for set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

ASSY, governor thrust ball, also order sleeve, 387878R1 for engines w/serial number 5145 and below

1шт.

19

251460R1

RING, SNAP

RING, governor sleeve stop, for C-282 engines w/serial number, Serial Range: 501-5145

1шт.

20

378247R1

WEIGHT, governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , ESNA 1/4" x 1 3/8", Slotted

2шт.

21

387878R1

SLEEVE

governor thurst, also order bearing 393405R91, for engines w/serial number 5145 and below

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

governor shaft

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, no. 211 Woodruff

1шт.

29

367664R1

PINION

GEAR, governor, 19 teeth

1шт.

864337R1

NUT, 7/16-20 hex lock

1шт.

30

378246R92

GEAR

AND WEIGHT ASSY, governor

1шт.

31

374795R1

VALVE SPRING

SPRING, bumper

1шт.

386012R91

PACKAGE, governor overhaul

1шт.
