Запчасти Case IH C-282 (C-33) - FUEL FILTER, 403 LP GAS COMBINES AND FARMALL, INTERNATIONAL 706 L.P. GAS TRACTORS

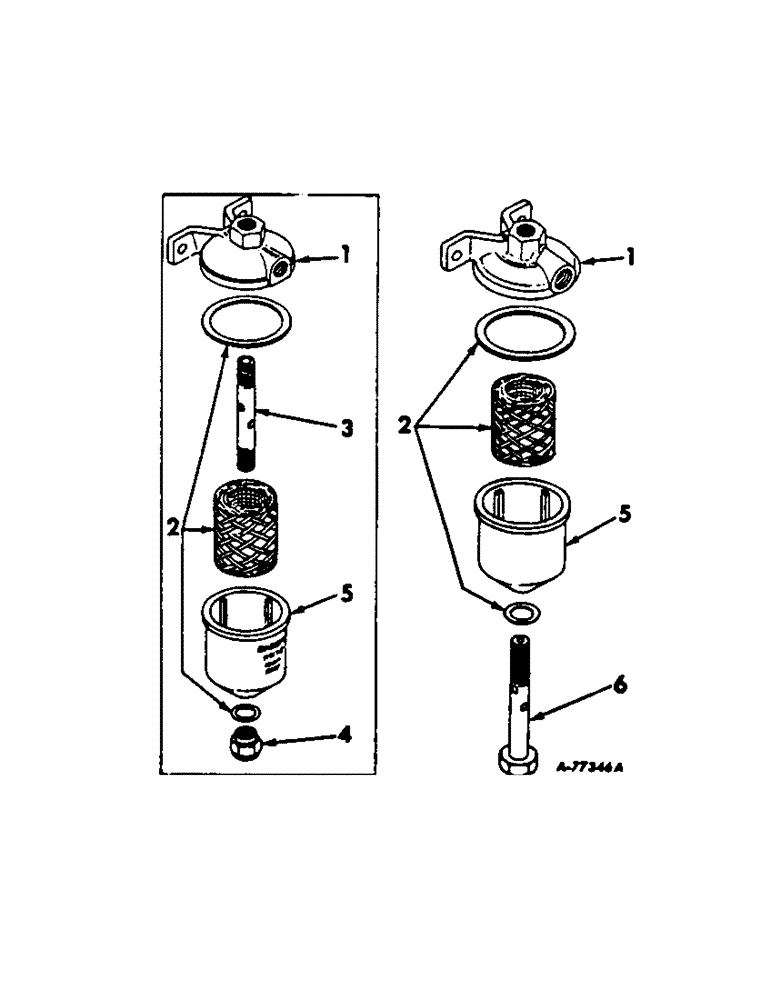

Схема запчастей Case IH C-282 - (C-33) - FUEL FILTER, 403 LP GAS COMBINES AND FARMALL, INTERNATIONAL 706 L.P. GAS TRACTORS
5
1
2
4
5
3
2
1
6

Артикул

Название

Примечание

Количество

346818R91

FILTER ASSY, fuel

1шт.

1

NSS

NOT SOLD SEPARAT

TOP, filter, not serviced separately, order, filter assy

1шт.

2

64400DC

ELEMENT

ASSY, fuel filter

1шт.

3

64402D

STUD, filter

1шт.

4

64403D

NUT, filter stud

1шт.

5

NSS

NOT SOLD SEPARAT

BOTTOM, filter, not serviced separately, order filter assy

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT, filter bottom, not serviced separately, order filter assy

1шт.

Выбрано товаров: 7
