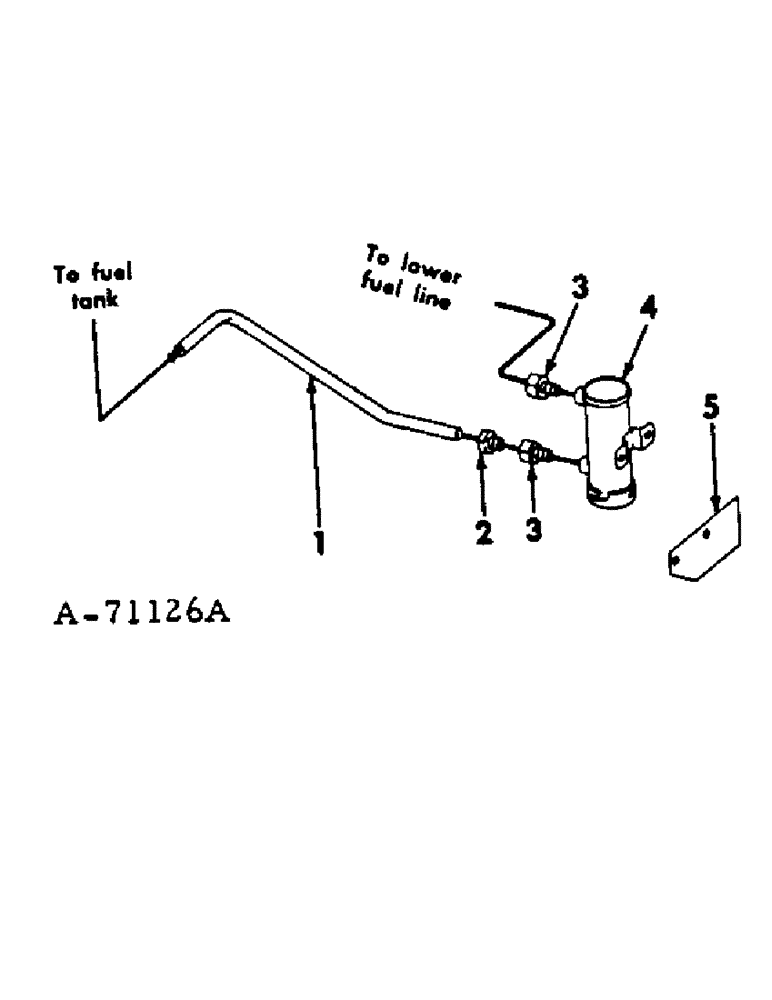

Запчасти Case IH C-282 (C-30) - FUEL PUMP, LINE AND SUPPORT, BENDIX, LP GAS ENGINES

1

LINE, fuel pump to fuel tank, order 12-5/16 inches of 5/16 OD cop tubing from a 50 ft. roll marked 995062R1

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

2шт.

3

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.

4

631259R91

PUMP

ASSY, fuel, for components see list of parts under details of fuel pump

1шт.

5

629311R1

BRACKET, fuel pump

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 mach bolt

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
