Запчасти Case IH C-282 (C-30[A]) - FUEL PUMP, LINE & SUPPORT, STEWART WARNER SERIAL NO. 2195 AND BELOW 403 COMBINES

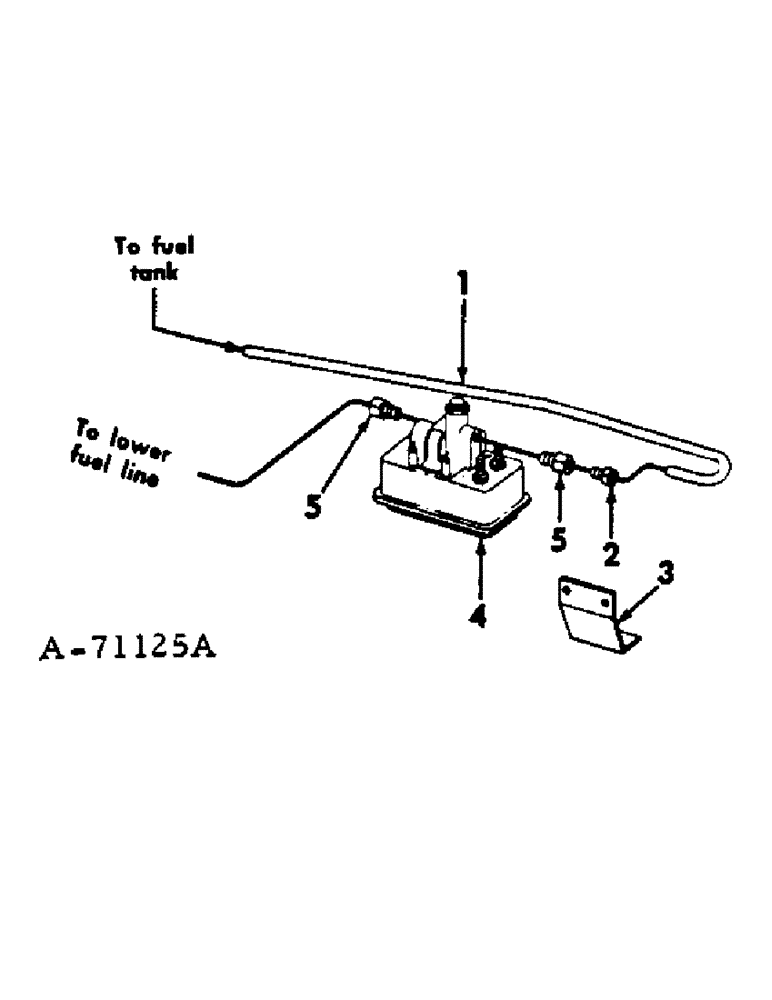

Схема запчастей Case IH C-282 - (C-30[A]) - FUEL PUMP, LINE & SUPPORT, STEWART WARNER SERIAL NO. 2195 AND BELOW 403 COMBINES
5
5
2
1
3
4

Артикул

Название

Примечание

Количество

1

LINE, fuel pump to fuel tank, order 12-5/16 inches of 5/16 OD cop. tubing from a 50 ft. roll marked 995062R1

1шт.

2

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

1шт.

3

628939R1

BRACKET, fuel pump

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 cap screw

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.

4

631321R92

PUMP ASSY, fuel, order kit assy 935366R91 listed under fuel pump serivce kit, optional with pump, 631259R91

1шт.

5

40755D

HYD CONNECTOR,1/4" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.

Выбрано товаров: 8
