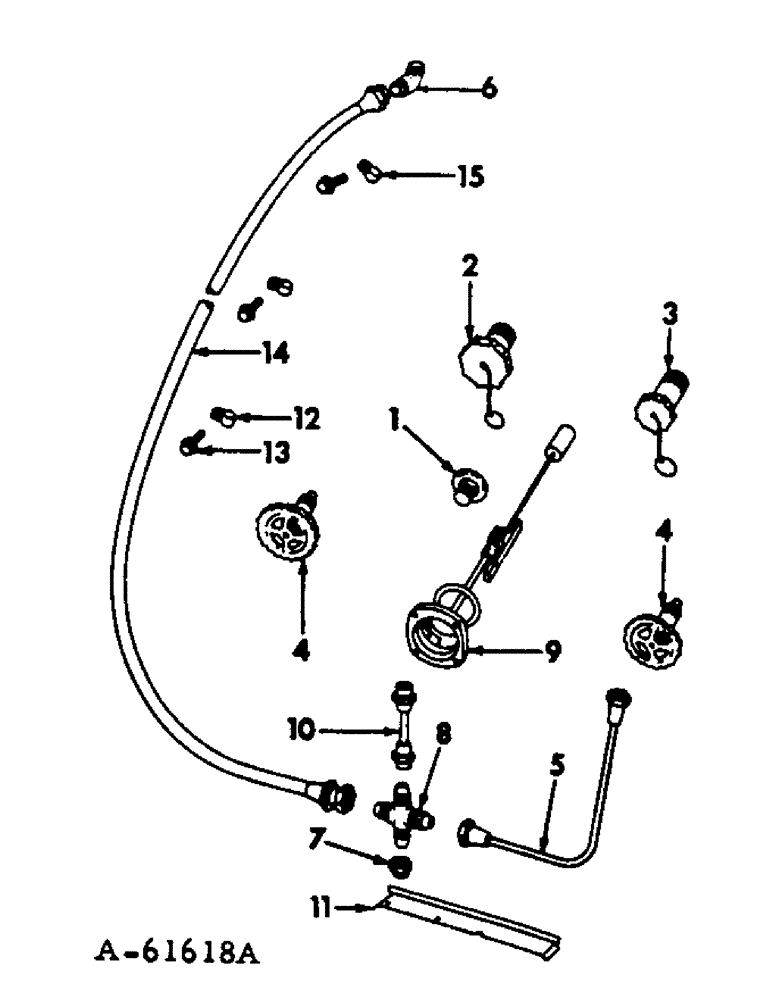

Запчасти Case IH C-282 (C-27) - LP GAS VALVES AND CONNECTIONS, LP GAS ENGINES

1

363693R91

VALVE W/DIAL ASSY, fixed, Bastian blessing, optional w/376514R91, consists of the following service parts, (1) stem, vent 369048R91, (1) plate, instruction 369049R1, (1) ring, retaining 369050R1

1шт.

1

376514R91

VALVE W/DIAL ASSY, Fisher Governor Co., optional w/363693R91, consists of the following service parts, (1) plate, instruction 376524R1, (1) stem, vent 369048R91, (1) ring retaining 369050R1

1шт.

2

363688R91

VALVE ASSY, filler back check, Bastian-Blessing, optional, w/376516R91, consists of the following service parts, (1) washer, cap 359825R1, (1) cap and chain 369045R91

1шт.

2

376516R91

VALVE ASSY, filler back check, Fisher Governor Co., optional w/363688R91, consists of the following service parts, (1) washer, cap 369825R1, (1) cap and chain 376521R91

1шт.

3

109567R91

VALVE ASSY, vapor and excess flow, Bastian-Blessing, optional w/376517R91, consists of the following service parts (1) washer 359815R1, (1) cap and chain 369051R91

1шт.

3

376517R91

VALVE ASSY, vapor and excess flow, Fisher Governor Co., optional w/109567R91, consists of the following service parts (1) cap and chain 376519R91, (1) washer 359815R1

1шт.

4

109850R91

VALVE W/HAND WHEEL AND EXCESS FLOW ASSY, service check, Bastian- Blessing, consists of the following service parts, (1) hand wheel 369043R1, (1) screw and washer 369044R1

1шт.

5

574110R11

LINE W/NUTS ASSY, liquid valve to cross fuel

1шт.

6

109563R1

ELBOW

1/4 NPTF x 5/8-18, 90 deg flared tube, fuel tank to filter hose

1шт.

7

661778R1

CAP, cross fitting

1шт.

8

661777R1

CROSS, fuel line fitting

1шт.

9

662599R91

GUIDE ASSY, magnetic liquid level

1шт.

10

574111R11

LINE W/NUTS ASSY, vapor to cross fuel

1шт.

11

572953R1

SHIELD, fuel line

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd washer face cutting

1шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

1шт.

12

1052533

CLIP, fuel tank to filter hose

2шт.

13

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 hex-hd washer face cutting

3шт.

615009R1

WASHER

17/64 x 3/4 x 16 ga washer

2шт.

14

570063R91

HOSE ASSY, fuel tank to fuel filter

1шт.

15

571716R1

CLIP, fuel tank to filter hose upper

1шт.
