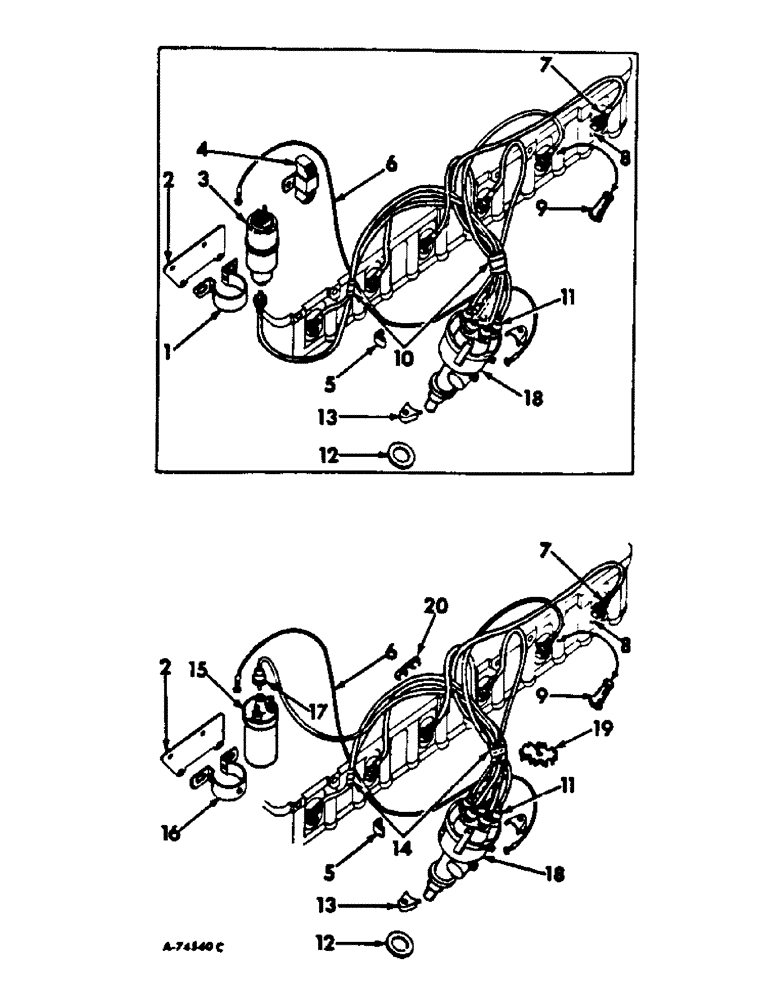

Запчасти Case IH C-282 (C-18) - SPARK PLUGS, COIL, CABLES & DISTRIBUTOR

1

CLAMP, coil, furnish package 396546R93

1шт.

2

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

7/16 x 1/2 cap screw

2шт.

3

COIL ASSY, ignition, furnish package 396546R93

1шт.

4

368573R91

RESISTOR

ignition coil, 403 combines w/serial no. 5511 and below & 503 combines w/serial no. 3250 and below

1шт.

5

370535R1

CLIP

coil to distributor cable

1шт.

6

368267R91

CABLE

coil to distributor primary

1шт.

7

RD18Y

SPARK PLUG

W/GASKET, 37762H, gasoline engines only, not used with cotton pickers or combines, light service, champion

6шт.

7

RD15Y

SPARK PLUG

W/GASKET, 37762H, moderate service, champion

6шт.

7

18R52

SPARK PLUG W/GASKET, 37762H, moderate service, prestolite

6шт.

7

RD6

SPARK PLUG

W/GASKET, 37762H, gasoline engines only, heavy service, champion

6шт.

8

37762H

GASKET

spark plug

6шт.

9

371430R1

INSULATOR

spark plug terminal, optional w/438502C1

6шт.

9

438502C1

BOOT

INSULATOR, spark plug, optional w/371430R1

6шт.

10

CABLE ASSY, spark plug, furnish spark plug cable service package 407488R1

1шт.

11

251553R1

BOOT

NIPPLE, distributor cap terminal

1шт.

12

353936R2

GASKET

distributor

2шт.

13

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

407488R1

KIT,Spark Plug Wire

PACKAGE, spark plug cable, conists of, (6) spark plug cables (NSS), (7) coil to distributor cable (NSS), (7) nipples (NSS), (9) terminals (NSS), (1) strap, lock (NSS)

1шт.

15

396546R93

KIT

PACKAGE, ignition coil service, consists of, (1) clamp (NSS), (1) coil (NSS), (1) nipple 372875R1, (2) nut 120614, (2) washer 120217

1шт.

15

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

177056

HUB

SCREW, no. 10NF x 1-1/2 r/hds tap

1шт.

16

CLAMP, ignition coil, furnish ignition coil service package 396546R93

1шт.

17

372875R1

NIPPLE, LUBE

NIPPLE, coil terminal

1шт.

18

DISTRIBUTOR, for components see list of parts under details of distributor

1шт.

19

536582R1

RETAINER, spark plug cable, 7 wire

1шт.

20

531981R1

RETAINER, spark plug cable, 2 wire

4шт.
