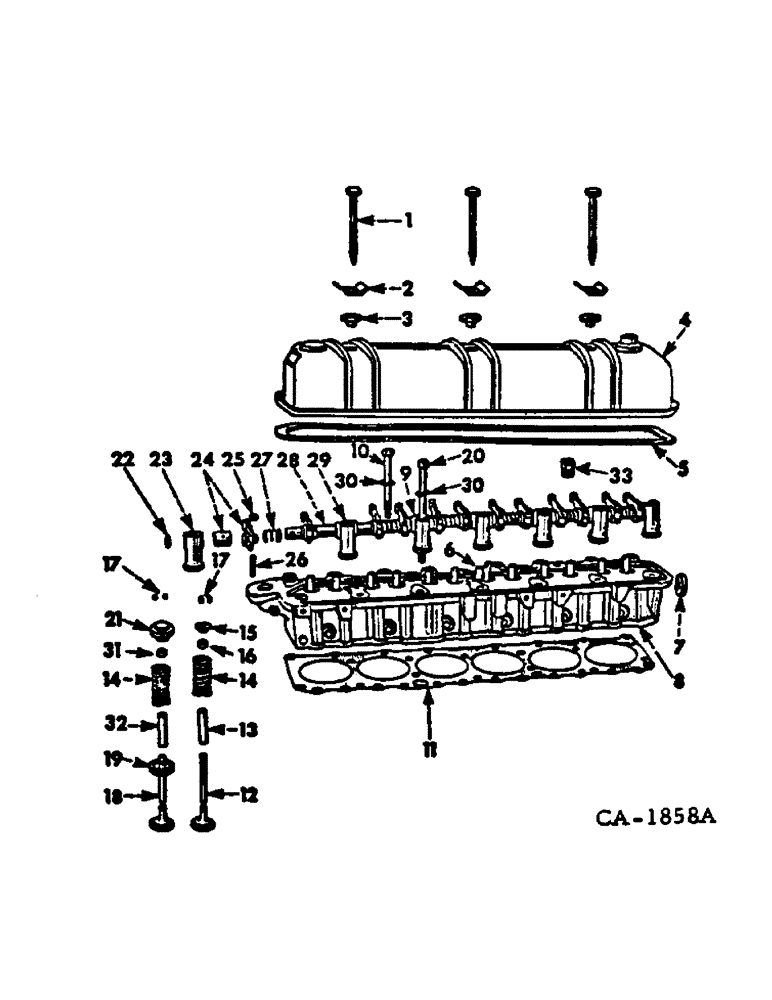

Запчасти Case IH C-282 (C-16) - CYLINDER HEAD AND RELATED PARTS

1

168144R1

BOLT (SPREADER)

BOLT, valve cover

3шт.

Q399

WASHER

11/32 x 1 x 16 ga

3шт.

2

370208R1

SUPPORT

STIFFENER, valve cover

3шт.

3

164420R1

GROMMET

valve cover

3шт.

4

164419R1

COVER ASSY, valve, engine serial no. 5705 and below

1шт.

4

378617R91

COVER

ASSY, valve, engine serial no. 5706 and above

1шт.

5

369983R2

GASKET

valve cover

1шт.

6

69500R1

SLEEVE

DOWEL, valve lever shaft intermediate #2, #4, #6 bracket

3шт.

7

70128R1

PLUG,Cup, 1 5/8"

core hole

1шт.

8

380812R93

HEAD ASSY.

HEAD ASSY, cylinder w/out valves, order head assy 383665R96 and six valves 234276R1, 403 combines w/serial no. 5145 and below & 503 combines w/serial no. 2133 and below

1шт.

Consists of, (6) guide (NSS), (6) guide (NSS), (1) plug 444782, (1) head (NSS), (1) plug 70128R1, (6) seat 126373R1, (2) screw 179812

1шт.

8

383665R96

CYLINDER HEAD

ASSY, cylinder w/out valves, 403 combines w/serial no. 5146 and above & 503 combines w/serial no. 2134 and above

1шт.

Consists of, (6) guide (NSS), (6) guide (NSS), (1) head (NSS), (2) pilot 138733R1, (1) plug 70128R1, (1) plug 444782, (2) screw 179852, (2) screw 179812, (6) seat 126373R1

1шт.

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8-18 auto-soc-hd pipe, LP gas combines only

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto sq-hd pipe

1шт.

9

164425R1

BRACKET

valve lever shaft intermediate #3 and #5

1шт.

10

69722R1

BOLT,Hex, 1/2" - 13 x 4.688", Gr 8

cyl head, short

8шт.

11

164418R2

CYLINDER HEAD GASKET

cylinder head

1шт.

12

234275R1

VALVE

intake, 403 combines w/serial no. 7087 and below & 503 combines w/serial no. 2133 and below

1шт.

12

234276R1

VALVE

intake, 403 combines w/serial no. 7088 and above & 503 combines w/serial no. 2134 and above

1шт.

13

535229R1

GUIDE

intake valve stem

6шт.

14

367192R1

SPRING

valve

12шт.

15

151167R3

SEAT

RETAINER, valve spring

6шт.

16

535166R1

RUBBER SEAL

intake valve stem

6шт.

17

41339D

KEY

valve spring retainer

24шт.

18

372699R3

LOCK VALVE

VALVE, exhaust, stellite faced

6шт.

19

126373R1

SEAT

exhaust valve, std

6шт.

19

126231R1

SEAT

exhaust valve, .015 O/S

6шт.

19

83488R2

SEAT, exhaust valve, .030 O/S

6шт.

20

367190R1

BOLT,Cyl Hd, 1/2" x 7 3/4", Gr 8

BOLT, cyl head, lone

7шт.

21

375604R91

SEAT

ROTO COIL, exhaust valve

6шт.

22

109544R1

PLUG

3/4 dia expansion

2шт.

23

164422R1

BRACKET

valve lever shaft front and rear

2шт.

24

164432R91

ARM

LEVER W/NUT, 133093R1 and screw 16067 DA assy, valve

12шт.

25

133093R1

NUT,Hex, 3/8" - 24

valve lever adj screw

12шт.

26

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adj

12шт.

27

35619H

SPRING

valve lever

6шт.

28

76953R3

SHAFT

valve lever

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

2шт.

29

164423R11

BRACKET

W/DOWEL, 69500R1 assy, valve lever shaft intermediate #2, #4, #6

3шт.

30

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

cyl head bolt

15шт.

31

866834R1

BAFFLE

SEAL, exhaust valve stem

6шт.

32

237248R1

GUIDE

exhaust valve stem

6шт.

33

51510DA

RESTRICTOR

BUSHING, capillary tube bulb installation

1шт.

76770R91

CAP

oil filler, engine serial 5705 and below

1шт.

87351R1

GASKET

oil filler cap, engine serial no. 5705 and below

1шт.

378352R91

METER

glow plug

1шт.
