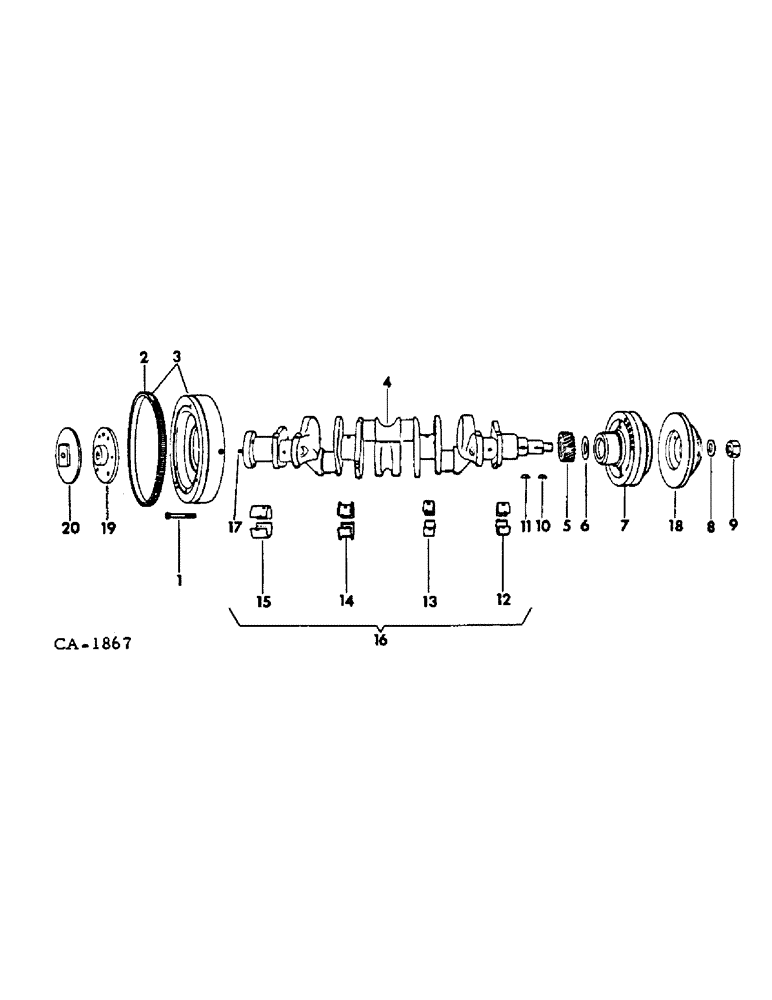

Запчасти Case IH C-282 (C-14) - CRANKSHAFT, FLYWHEEL AND BEARINGS

1

19466R1

BOLT,Hex, 7/16" - 20 x 1 3/4", Gr 8

, Serial Range: flywheel-crankshaft

6шт.

2

95691H

GEAR

flywheel ring, 143 teeth

1шт.

3

377945R11

FLYWHEEL ASSY

1шт.

4

382356R91

CRANKSHAFT

ASSY, std, replaces 367269R91, combines w/serial no. 946 and below furnish intermediate rear main bearing assy 367282R91

1шт.

Composed of, (6) bearing assy 367408R11, (1) bearing assy 367285R91, (1) bearing assy 332267R91, (1) bearing assy 367276R91, (1) bearing assy 367279R91, (1) crankshaft (NSS), (1) pin 82970R1

1шт.

5

367272R1

PINION

GEAR, crankshaft

1шт.

6

71763R2

DEFLECTOR

SLINGER, crankshaft oil

1шт.

7

338952R91

PULLEY

DAMPER AND PULLEY ASSY, fan drive

1шт.

8

70109R1

WASHER

starting crank nut

1шт.

9

425-1516

JAM NUT,Jam, 1"-14, G5

1-1/4 hex jam crankshaft

1шт.

10

117984

BUCKET TOOTH KEY

KEY, 5/16 x 1-3/8 Woodruff no. 23, damper and pulley assy

1шт.

11

103462

KEY

3/16 x 1 Woodruff no. 13, crankshaft gear

1шт.

12

367276R91

BEARING LINER

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

12

367300R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

12

376670R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

12

376683R91

BEARING ASSY

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

12

367288R91

BEARING ASSY

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

13

367279R91

BEARING ASSY,45.95mm ID x 50.8mm OD x 27.33mm W

ASSY, crankshaft intermediate, 2 halves, std

1шт.

13

367303R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate, 2 halves, .002 U/S

1шт.

13

376673R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate front, 2 halves, .010 U/S

1шт.

13

376686R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate, 2 halves, .020 U/S

1шт.

13

367291R91

BEARING

ASSY, crankshaft intermediate front, 2 halves, .030 U/S

1шт.

14

367282R91

BEARING ASSY,90.4mm ID x 95.25mm OD x 38.35mm W

ASSY, crankshaft intermediate rear, 2 halves, std, combines w/serial no. 946 and below

1шт.

14

332267R91

BEARING SET

BEARING ASSY, crankshaft intermediate rear, 2 halves, std, combines w/serial no. 947 and above

1шт.

14

367306R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .002 U/S, combines w/serial no. 946 and below

1шт.

14

332273R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .002 U/S, combines w/serial no. 947 and above

1шт.

14

376676R91

JOURNAL

BEARING ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, combines w/serial no. 946 and below

1шт.

14

332276R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .010 U/S, combines w/serial no. 947 and above

1шт.

14

376689R91

BEARING ASSY

BEARING ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, combines w/serial no. 946 and below

1шт.

14

332279R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .020 U/S, combines w/serial no. 947 and above

1шт.

14

369294R91

BEARING ASSY, crankshaft intermediate rear, 2 halves, .030 U/S, combines w/serial no. 946 and below

1шт.

14

332270R91

BEARING SET

ASSY, crankshaft intermediate rear, 2 halves, .030 U/S, combines w/serial no. 947 and above

1шт.

15

367285R91

BEARING

ASSY, crankshaft rear, 2 halves, std

1шт.

15

367309R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

15

376679R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

15

376692R91

BEARING ASSY

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

15

367297R91

BEARING ASSY

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

16

NOT FURNISHED IN SET, furnish individual bearing assy

1шт.

17

82970R1

STUD

PIN, flywheel to crankshaft dowel

1шт.

18

Not used in this application

1шт.

19

377944R1

FLANGE

drive shaft, combines w/belt drive

1шт.

20

389667R11

HUB

FLANGE, drive shaft, combines with hydrostatic transmission

1шт.
