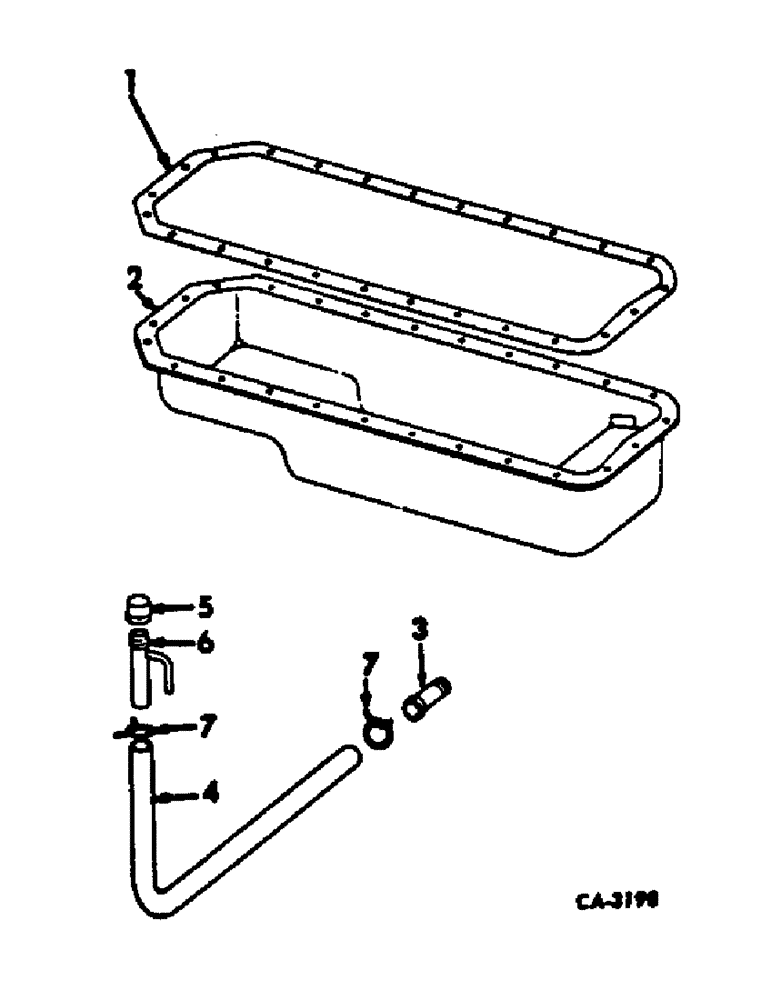

Запчасти Case IH C-282 (C-13) - OIL PAN AND GASKET

1

369984R1

GASKET

oil pan

1шт.

2

601380C11

OIL RESERVOIR

PAN ASSY, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Oil pan Hex, 5/16"-18 x 3/4", G5, Full Thd

25шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga washer

5шт.

444630

PLUG,Hex Hd, 1/2"-14

1/2-14 hex-hd pipe

1шт.

3

628087R1

PIPE, oil pan drain

1шт.

4

628089R1

HOSE, oil drain

1шт.

5

119101

CAP,1/2" NPT

oil drain pipe

1шт.

6

628086R91

PIPE ASSY, oil drain

1шт.

7

628091R1

CLAMP, oil drain hose

2шт.
