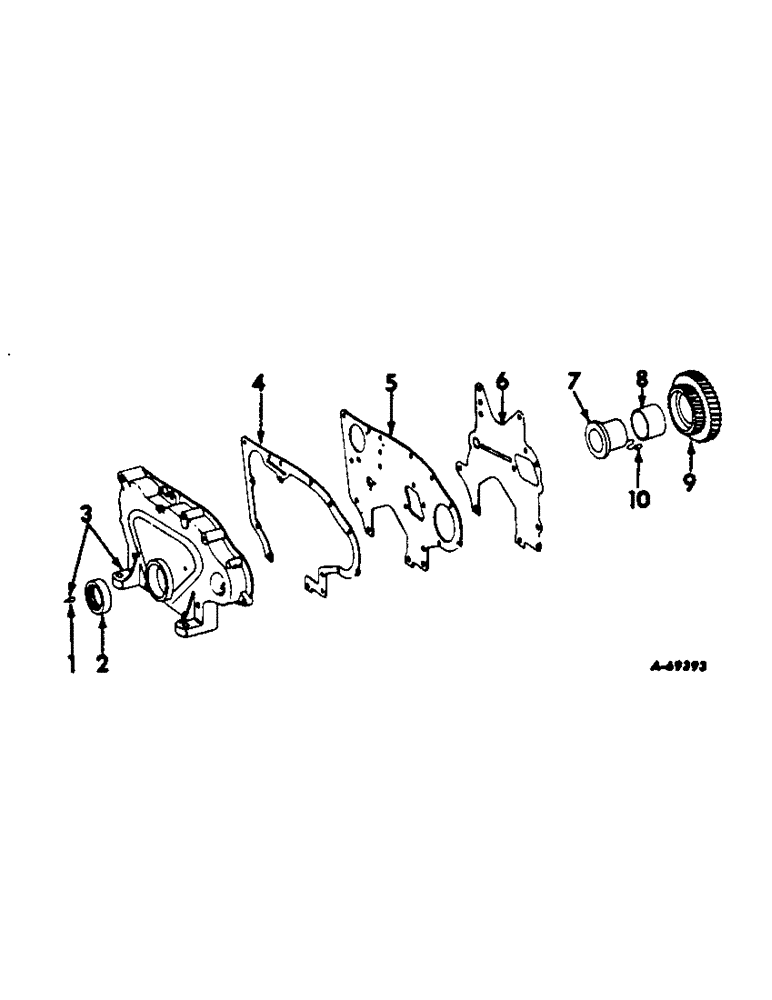

Запчасти Case IH C-282 (C-12) - CRANKCASE FRONT COVER AND IDLER GEAR

1

367572R1

INDICATOR

POINTER, timing

2шт.

2

391976R91

OIL SEAL

crankshaft oil

1шт.

3

378236R31

COVER ASSY, crankshaft front

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 cap screw

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

4

378237R1

GASKET

crankcase front cover

1шт.

5

378238R3

PLATE, crankcase front

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

398024R1

GASKET

crankcase front plate

1шт.

7

367580R11

HUB

SHAFT W/DOWEL, 141150, idler gear, 403 Hillside combines w/serial no. 5512 and below & 503 combines w/serial no. 6151 and below

1шт.

179890

LATCH

1/2 x 2-1/4 cap screw

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

530973R1

HOUSING

HUB, idler gear, 403 Hillside combines w/serial no. 5513 and above & 503 combines w/serial no. 6152 and above

1шт.

179887

CABLE

1шт.

22042R1

WASHER

17/32 x 2 x 11 ga (replaces 615090R1)

1шт.

8

367578R1

BUSHING

idler gear, 403 Hillside combines w/serial no. 5512 and below & 503 combines w/serial no. 6151 and below

1шт.

8

398034R1

BUSHING

idler gear, 403 Hillside combines w/serial no. 5513 and above & 503 combines w/serial no. 6152 and above

1шт.

9

367577R11

PINION

GEAR W/BUSHING, idler, 403 Hillside combines w/serial no. 5512 and below & 503 combines w/serial no. 6151 and below

1шт.

9

398032R1

PINION

GEAR ASSEMBLY, idler w/bushing, 403 Hillside combines w/serial no. 5513 and above & 503 combines w/serial no. 6152 and above

1шт.

10

141150

DOWEL, 3/16 x 7/16 idler gear shaft, 403 Hillside combines w/ serial no. 5512 and below & 503 combines w/serial no. 6151 and below

1шт.
