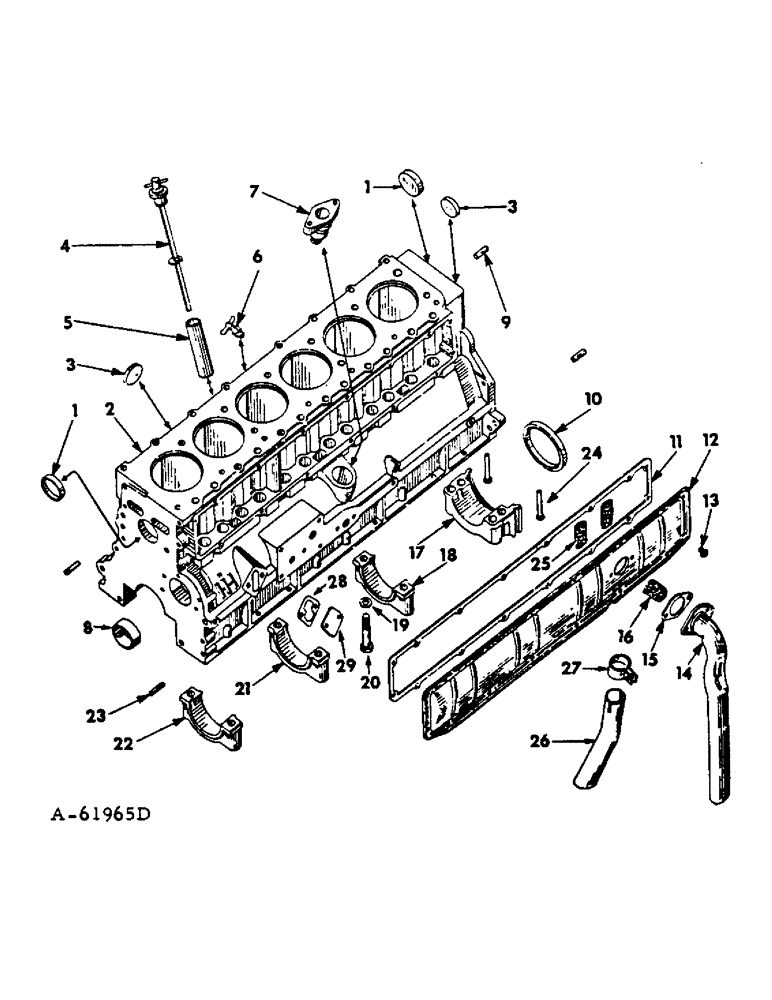

Запчасти Case IH C-282 (C-10) - CRANKCASE AND RELATED PARTS

1

20840R1

PLUG,Cup, 2", Stainless

core hole

2шт.

2

NLS

NO LONGER SERVICED

CRANKCASE ASSY, no longer available, furnish skeleton service engine

1шт.

444852

TERMINAL CONNECTOR,16 - 20mm

PLUG, 1/8 auto hex soc pipe

3шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8 short sq-socket pipe plug

2шт.

3

379278C1

PLUG

core hole, replaces 70128R1

6шт.

4

368986R91

GAUGE ASSY.

GAGE ASSY, oil level

1шт.

5

368985R2

TUBE

oil filler

1шт.

6

103647

VALVE

COCK, 1/4 type C drain

1шт.

6

FO444618

PLUG

1/4 auto hex-hd pipe

1шт.

7

367513R2

ADAPTER

distributor mounting

1шт.

8

70259R2

BUSHING

BEARING, camshaft, front

1шт.

8

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING, camshaft, intermediate front

1шт.

8

70261R2

BUSHING,23.02mm ID x 55.92mm OD x 27.23mm L

BEARING, camshaft, intermediate rear

1шт.

8

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BEARING, camshaft, rear

1шт.

9

371699R2

STUD

DOWEL, engine rear support, std

2шт.

9

376353R1

DOWEL, engine rear support, .030 oversize

2шт.

10

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

OIL SEAL, crankshaft rear

1шт.

11

369982R1

GASKET

push rod cover

1шт.

12

315970R91

PLATE ASSY.

COVER ASSY, push rod

1шт.

13

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW W/WASHER, 1/4-20 x 1/2 slt-truss-hd mach

16шт.

14

368429R31

VENTILATION PIPE

PIPE ASSY, breather

1шт.

374587R91

SCREW W/WASHER, 1/4-20 x 1/2 slt-rd-hd mach

2шт.

15

369981R1

GASKET

breather pipe

1шт.

16

369442R1

ELEMENT

breather pipe

1шт.

17

306674R1

CAP, crankshaft rear bearing, partially finished see service manual

1шт.

18

306673R1

CYLINDER END CAP

CAP, crankshaft rear intermediate brg, partially finished see service manual

1шт.

19

58516H

WASHER,17/32" x 1 1/16" x .095", HDN

crankshaft bearing cap bolt

10шт.

20

70133R1

BOLT

BOLT, crankshaft bearing cap

10шт.

21

306672R1

CYLINDER END CAP

CAP, crankshaft front intermediate brg, partially finished see service manual

1шт.

22

306671R1

CAP, crankshaft front brg, partially finished see service manual

1шт.

23

NLS

NO LONGER SERVICED

DOWEL, 1/4 x 1-1/4 crankshaft front plate and cover

2шт.

24

310665R1

PLUG

rear bearing cap filler

2шт.

25

315849R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional w/349363R1

1шт.

25

349363R1

FILTER CARTRIDGE

ELEMENT, breather pipe, optional w/315849R1

1шт.

26

Not used in this application

1шт.

27

Not used in this application

1шт.

28

Not used in this application

1шт.

29

Not used in this application

1шт.

444854

PLUG,Hex Soc, 1/8"-27 NPTF

U/8-27 auto hex-soc-hd drain

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 auto hex-soc-hd pipe

1шт.
