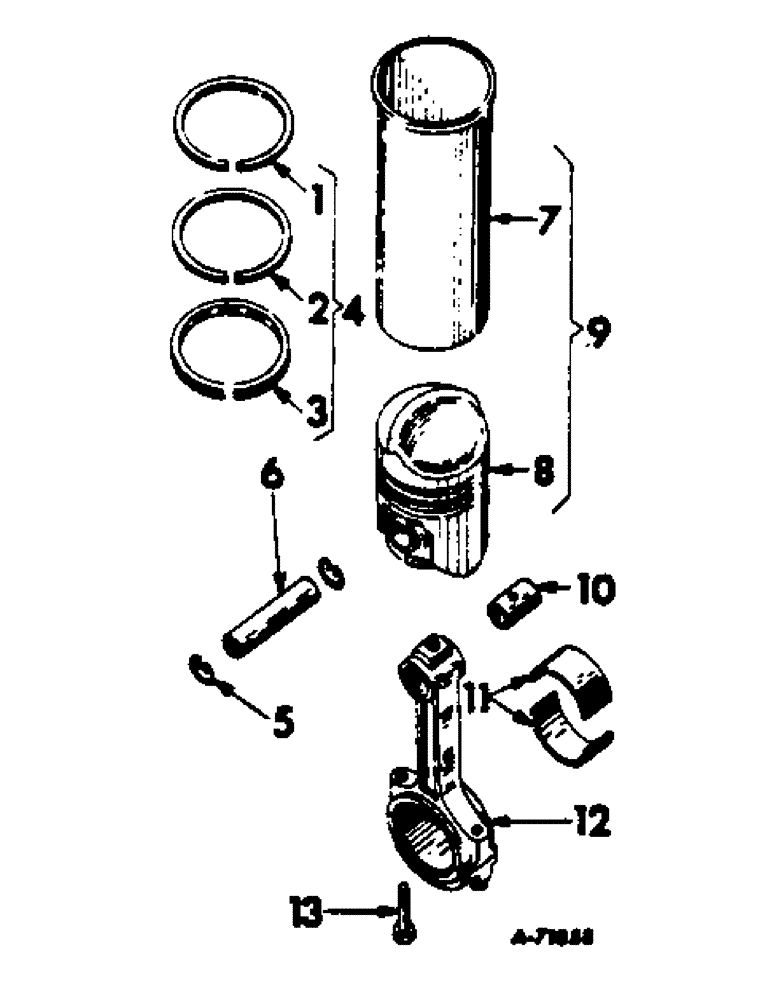

Запчасти Case IH C-263 (B-08) - CONNECTING RODS AND SLEEVE SETS, 656 AND 706 TRACTORS

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

6шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately, order piston ring set

6шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring set

6шт.

4

539379R2

SET

RING SET, piston, consists of two compression and one oil regulating ring, std and .010 O/S

6шт.

5

19517D

SPECIAL RING

RING, piston pin retainer

12шт.

6

278271R1

PISTON PIN

PIN, piston

6шт.

6

278326R1

PIN

piston, .005 oversize

6шт.

7

SLEEVE, cylinder, order sleeve, piston & rings assy, for proper altitude

6шт.

8

PISTON, order sleeve, piston & rings assy, for proper altitude

6шт.

9

378604R98

RING, SET

SLEEVE ASSY, cylinder, standard, altitude, consists of, (1) pin 278271R1, (1) piston (NSS), (2) ring 19517D, (1) ring set 539379R2, (1) sleeve (NSS)

6шт.

9

380649R98

RING, SET

SLEEVE ASSY, cylinder, high altitude, consists of (1) pin 278271R1, (1) piston (NSS), (2) ring 19517D, (1) ring set 539379R2, (1) sleeve (NSS)

6шт.

9

530950R92

RING, SET

SLEEVE ASSY, cylinder, for use on 706 tractors equipped with C-263 gasoline & LP gas engines to convert to C-291, consists of, (1) pin 278271R1, (1) piston (NSS), (2) ring 19517D, (1) ring set 539786R1, (1) sleeve (NSS)

6шт.

10

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

11

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, standard

6шт.

11

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

11

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

11

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

11

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

12

367406R21

ROD

W/TWO BOLTS, 280318C1 and bushing, 364913R1, connecting

6шт.

13

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, replaces 316366R1

12шт.
