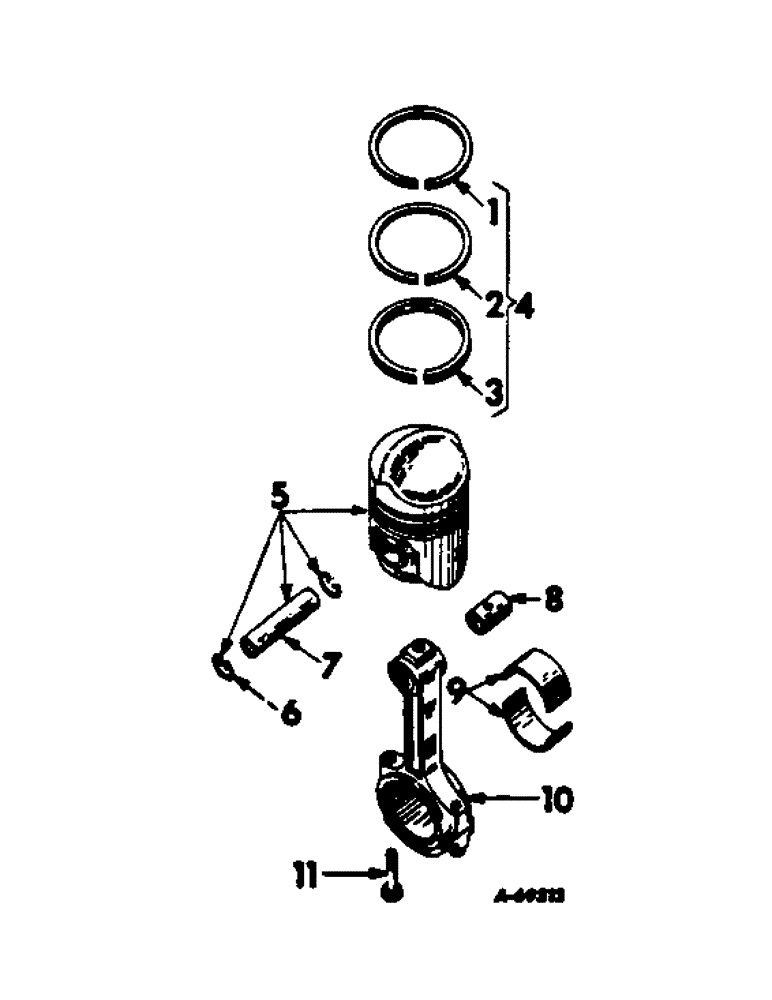

Запчасти Case IH C-263 (B-07) - CONNECTING RODS AND PISTONS, 403, 615 COMBINES AND 50 FORAGE HARVESTER

1

NSS

NOT SOLD SEPARAT

RING, compression piston, top or first groove, not serviced separately, order piston ring set

6шт.

2

NSS

NOT SOLD SEPARAT

RING, compression piston, second groove, not serviced separately order piston ring set

1шт.

3

NSS

NOT SOLD SEPARAT

RING, oil regulating piston, third or bottom groove, not separately, order piston ring set

6шт.

4

539379R2

SET

RING SET, piston, consists of two compression and one oil regulating ring, std and .010 O/S

6шт.

4

539380R2

SET

RING SET, piston, consists of two compression and one oil regulating ring, .020 O/S

6шт.

4

539381R2

SET

RING SET, piston, consists of two compression and one oil regulating ring, .030 O/S

6шт.

4

539382R2

RING, SET

RING SET, piston, consists of two compression and one oil regulating ring, .040 O/S

6шт.

5

379817R95

PISTON

ASSY, std

6шт.

5

379818R95

PISTON ASSY, .010 O/S

6шт.

5

379819R95

PISTON

ASSY, .020 O/S

6шт.

5

379820R95

PISTON

ASSY, .030 O/S

6шт.

5

379821R95

PISTON ASSY

.040 O/S

6шт.

5

379822R95

PISTON ASSY, high attitude, std

6шт.

5

379823R95

PISTON ASSY, high attitude, .010 O/S

6шт.

5

379824R95

PISTON ASSY, high attitude, .020 O/S

6шт.

5

379825R95

PISTON ASSY, high attitude, .030 O/S

6шт.

5

379826R95

PISTON ASSY, high attitude, .040 O/S

6шт.

6

19517D

SPECIAL RING

RING, piston pin retaining

12шт.

7

278271R1

PISTON PIN

PIN, piston, std

6шт.

7

278326R1

PIN

piston, .005 O/S

6шт.

8

364913R1

BUSHING,21.84mm ID x 23.66mm OD x 33.2mm L

piston pin

6шт.

9

367408R11

BEARING ASSY,60.84mm ID x 64.01mm OD x 25.48mm W

BEARING ASSY, connecting rod, 2 halves, std

6шт.

9

367632R11

BEARING ASSY

BEARING ASSY, connecting rod, 2 halves, .002 U/S

6шт.

9

376666R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .010 U/S

6шт.

9

376668R11

CONN. ROD SHELL

BEARING ASSY, connecting rod, 2 halves, .020 U/S

6шт.

9

367631R11

BEARING ASSY

ASSY, connecting rod, 2 halves, .030 U/S

6шт.

10

367406R21

ROD

W/TWO BOLTS, 380318C1 and bushing, 364913R1, connecting

6шт.

11

280318C1

BOLT,Hex, 3/8" - 24 x 1.875"

connecting rod, replaces 316366R1

1шт.
