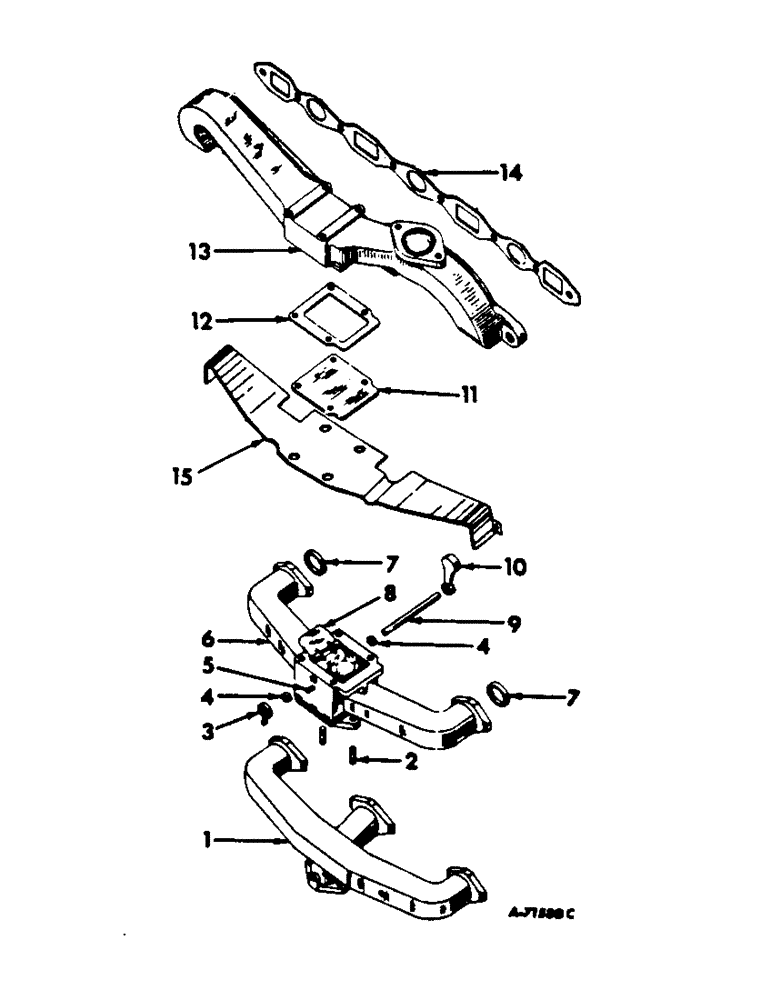

Запчасти Case IH C-263 (B-65) - EXHAUST SYSTEM

1

383377R11

MANIFOLD W/PLUG ASSY, intake, 656 and 706 LP gas tractors

1шт.

1

371097R11

MANIFOLD W/PLUG ASSY, intake, 403 LP gas combines

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd pipe

1шт.

2

12215D

STUD

carburetor

2шт.

103026

NUT,3/8"-24, G5

2шт.

3

82958R2

VALVE SPRING

SPRING, thermostat heat control valve

1шт.

4

69443R1

BUSHING

manifold heat control

2шт.

5

37-1316

DOWEL,3/16" x 1"

PIN, 3/16 x 1 dowel (replaces 141159)

1шт.

6

367261R11

MANIFOLD

ASSY, intake, gasoline engines, consists of, (2) bushing 69443R1, (1) manifold (NSS), (1) pin 141159, (1) plug 445671, (1) shaft 82959R1, (1) spring 82958R2, (2) stud 12215D, (1) valve 85700R1, (1) weight 85699R1

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto-Hex Socket

1шт.

7

98573HA

GUIDE

PILOT, intake manifold, 403 combines w/serial no. 7087 and below

2шт.

7

138733R1

CONTROL

PILOT, intake manifold, all machines and 403 combines with serial no. 7088 and above

2шт.

8

85700R1

VALVE

manifold heat control

1шт.

9

82959R1

SHAFT

manifold heat control valve

1шт.

10

85699R1

WEIGHT

manifold heat control

1шт.

11

371098R1

COVER, exhaust manifold, 403 LP gas combines and 706 LP gas tractors

1шт.

102635

NUT,3/8"-16, G5

4шт.

114503

JAM NUT,Jam, 3/8"-16, G5

4шт.

381784R1

BOLT,Hex, 3/8" - 16 x 3 3/8", Gr 8

SCREW, 3/8-16 x 3-3/8 hex-hd cap

4шт.

12

85868R1

GASKET

intake to exhause manifold

1шт.

13

368550R11

MANIFOLD

ASSY, exhaust, 403 combines, 50 forage harvesters, and international 656 tractors

1шт.

13

384290R21

MANIFOLD

ASSY, exhaust, 403 combines equipped w/spark arrester and 706 tractors

1шт.

13

395411R1

MANIFOLD

ASSY, exhaust, 615 combines

1шт.

13

390988R2

MANIFOLD

ASSY, exhaust, farmall 656 tractors

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, , Manifold drain hole 3/16" x 1/2", Type A

1шт.

399446R1

BOLT,Hex, 3/8" - 16 x 1 1/4"

BOLT, exhaust manifold

6шт.

399447R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

BOLT, exhaust manifold

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

400877R1

WASHER

13/32 x 7/8 x 7 ga

8шт.

14

400878R1

GASKET

intake and exhaust manifold

1шт.

15

384509R21

SHIELD ASSY, intake manifold heat, 403 LP gas combines, 656 and 706 LP gas tractors

1шт.
