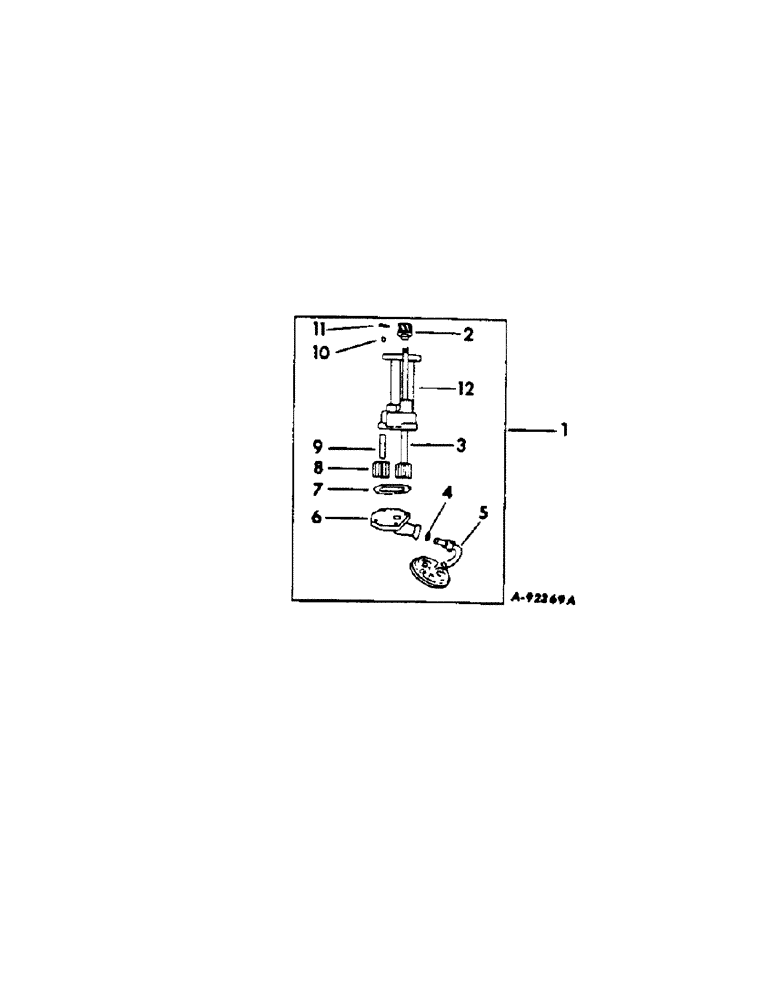

Запчасти Case IH C-263 (B-61) - OIL PUMP, 403 AND 615 COMBINES

1

230421R91

PUMP, HYDRAULIC

PUMP ASSY, oil, less ref. nos. 4 & 5

1шт.

735245C91

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1928211C1

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

69608R93

GEAR, oil pump drive

1шт.

3

230409R91

GEAR

SHAFT AND GEAR ASSY, oil pump drive

1шт.

4

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

O-RING, 9/16 x 3/4 x 3/32, oil pump screen

1шт.

5

359160R91

SCREEN

SCREEN ASSY, oil pump

1шт.

137195

PIN, cot. 1/8 x 1-1/4 phosphate coated

1шт.

6

169679R1

SPARE PART COVER, oil pump body

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

69607R1

GASKET

GASKET, oil pump cover

1шт.

8

227713R1

GEAR WHEEL

GEAR, pump body driven

1шт.

9

35647H

SHAFT

SHAFT, idler gear

1шт.

10

NLS

NO LONGER SERVICED

1/8 x 5/8 Woodruff no. 5

1шт.

11

112011

PIN,1/8" x 7/8"

PIN, 1/8 x 7/8 sq. end straight, optional with 877422R1

1шт.

11

877422R1

PIN, 1/8 x 7/8 sq. end str, optional with 112011

1шт.

12

NSS

NOT SOLD SEPARAT

BODY, oil pump, not serviced separately, order pump assy

1шт.
