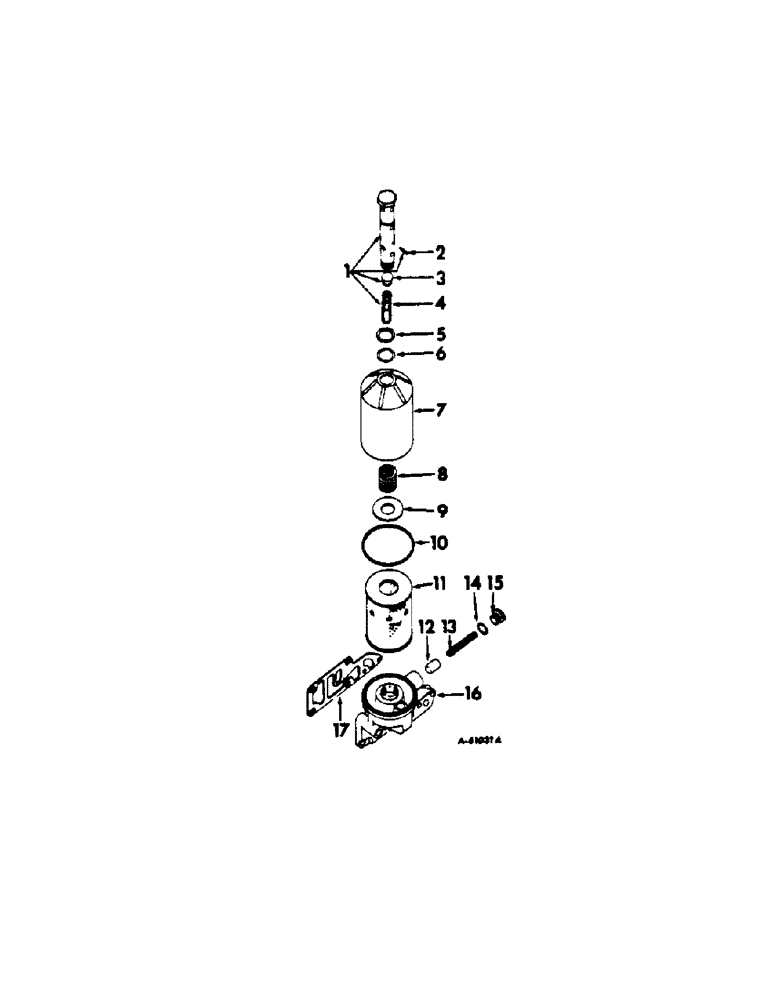

Запчасти Case IH C-263 (B-61[A]) - OIL FILTER, 403 COMBINES WITH S/N 6621 & BELOW AND 706 TRACTORS WITH ENGINE S/N 47103 & BELOW

371236R91

FILTER ASSY, oil

1шт.

1

304005R91

FILTER CARTRIDGE

TUBE ASSY, center

1шт.

2

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, , by-pass valve & spring retainer 5/32" x 1", Slotted

1шт.

103364

PIN

1/16 x 1-1/4 cot. pin

1шт.

3

304008R1

VALVE

by-pass

1шт.

4

304009R1

VALVE SPRING

SPRING, by-pass valve

1шт.

5

320273R91

GASKET

PACKAGE, center tube, consists of gasket and pin 103364

1шт.

6

Not used in this application

1шт.

7

303998R1

BODY

CASE, oil filter

1шт.

8

304011R1

SPRING

oil filter element retaining

1шт.

9

304010R1

WASHER

oil filter element retianing spring

1шт.

10

304854R1

RING

GASKET, oil filter case

1шт.

11

379994R91

ELEMENT, oil filter

1шт.

12

61261VA

LOCK VALVE

VALVE, oil pressure relief

1шт.

13

49946HA

VALVE SPRING

SPRING, oil pressure relief valve

1шт.

14

3405H

GASKET

oil pressure relief valve cap

1шт.

15

61263VA

PLUG

CAP, oil pressure relief valve

1шт.

16

NSS

NOT SOLD SEPARAT

BASE ASSY, oil filter, order filter assy, 371236R91

1шт.

17191R1

PLUG

1/4 sq-hd pipe plug

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1 cap screw

1шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 cap screw

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

371238R1

GASKET

oil filter base

1шт.

538837R91

KIT

PACKAGE, spin-on oil filter conversion, consists of, (1) adapter 397866R1, (1) bolt 397867R1, (1) reducing bushing 538969R1, (1) gasket 304854R1

1шт.
