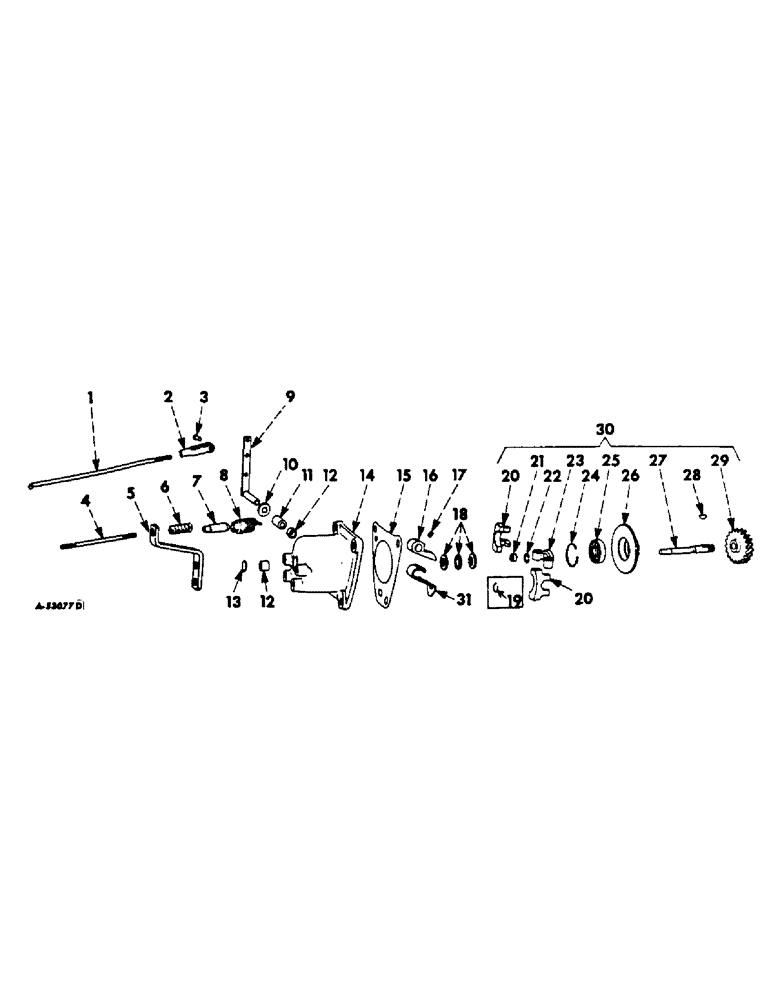

Запчасти Case IH C-263 (B-58) - GOVERNOR, ALL 403 AND 615 COMBINES

379851R92

GOVERNOR

ASSY, composed of parts listed in this unit except as noted

1шт.

1

368335R1

ROD

, Serial Range: governor-carburetor

1шт.

Not included in the governor assembly.

1шт.

137130

PIN

1/16 x 7/16 cot pin

1шт.

2

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 NF adj rod end

1шт.

Not included in the governor assembly.

1шт.

25-114

NUT,1/4"-28, G5

1/4 NF pln type 5

1шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 rod end

1шт.

Not included in the governor assembly.

1шт.

137130

PIN

1/6 x 7/16 cot pin

1шт.

4

378249R1

ROD, governor spring retainer

1шт.

Not included in the governor assembly.

1шт.

25-114

NUT,1/4"-28, G5

1/4 NF pln type 5

1шт.

5

400930R1

BRACKET, governor spring

1шт.

Not included in the governor assembly.

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

367660R1

BOLT,Hex, 1/2" - 20 x 1.19"

ADJUSTER, governor spring

1шт.

Not included in the governor assembly.

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/4-28 hex jam

1шт.

7

367740R1

PIN

RETAINER, governor spring

1шт.

Not included in the governor assembly.

1шт.

8

376592R2

SPRING

governor

1шт.

Not included in the governor assembly.

1шт.

9

378130R91

LEVER

AND ROCKSHAFT ASSY, governor

1шт.

10

361123R91

OIL SEAL

OIL SEAL, governor rockshaft

1шт.

11

369593R1

BUSHING

governor

1шт.

12

369594R1

BUSHING

governor

2шт.

13

172630

PLUG, 11/16 dia expansion

1шт.

14

367651R31

HOUSING ASSY, governor, consists of, (1) bearing (NSS), (2) bearing (NSS), (1) housing (NSS), (1) nut 114492, (1) oil seal 361123R91, (1) plug 172530, (1) screw 127842

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-NF pln jam type 5

1шт.

127842

YOKE

SCREW, 1/4 NF x 1-1/2 pln r/hds mach

1шт.

NLS

NO LONGER SERVICED

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

367669R1

GASKET

governor housing

1шт.

Not included in the governor assembly.

1шт.

16

367653R1

FORK

governor thrust

1шт.

17

368938R1

SET SCREW,Hdls Hex Skt, 1/4" - 28 x 5/16", Cup Pt

governor thrust for set

1шт.

18

393405R91

THRUST BEARING,11.07mm ID x 25.4mm OD x 11.13mm W

ASSY, governor thrust ball, also order sleeve, 387878R1 for C-263 engines w/serial number, Serial Range: 501-6760

1шт.

19

251460R1

RING, SNAP

RING, governor sleeve stop, C-263 engines w/serial numbers, Serial Range: 501-6760

1шт.

20

3367741R1

WEIGHT, governor

2шт.

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, , ESNA 1/4" x 1 3/8", Slotted

2шт.

21

387878R91

SLEEVE, governor thrust, also order bearing 393405R91 for C-263 engines w/serial numbers, Serial Range: 501-6760

1шт.

22

369477R1

RING

snap

1шт.

23

367726R1

CARRIER

governor weight

1шт.

24

281907C1

SNAP RING,1.438", Int, #143

Ring, Snap, , governor shaft brg 1.438", Int, #143

1шт.

25

ST552

BALL BEARING,12mm ID x 37mm OD x 12mm W

governor shaft

1шт.

26

367666R1

RETAINER, governor bearing

1шт.

27

367665R1

SHAFT

governor

1шт.

28

452560

KEY, no. 211 Woodruff

1шт.

864337R1

NUT, 7/16-20 hex-lock

1шт.

30

368939R93

PINION

GEAR AND WEIGHT ASSY, governor

1шт.

31

374795R1

VALVE SPRING

SPRING, bumper

1шт.

386013R91

SERVICE KIT

PACKAGE, governor overhaul

1шт.
